Compu-aire MINI-TEMP PLUS Installation, Operation & Maintenance Instructions Manual page 31

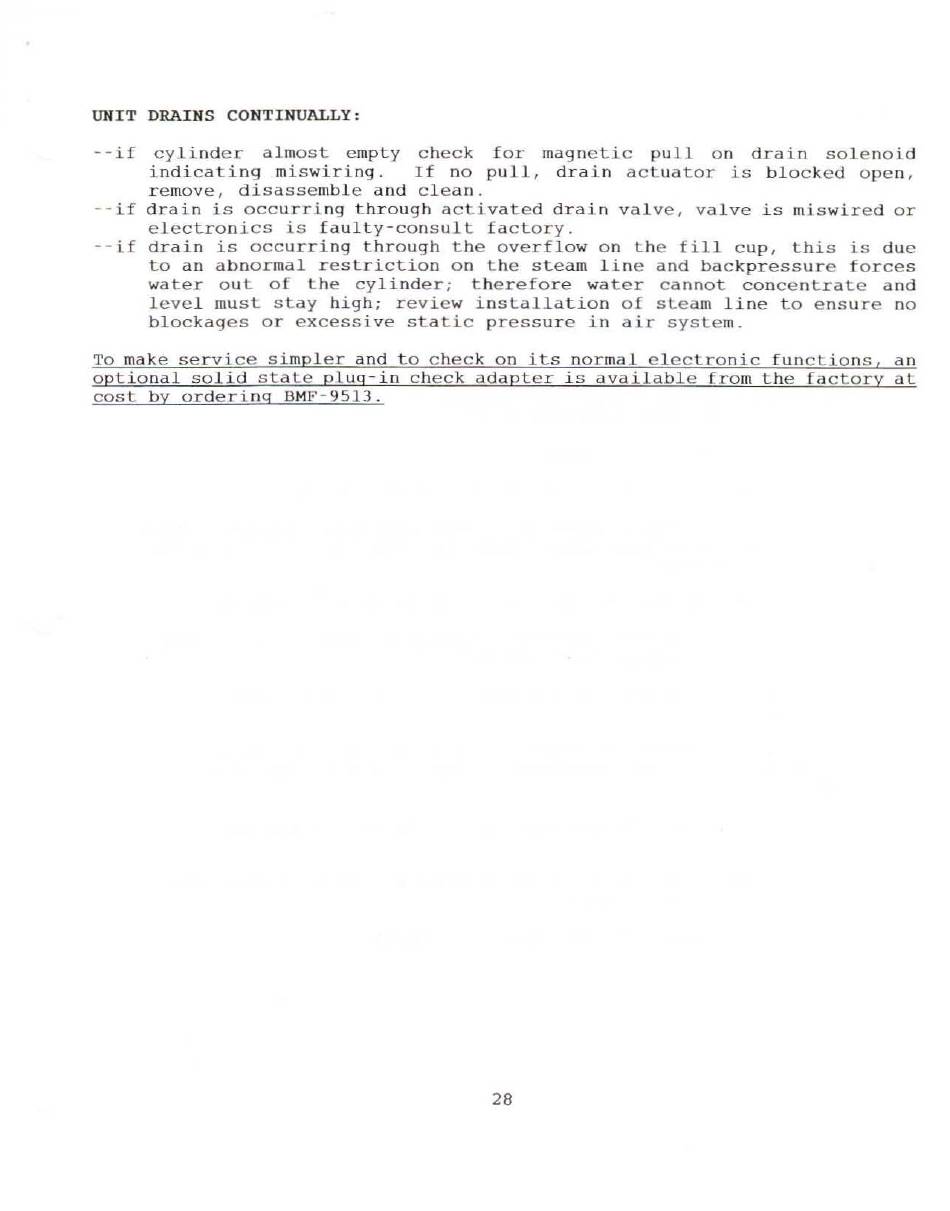

UNIT DRAINS CONTI NUALLY:
- - if
cylinder almost e mpty check for magnetic pull o n drain solenoid
indicating miswiring. If no pull, drain actuator is blocked ope n ,
remove, di sassemble and clean.
-- if
d rain is occurring through activated dra i n valve, va lve
is
mi swired or
electronics is faulty-consult factory.
-- if
drain is occ urring through t he overflow o n t he fill cup, this
is
due
to an abnormal restriction on the steam lin e and backpressure forces
water out of the cy linder; therefore water cannot concentrate a nd
level mu st stay high ; review installa tion of steam line to
ensu~e
no
blockages or excessive static pressure in air system.
']'0 make service si mpl er and to c hec k o n its norma l electro nic functions, an
optio nal solid state plug-in c hec k adapter is uvailable from the factory at
cost by ordering BMF'-9513.
28
