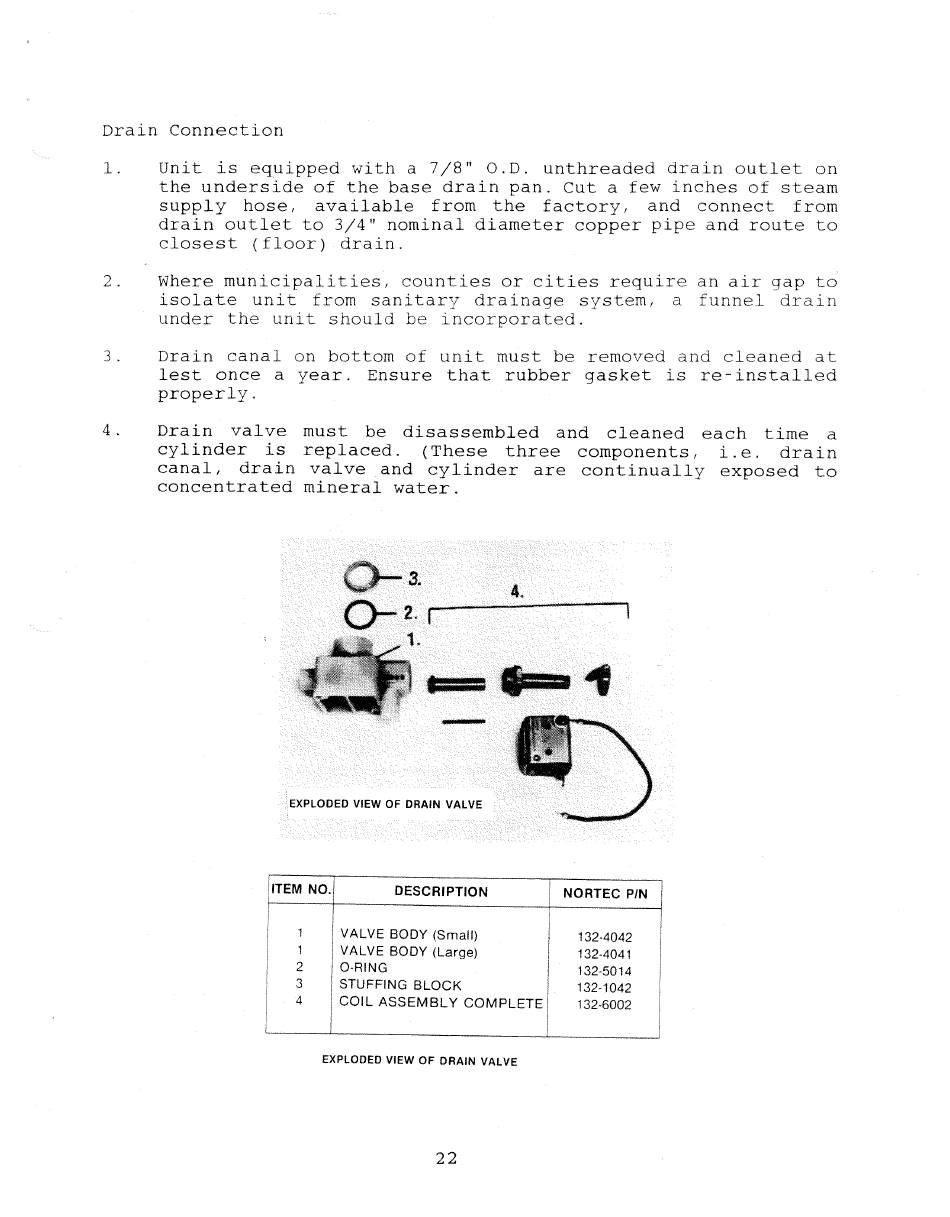

Drain Connection
1. Unit is equipped with a 7/8"
D.D.
unthreaded drain outlet on
the underside of the base drain pan. Cut a few inches of stearn
supply hose, available from the factory, and connect from
drain outlet to 3/4" nominal diameter copper pipe and route to
closest (floor) drain.
2. Where municipalities, counties or cities require an air gap to
isolate unit from sanitary drainage system, a funnel drain
under the unit should be incorporated.
3. Drain canal on bottom of unit must be removed and cleaned at
lest once a year. Ensure that rubber gasket is re-installed
properly.
4. Drain valve must be disassembled and cleaned each time a
cylinder is replaced. (These three components, i. e. drain
canal, drain valve and cylinder are continually exposed to
concentrated mineral water.
3.
0-
2
.1
1.
•
4.
-
EXPLODED VIEW OF DRAIN VALVE
lITEM NO.
DESCRIPTION
1
1
2
3
4
VALVE BODY (Small)
VALVE BODY (Large)
I
O·RING
I
STUFFING BLOCK
I'
I
COIL ASSEMBLY COMPLETE
I
EXPLODED VIEW OF DRAIN VALVE
22
1
NORTEC PIN
132·4042
132·4041
132·5014
132·1042
132·6002
