4.2.5 Display Navigation

Navigation through display screens is done using the Up, Down, and Multi-Function
buttons. The settings screen is shown in the example below (
Figure 6). The scroll bar on the side of the display screen indicates there are more
settings available on another page.

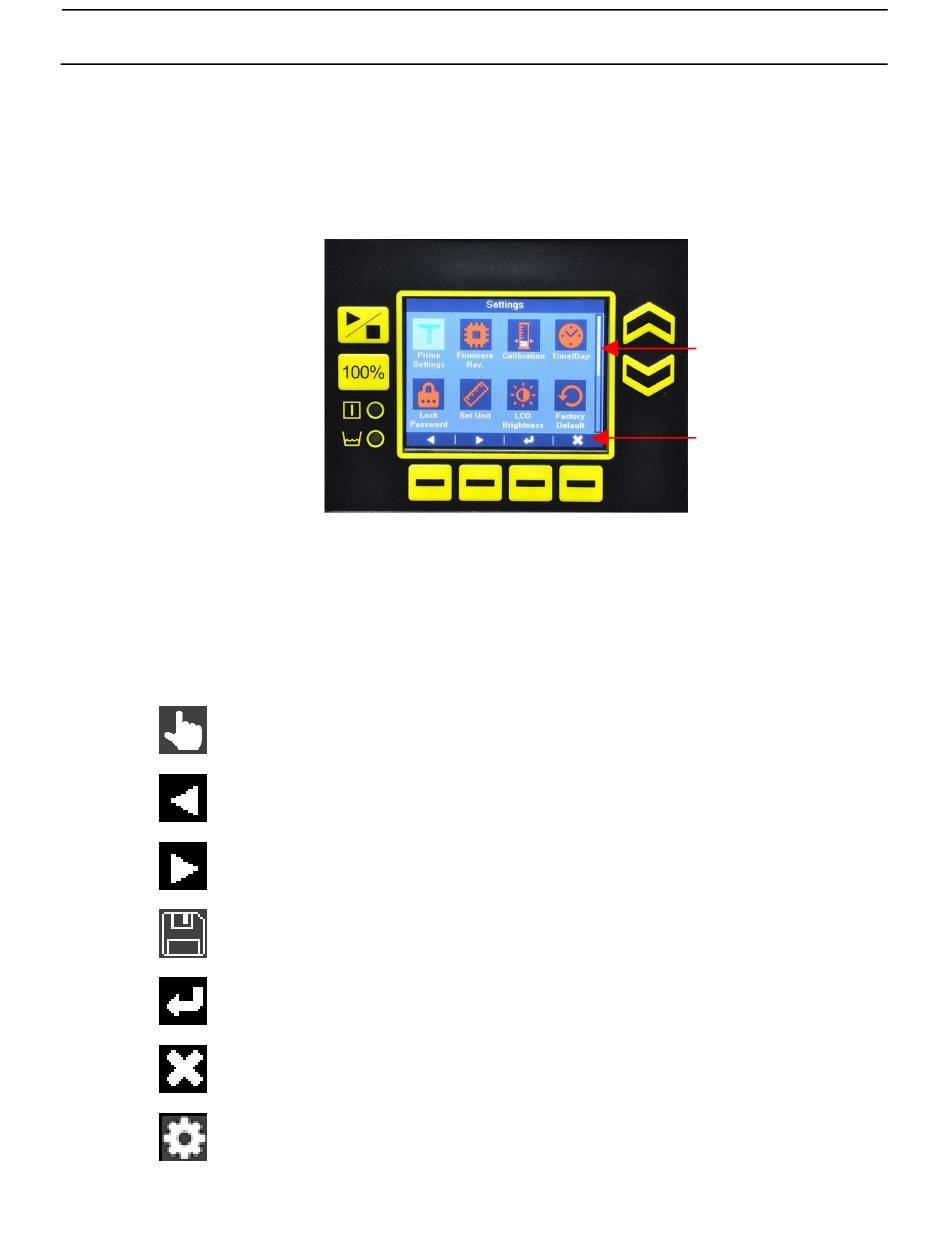

Figure 6: Settings

4.2.6 Icons

Table 3 shows the function of display screen icons.
Table 3: Pump Icons
Manual mode (other modes not available on Manual Control pumps)
Left
Right
Save
Enter
Exit
Settings
14
OPERATION
Scroll Bar
Multi-Function Icons
