Installation and Operating Instructions | idOil-20
3.3.2.
Dimensions idOil-LIQ high liquid level sensor

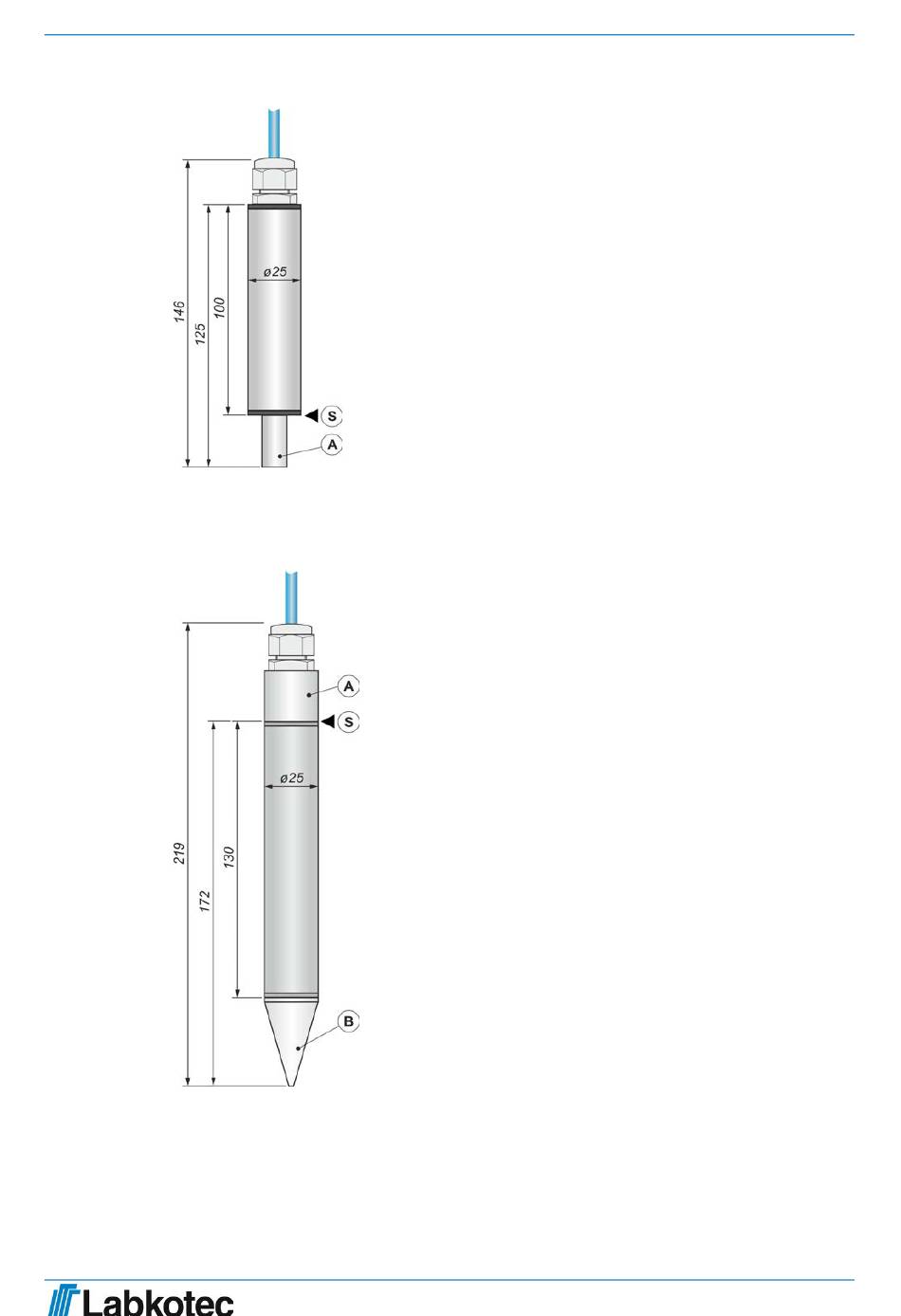

Figure 3. High liquid level sensor idOil-LIQ – structure and dimensions (mm)
3.3.3.
Dimensions of the idOil-OIL oil sensor
Figure 4. Oil sensor idOil-OIL – structure and dimensions (mm)
A Sensor's sensing element
S Alarm switching point
A Measuring electrode
B Reference electrode
S Alarm switching point
9/34
DOC001600-EN-5
