Introduction
This user manual details the GS-BT2416C2DB.xxx which is a Bluetooth Class 2 evaluation
board for GS-BT2416C2.H and GS-BT2416C2.AT1 Bluetooth modules including an RF
antenna. The suffix xxx identifies the firmware release. There is no suffix for HCI
commands and AT1 is the suffix for AT commands.
The GS-BT2416C2DB is a board with downloaded FW which enables the user to interface
the Bluetooth module with HCI commands.
The GS-BT2416C2DBAT1 is a board with downloaded FW which enables the user to create
a Bluetooth link with simple AT commands. AT commands are sent by means of the serial
line which is accessible by the DB9 connector.
The GS-BT2416C2DB.xxx board can be supplied by an external 5 V DC source or via the
USB port.
Features
●
Bluetooth V1.2 board
●
Serial interface on DB9 connector
●
USB connection
●
PCB antenna on board
●
Single 5 V supply voltage
●
CE compliant
●
FCC compliant
●
FCC ID: S9N16C2

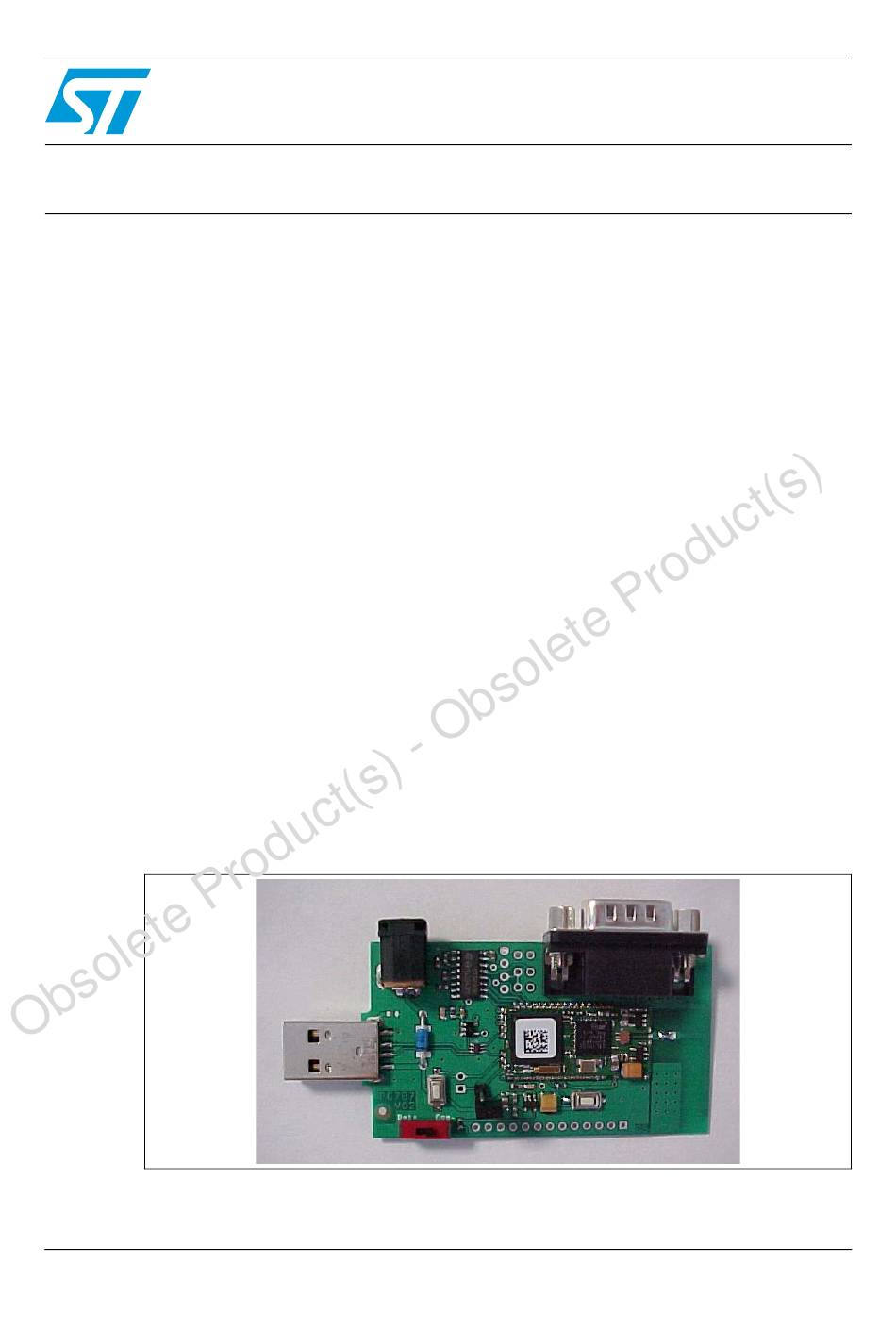

Figure 1.
October 2007
GS-BT2416C2DB and GS-BT2416C2DBAT1
GS-BT2416C2DB.xxx board
Bluetooth class 2 evaluation boards
Rev 1
UM0472
User manual
www.st.com
1/19
Advertisement
Table of Contents
Related Manuals for ST GS-BT2416C2DBAT1
Summary of Contents for ST GS-BT2416C2DBAT1
- Page 1 The GS-BT2416C2DB is a board with downloaded FW which enables the user to interface the Bluetooth module with HCI commands. The GS-BT2416C2DBAT1 is a board with downloaded FW which enables the user to create a Bluetooth link with simple AT commands. AT commands are sent by means of the serial line which is accessible by the DB9 connector.
-
Page 2: Table Of Contents
Contents UM0472 Contents Recommended operating conditions ......3 I/O connections ..........3 Board layout . -
Page 3: Recommended Operating Conditions
UM0472 Recommended operating conditions Recommended operating conditions Table 1. Recommended operating conditions Symbol Parameter Conditions Unit Board supply voltage -20°C < T < 70°C Tstg Operating ambient temperature °C I/O connections Table 2. Board connections Description Boot signal - If connected to GND, the module can download – see also JP1 Reset signal - A low level on this pin forces the module to reset state - see also S3 USB Port When the USB port is connected, the 5 V USB is used (by the 3.3 V regulator) to supply the BT module... - Page 4 I/O connections UM0472 Table 2. Board connections (continued) Description Boot If connected to GND the module can download DB9 connector connection – see Figure 3: Board schematic on page 6 DB9 connector connection – see Figure 3: Board schematic on page 6 DB9 connector connection –...
-
Page 5: Board Layout
UM0472 Board layout Board layout Figure 2. Board component layout 5/19... -
Page 6: Board Schematic
Board schematic UM0472 Board schematic Figure 3. Board schematic 6/19... -
Page 7: Downloading
UM0472 Downloading Downloading The user has the possibility to download his own file to the GS-BT2416C2DB: ● connect the board to a PC using an RS232 cable connected to COM1 / COM2 ● put a jumper on JP1 (Boot pin to low level) ●... -
Page 8: Certifications
Certifications UM0472 Certifications Measurements have been performed in accordance with (report available on request): ● EN 300 328 V 1.6.1 (2004-11): "Electromagnetic compatibility and radio spectrum Matters (ERM); Wideband Transmission Systems; Data transmission equipment operating in the 2.4GHZ ISM band and using wideband modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE directive"... -
Page 9: Fcc Statement
UM0472 Certifications This board has the following FCC ID: S9N16C2. Figure 5. FCC ID position 6.2.1 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. -
Page 10: Label Instructions
Certifications UM0472 6.2.2 Label instructions ● Module type: Bluetooth class 2 board GS-BT2416C2DB.xxx (GS-BT2416C2.H or GS-BT2416C2.AT1 module + PC 787 carrier board) ● FCC-ID: S9N16C2 The purpose of this section is to inform you how to specify the FCC ID of our Bluetooth board GS-BT2416C2DB.xxx on your final product. -
Page 11: Special Requirements For Modular Application
UM0472 Special requirements for modular application Special requirements for modular application The modular transmitter fulfills the following requirements: The modular transmitter must have its own RF shielding: – The RF module fulfills the emission requirements of the FCC rules without additional shielding. -
Page 12: At Commands Appendix
Bluetooth GS-BT2416C2DBAT1 evaluation boards in a Serial line /Cable replacement application. (This connection example is also given in the GS-BT2416C2.AT1 datasheet, Appendix A) Setup & connect Two PCs and two GS-BT2416C2DBAT1 boards are needed to perform the connection. Figure 7. Basic setup 12/19... -
Page 13: Steps To Connect
(Please refer to the GS-BT2416C2.AT1 datasheet Appendix A, for the meaning of the AT commands). ● Designate a GS-BT2416C2DBAT1 board to be used as "Client" and it has the address 0080E1000001. Hereafter this board will be referred to as "Client" ●... - Page 14 At this point the connection is established and GPIO1 (indicating the connection status) on both Client and Server boards becomes high. On the GS-BT2416C2DBAT1 board an LED is connected to GPIO1 and therefore the connection is also shown by an LED on.
-
Page 15: Macro Instructions
UM0472 AT commands appendix ● Disconnection To disconnect, the Client has to put its GPIO3 LOW (Command mode) (changing from high to low on GPIO3 appears on the Client PC screen as +READY) and sends the command: AT+BTDISCONNECT The result is the disconnection of the link Client / Server, and GPIO1 on both Client and Server boards returns to low (the LEDs go off). -
Page 16: Module Bt Address
Each module has its own address which identifies the module itself in the network. The above examples were used with addresses 0080E1000001 and 0080E1000002. Modules on the GS-BT2416C2DBAT1 board could have different addresses. Before starting to send commands, the module address can be found with the command AT+BTSETTINGS=? which shows the relevant information of the module including the BT address. -
Page 17: Point-To-Point Connection
UM0472 AT commands appendix Point-to-point connection Modules with AT commands firmware can only perform point-to-point connections. Only one connection can be activated at once. A module can be connected to several other modules, but it has to disconnect from the previous connection before activating a new one. -
Page 18: Revision History
Revision history UM0472 Revision history Table 7. Document revision history Date Revision Changes 22-Oct-2007 Initial release 18/19... - Page 19 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
