Eaton Cooper Power Series Installation Instructions Manual
Cleer loadbreak standoff bushing, loadbreak apparatus connectors
Hide thumbs
Also See for Cooper Power Series:
- Installation, operation and maintenance manual (189 pages) ,
- Installation, operation and maintenance instructions (128 pages) ,
- Manual (52 pages)
Related Manuals for Eaton Cooper Power Series
Summary of Contents for Eaton Cooper Power Series
- Page 1 COOPER POWER Loadbreak Apparatus Connectors SERIES Effective March 2016 MN650021EN Supersedes S600-100-3 March 2012 600 A 15 and 25 kV class Cleer loadbreak standoff bushing installation instructions...
- Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other- wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to damage or...
-
Page 3: Table Of Contents
Contents SAFETY INFORMATION Safety Information ................iv PRODUCT INFORMATION Introduction . -
Page 4: Safety Information
FOR LIFE FOR LIFE Eaton meets or exceeds all applicable industry standards relating to product safety in its Cooper Power™ series products. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing, and service. -
Page 5: Product Information

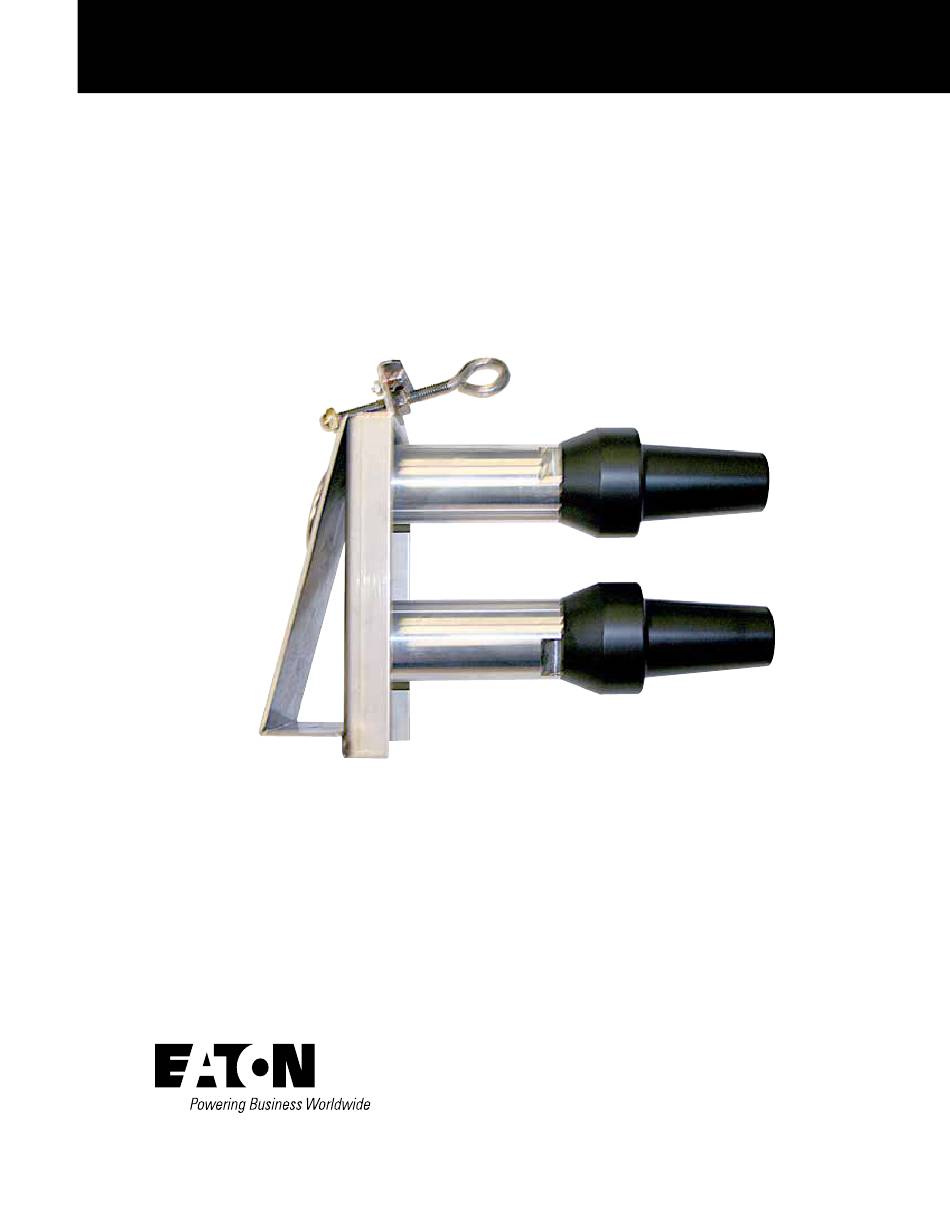

Product information Introduction Eaton's Cooper Power™ series 600 A, 15 and 25 kV Class Cleer™ loadbreak standoff bushing meets the applicable requirements of IEEE Std 386™ standard, "Separable Insulated Connector Systems" and provides double interfaces for temporarily parking its Cooper Power series Cleer loadbreak connector in sectionalizing cabinets and in underground vaults. -
Page 6: Installation Procedure
Installation procedure Step 2 Clean and lubricate Clean interface surfaces of standoff bushing and lubricate • Equipment required with lubricant supplied or an Eaton approved equivalent. Cleer standoff bushing assembly kit including: • Step 3 Standoff bushing • Attach ground lead... - Page 7 This page is intentionally left blank. CLEER LOADBREAK STANDOFF BUSHING INSTALLATION INSTRUCTIONS MN650021EN March 2016...
- Page 8 Eaton.com/cooperpowerseries © 2016 Eaton All Rights Reserved Eaton is a registered trademark. Printed in USA For Eaton's Cooper Power series product Publication No. MN650021EN Rev 00 information call 1-877-277-4636 or visit: All trademarks are property www.eaton.com/cooperpowerseries. (Replaces S6001003 Rev 00)
