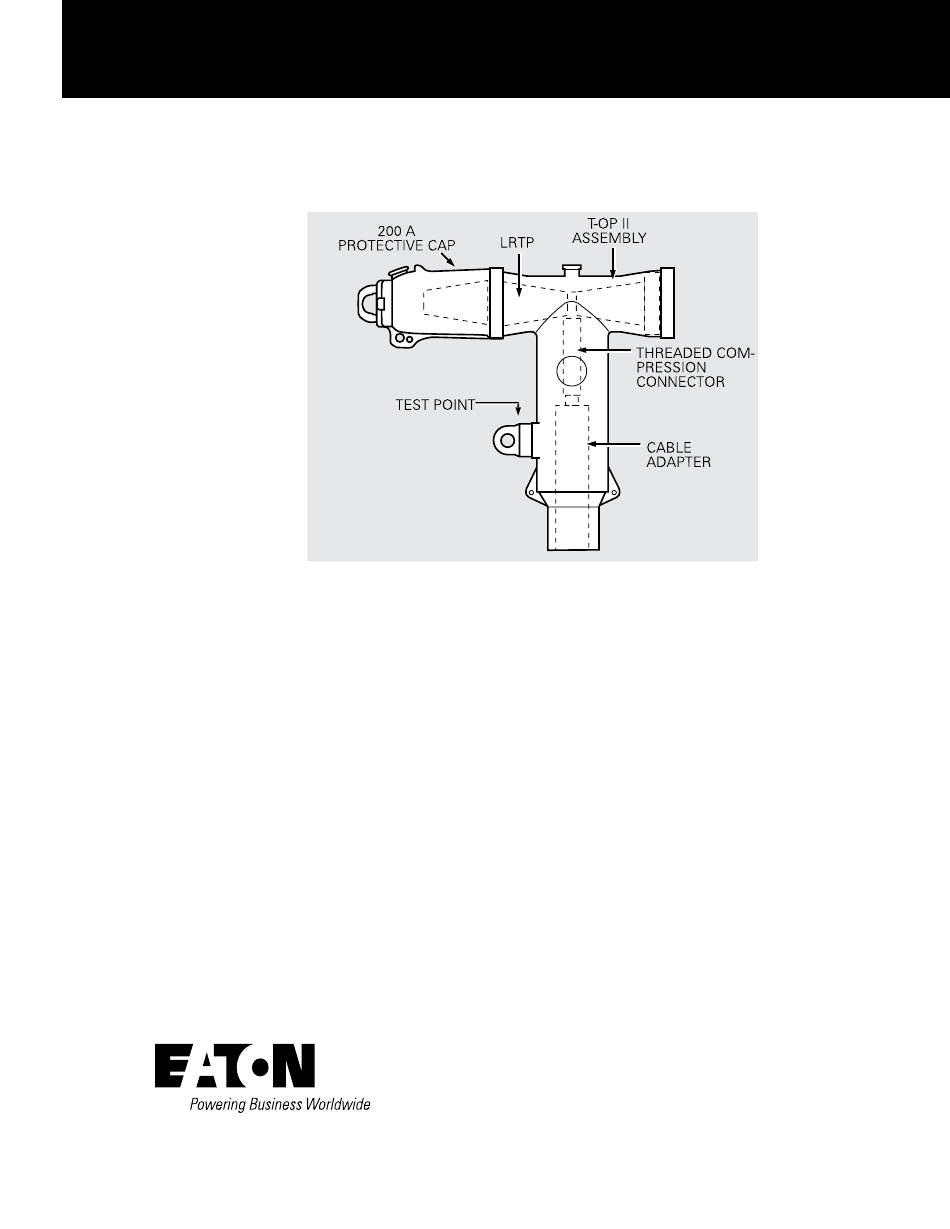

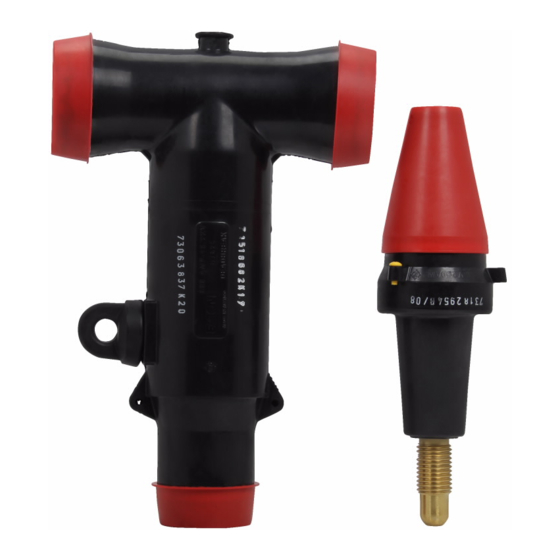

- Page 1 COOPER POWER Deadbreak Apparatus Connectors SERIES Effective May 2017 MN650048EN Supersedes April 2008 (S600-12-3) 600 A 15/25 kV class T-OP II connector assembly installation instructions...
- Page 2 CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
-
Page 3: Table Of Contents
Contents DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I SAFETY FOR LIFE . -
Page 4: Safety For Life
FOR LIFE FOR LIFE Eaton’s Cooper Power series products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing and service. -
Page 5: Product Information
Introduction Handling and storage Eaton’s Cooper Power series 600 A 15/25 kV Class T-OP Be careful during handling and storage of the T-OP II II Deadbreak Connectors are used to terminate high- Deadbreak Connector to minimize the possibility of damage. -
Page 6: Installation Instructions
UniShield ) use ® T-OP II Connector Assembly Kit including: ● ● Eaton’s Cooper Power series SA series adapter kit with T-body the same cutback dimensions as concentric neutral below. ● ● If another manufacturer’s metallic shield adapter is used, Cable Adapter ●... - Page 7 600 A 15/25 kV Class T-OP II connector assembly installation instructions Step 6 TAPE MARKER CABLE CONDUCTOR Install DT625 T-Body CA625 Lubricate entrance of T-body and outside of cable adapter. ● ● " (111 mm) - 4 " (119 mm) Push T-body onto cable adapter until the compression ●...
-
Page 8: Install T-Op Ii Assembly Onto Apparatus Bushing
600 A 15/25 kV Class T-OP II connector assembly installation instructions Step 9 Remove alignment segment by applying pressure to the ● ● T-Wrench to separate the alignment segment from the Install the T-OP II assembly on the apparatus bushing LRTP . - Page 9 600 A 15/25 kV Class T-OP II connector assembly installation instructions 200 A PROTECTIVE T-OP II LRTP 200 A ASSEMBL Y INTERFACE CLEAN LUBRICATE Figure 12 . Line illustration of protective cap installation Step 11 Ground system. (Refer to figure 13.) Connect tie-off tabs of LRTP and T-body with an ●...
- Page 10 600 A 15/25 kV Class T-OP II connector assembly installation instructions This page intentionally left blank. INSTALLATION INSTRUCTIONS MN650048EN May 2017...
- Page 11 600 A 15/25 kV Class T-OP II connector assembly installation instructions This page intentionally left blank. INSTALLATION INSTRUCTIONS MN650048EN May 2017...
- Page 12 2300 Badger Drive Waukesha, WI 53188 United States Eaton.com/cooperpowerseries © 2017 Eaton All Rights Reserved Eaton is a registered trademark. For Eaton’s Cooper Power series product Printed in USA information Publication No. MN650048EN call 1-877-277-4636 or visit: All trademarks are property www.eaton.com/cooperpowerseries.
