Eaton COOPER POWER Series Installation Instructions Manual
200 a, 15 kv and 25 kv class elbow
Hide thumbs
Also See for COOPER POWER Series:
- Installation, operation and maintenance manual (189 pages) ,
- Installation, operation and maintenance instructions (128 pages) ,
- Installation and operation instructions manual (52 pages)
Subscribe to Our Youtube Channel
Related Manuals for Eaton COOPER POWER Series
Summary of Contents for Eaton COOPER POWER Series

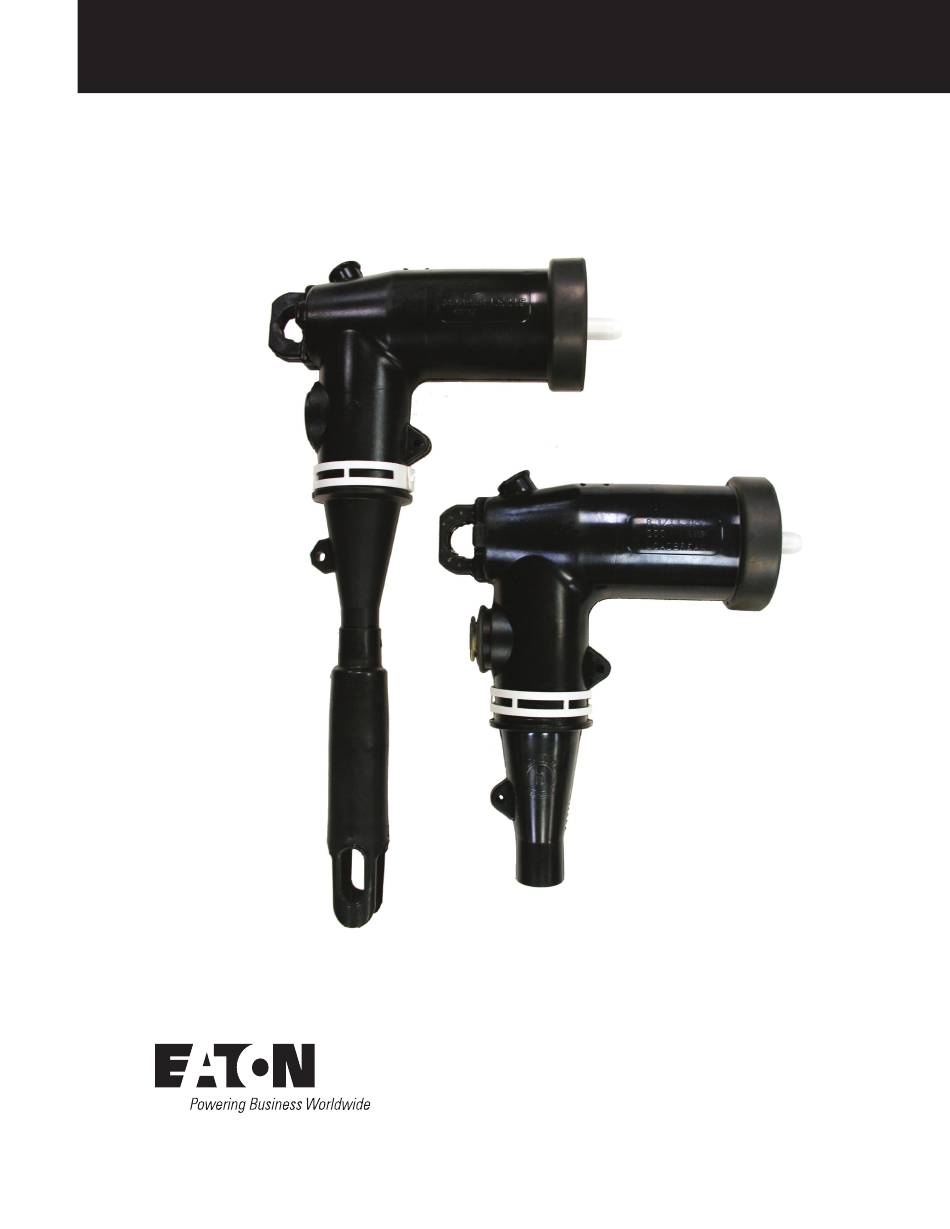

- Page 1 COOPER POWER SERIES Loadbreak connectors 200 A, 15 kV and 25 kV class elbow installation instructions With integral jacket seal for use on tape and wire shielded cable...
-
Page 2: Disclaimer Of Warranties And Limitation Of Liability
CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or otherwise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to... -
Page 3: Table Of Contents
Loadbreak operation ...........8 200 A, 15 kV And 25 kV clAss elbow instAllAtion instructions MN650009EN August 2022 www.eaton.com... -
Page 4: Safety For Life
DANGER the continuous efforts of all Eaton employees involved in HAZARDOUS VOLTAGE. CONTACT WITH HAZARDOUS VOLTAGE product design, manufacture, marketing, and service. WILL CAUSE DEATH OR SEVERE PERSONAL INJURY. FOLLOW ALL... -
Page 5: Product Information
It is in good condition when accepted by the carrier for shipment. Upon receipt of Eaton’s Cooper Power series loadbreak elbow connector is a fully shielded and insulated plug-in termination for a loadbreak elbow connector kit, inspect the connector... -
Page 6: Preparation Of Tape And Wire Shielded Cable
Avoid a tight bend radius at the cable entrance of the elbow that causes the elbow to bend. (See Figure 2.) 200 A, 15 kV And 25 kV clAss elbow instAllAtion instructions MN650009EN August 2022 www.eaton.com... - Page 7 Do not overlap crimps. the conductor. Clean excessive inhibitor grease from coppertop connector by wiping toward threaded eye. Smooth any sharp edges on the crimp connector surface. 200 A, 15 kV And 25 kV clAss elbow instAllAtion instructions MN650009EN August 2022 www.eaton.com...
- Page 8 Step 6 . Position performed ground braid with long end along cable jacket. Wrap braid around the cable metallic/ wire shield and cut off excess (do not overlap braid onto itself). 200 A, 15 kV And 25 kV clAss elbow instAllAtion instructions MN650009EN August 2022 www.eaton.com...
- Page 9 Press in place. application onto the cable jacket 1/4 inch (6 mm) beyond the mastic seal. ote: Do not cover the exposed insulation shield. 200 A, 15 kV And 25 kV clAss elbow instAllAtion instructions MN650009EN August 2022 www.eaton.com...
- Page 10 Place elbow on cable. With a twisting motion, push the elbow onto the cable until the threaded eye of the coppertop connector is aligned with the elbow. 200 A, 15 kV And 25 kV clAss elbow instAllAtion instructions MN650009EN August 2022 www.eaton.com...
- Page 11 737 (4) 737 (4) VC-5 (4) — TU (4) 66R (2) U247 (2) U247 (2) 747 (3) 747 (3) VC-6 (4) CC2C09T CC2C10T Compressed stranding only. 200 A, 15 kV And 25 kV clAss elbow instAllAtion instructions MN650009EN August 2022 www.eaton.com...
-
Page 12: Operating Procedures
Eaton’s Power Systems Division 2300 Badger Drive Waukesha, WI 53188 United States Eaton.com/cooperpowerseries © 2022 Eaton All Rights Reserved Eaton is a registered trademark. Printed in USA Publication No. MN650009EN / Z26653 All trademarks are property August 2022 of their respective owners.
