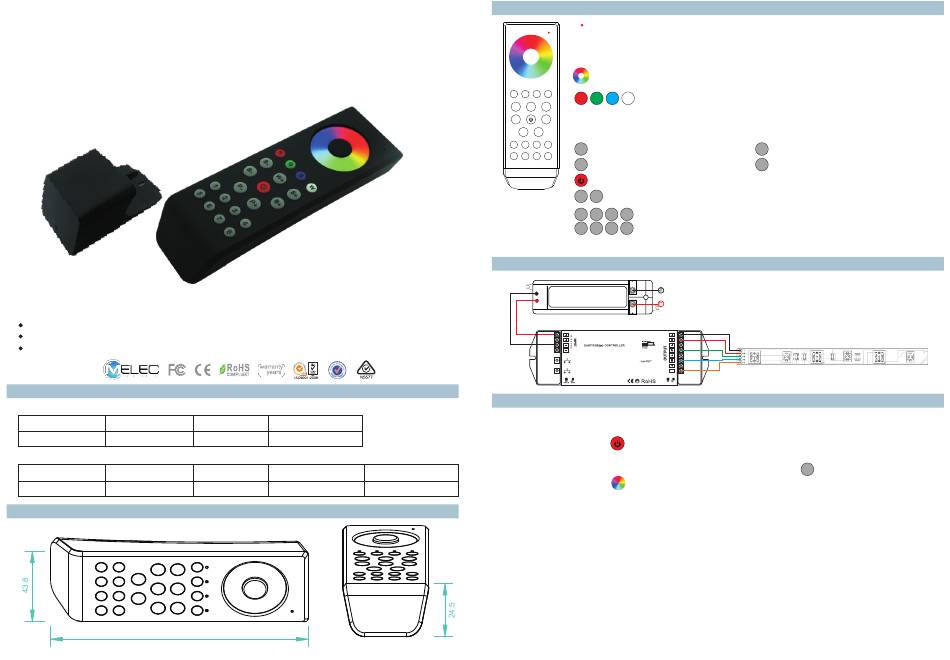

Melec ML-2819T8 Manual

RF RGBW Controller
ML-2819T8 works with ML-1009FAWi
8 zones,long press can turn on/off each zone
Press-button RGBW controller
Receivers work with WIFI-RF convertor to be controlled by smart phone
Parameter
Remote
Operation Voltage
Part No.
ML-2819T8 4.5VDC
Receiver(purchased separately)
Part No. Iuput Voltage
ML-1009FAWi 12-36VDC
Product Size
131.6
5
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz 43.8x131.6x24.5
Current Output
4x5A Constant voltage
4x(60-180)W
Brief introduction of buttons
R G B W
S- W+ S+
B- B+
P- P+
1 2 3 4
5 6 7 8
Wiring diagram
Reset
Switch
Learning
Switch
Operation
1. Do wiring according to connection diagram and install battery into remote control.
2. How to learn&delete ID process?
a. Turn on the remote by .
b. Short press at Learning Key on receiver.
c. Press any zone button(which you desire to control) on remote, for example
Remarks
d.Then touch color wheel.
e.Connected LED light will blink to confirm zone designation.
How to reset to factory default: Long Press Learning Key on receiver for over 5 seconds until connected LED light
flash off,to delete the learned ID, the receiver will be reset to factory default. If you want to learn receiver into
another zone, please follow learning ID process operation 2.
Working status indicator, the sender is in dormant status when the indicator is off. The
sender is under working when the indicator is flashing rapidly. If the indicator continues
flashing at the frequency of 1 second, it indicates that the sender batteries are low and
needs replacement new batteries.
Touch wheel for selecting R/G/B colors
R G B W
Short press: switch on/off each channel;
Long press: dim up/down each channel
Note: If you press R, then press G, then it is mix color of R and G. If you want
to get G color directly, please press R to switch off of R first. Then press G.
S- Speed down when color is changing
Brightness down
B-
Turn ON/OFF
P- P+ Build-in 10 Dynamic modes,P- is previous mode,P+ is next mode.
1 2 3 4 are zone numbers,long press switch on/off each zone.Short press is to choose a
zone.To synchronize several zones,short press 2 or more buttons one after another.
5 6 7 8
Power Supply
110V-230VAC
12-36VDC
ML-1009FAWi
PRI:
Uin=12-36VDC
Iin=20.5A
SEC:
Uout=4x(12-36)VDC
Iout=4x5A
W
Pout=4x(60-180)W
TEMP RANGE:-20℃-+50℃
S C
S+ Speed up when color is changing
Brightness up
B+
RGB/W or CDW LED strip
1
.
