Melec Valo ML-2820-US3 Manual

ML-2820-US3

Product information

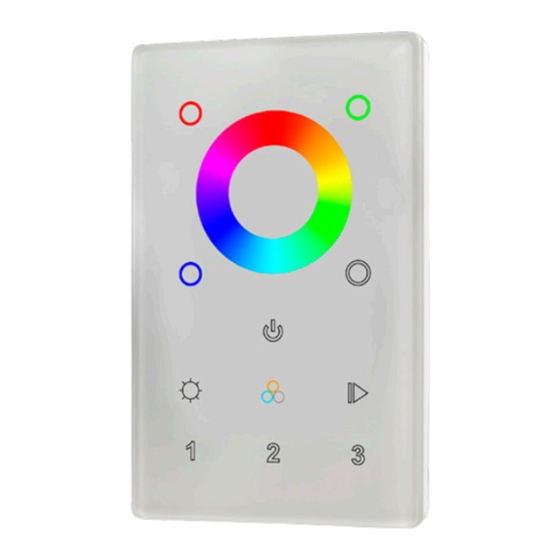

The 2820-US3 glass wall controller from M-Elec allows easier connections without the need for
complicated wiring or connections.
With a simple interface, the ML-2820-US3 allows the user to have 3 separate zones which can be
operated separately or can be synchronized. With 10 pre-set colour sequences and full RGB/W
control, the ML-2820-US3 is both easy to wire and operate.
3

TECHNICAL INFORMATION

Colour control RGBW
Input voltage 100-240-VAC
Operation Frequency 434MHz
Dimensions 120x75x9.1MM
Remarks Touch sensor
Warranty 3 years
Receiver (purchased separately)
PART No. ML-VLC-C5
Colour control CCT, RGBW, RGB+CCT, DIMMING
Input voltage 12-24VDC
Output current 5x4A
Output Power 5x48-96W
Output type 12-24V constant voltage output
Operating temperature -20°C-+50°C
Dimensions 145x46.5x16mm
Warranty 7 years
