RF wireless LED remote controller
Product introduction

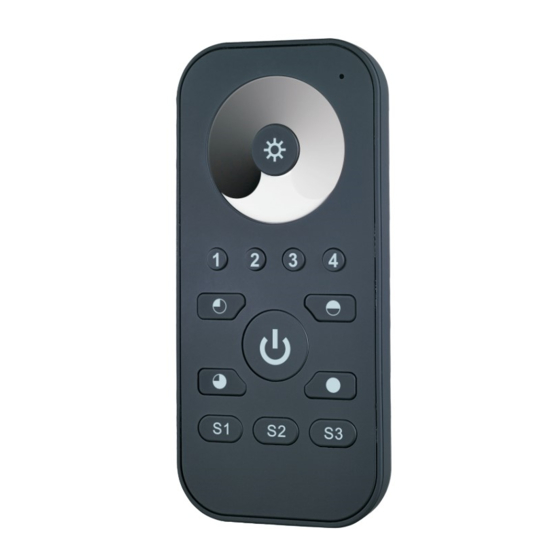

The ML-2819SDIM remote controller has 4 different zones with quick brightness control buttons.
The remote controller can also save up to 3 modes into corresponding buttons ( S1, S2, S3) for each zone.
Quick brightness Wheel for finger control design.
Parameter
Remote
Operation Voltage
Part No.
ML-2819SDIM
4.5VDC
Receiver(purchased separately)
Input Voltage
Part No.
ML-1009FAWi
12-36VDC
Product Size
120.0
ML-2819SDIM
Four zones/areas
Press-button Dimmer
5
ISO9001：2008
Operation
DIMENSIONS
Frequency
ø/h (mm)
55x120x17
434MHz
3 AAA (1.5V) batteries
Current
Output
4x5A
Constant voltage
4x(60-180)W
Brief introduction of buttons
4 zones: each zone can save
3 color or modes
25% Brightness
75% Brightness
Wiring diagram
12V/24V/36V
Power Supply
Constant Voltage
Operation
Learning (matching)
Remarks
a. Do wiring according to connection diagram
b. Wake up the remote control by touching ON/OFF button.
c. Press learning button on receiver.
d. Touch any zone button on remote control.
e. Then touch brightness wheel.
Remarks
f. Connected LED light will blink to confirm zone designation.
Dim wheel
Choose zone number
want, zone 1 and 3 will indicate corresponding brightness as we touched.
Brightness Up & Down Button
Long Press button
switch. For example, the first long press is brightness up, it will be dimmed down when long press again.
Brightness button
S1
S2
S3
Save button
ML-1009FAWi
RF & WiFi Receiver
, for example,
and
, then touch
to dim down/up brightness, the dimming direction will change every time after pressing
Indicator: indicate the state of
remote control
Brightness wheel
50% Brightness
ON/OFF of all zones
100% Brightness
Single Color LED Strip
, choose the brightness you
