Melec Valo ML-2819T8 Quick Start Manual

ML-2819T8
Product information

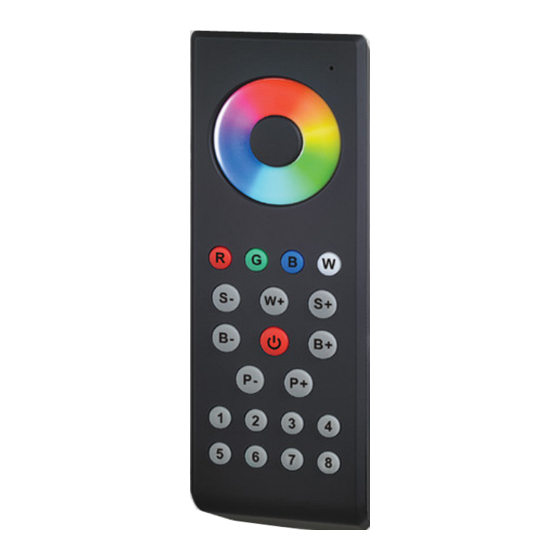

This RGBW wireless remote offers up to 8 zones of RGBW all in 1 remote. Working wirelessly
with the ML-VLC-C5 receiver this remote has full control of all colours individually and allows both
speed and brightness control of the various modes. Supplied with storage cradle.
3
TECHNICAL INFORMATION
Colour control RGB, RGBW, DIMMING
Operation voltage 4.5 VDC
Operation Frequency 434MHz
Dimensions 43.8x131.6x24.5mm
8 zones,long press can turn on/off each zone
Remarks 3x AAA (1.5V) Batteries, RF Wireless control
Press-button RGBW controller
Warranty 3 years
Receivers work with WIFI-RF convertor to be controlled by smart phone
Receiver (purchased separately)
Parameter
PART No. ML-VLC-C5
Colour control CCT, RGBW, RGB+CCT, DIMMING
Remote
Input voltage 12-24VDC
Operation Voltage
Part No.
Output current 5x4A
ML-2819T8
Output Power 5x48-96W
Output type 12-24V constant voltage output
Receiver(purchased separately)
Operating temperature -20°C-+50°C
Part No.
Dimensions 145x46.5x16mm
ML-1009FAWi
Warranty 7 years
Product Size
T. 1300 222 445 | www.melec.com.au
RF RGBW Controller
ML-2819T8 works with ML-1009FAWi
Operation
Frequency
4.5VDC
434MHz
Iuput Voltage
Current
4x5A
12-36VDC
131.6
For further information about our Warranties please go to: melec.com.au/legal/warranties
Data subject to change, please visit our website for up to date specifications: melec.com.au
5
DIMENSIONS
ø/h (mm)
43.8x131.6x24.5
Output
4x(60-180)W
Remarks
Constant voltage
Brief introd
R G B W
S- W+ S+
B- B+
P- P+
1 2 3 4
5 6 7 8
Wiring dia
Operation
1. Do wiring a
2. How to lea
a. Turn o
b. Short p
c. Press
d.Then to
e.Connec
How to re
flash off,t
another z
