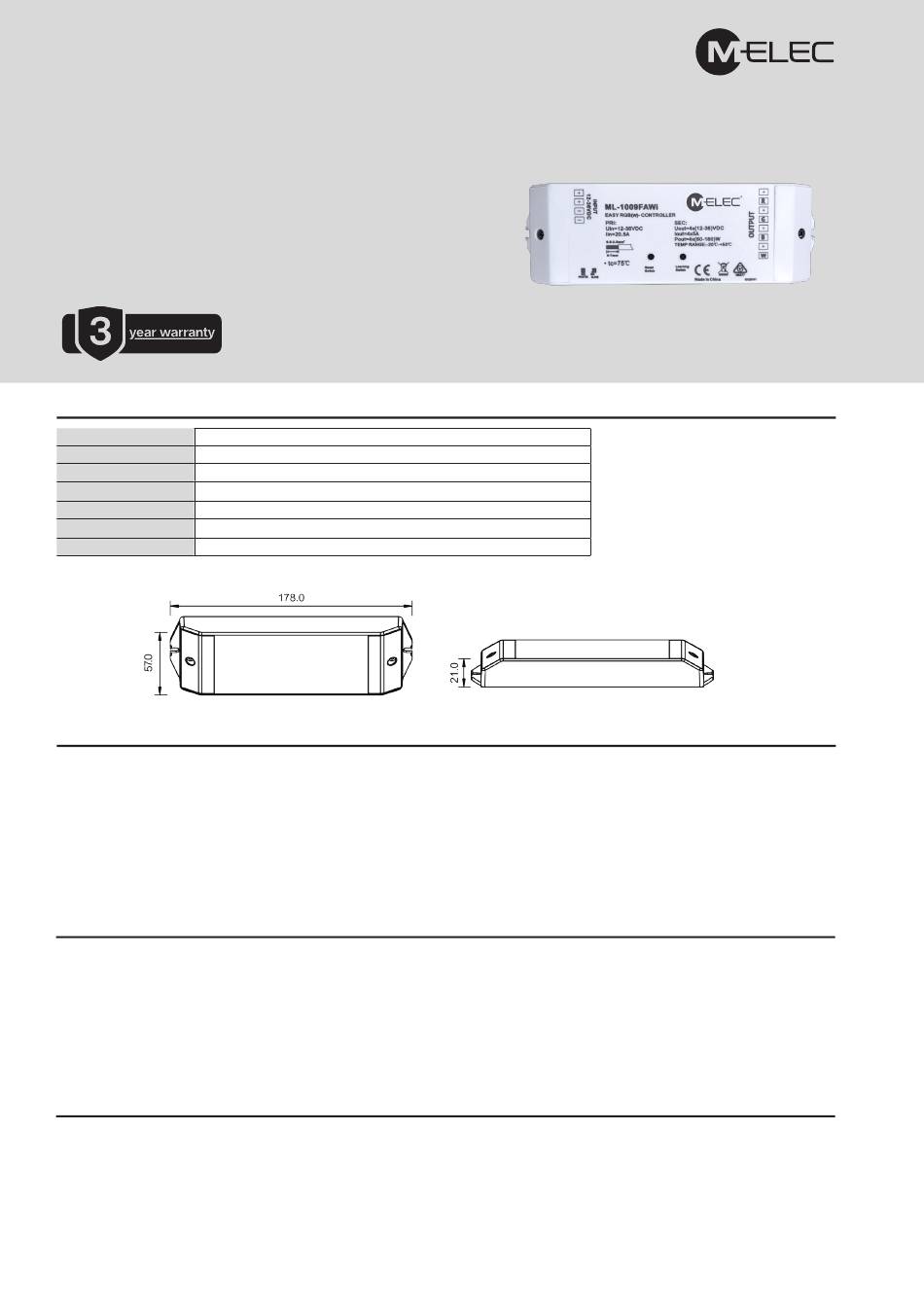

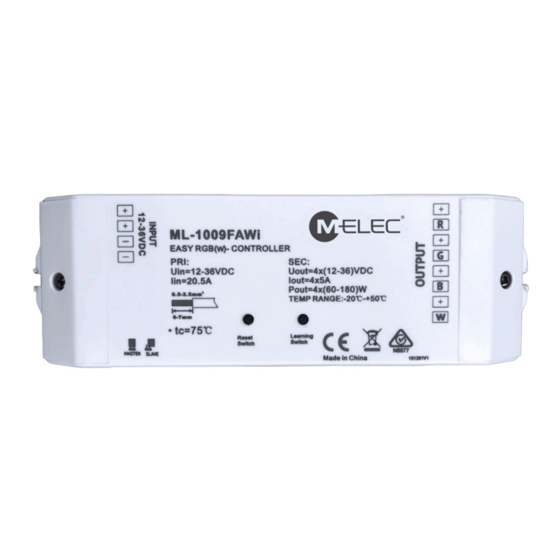

Melec ML-1009FAWI Quick Start Manual

RF Receiver
ML-1009FAWI
This multi-featured RGBW controller works with various remotes and controllers.
With both master and slave modes this wireless receiver saves money on running
cables. The maximum number of controllers utilising the same receiver is 8 and
RGB, RGBW and Hybrid strips can be controlled from the ML-1009FAWI.

TECHNICAL INFORMATION

Colour Control RGB, RGB + White or Hybrid Strip (hybrid requires 5 channels)
Input Voltage 12-36VDC
Output Current 4CH, 5A/CH
Output Power 60-180W per Channel
Output Type Constant Voltage
Dimensions L: 178mm | H: 57mm | D: 21mm
Warranty: 5 Years

SINGLE COLOUR CONTROLLER

1. Connect the LED device to the assigned colour outputs, matching the LED wiring
2. Connect input DC voltage required for LED device 12-36VDC
3. Power on the RF controller by touching the ON/OFF button
4. Press the learning button on the receiver
5. Select & press the zone button on the controller
6. Run your finger around the fade/colour whee
7. The connected LED device will flash to confirm operation has been programmed

MULTI COLOUR CONTROLLER

1. Connect the LED device to the assigned colour outputs, matching the LED wiring
2. Connect input DC voltage required for LED device 12-36VDC (remember if your power supply has
more than 1 output, connect to 1 output and make safe all remaining outputs.
3. Power on the RF controller by touching the ON/OFF button
4. Press the learning button on the receiver
5. Select & press the zone button on the controller
6. Run your finger around the fade/colour wheel
7. The connected LED device will flash to confirm operation has been programmed

NOTES

1. To delete all previous learned remotes, press and hold the learning button down for approximately 5 seconds until the LED device
connected will flash to confirm all programmed controllers have been removed
2. Each ML-1009FAWI receiver can be controlled by up to 8 different compatible RF (radio frequency) remote devices
3. Each remote controller can control unlimited receivers within the radio frequency range
4. Master/Slave option is set via the jumper pin; master is closed and slave is open. Only one master can be assigned to each zone.
5. Hybrid strip requires a 5 channel controller but is usable with this device if only choosing 1 white colour.
