Melec ML-2819S Manual

RF wireless LED remote controller

Product introduction

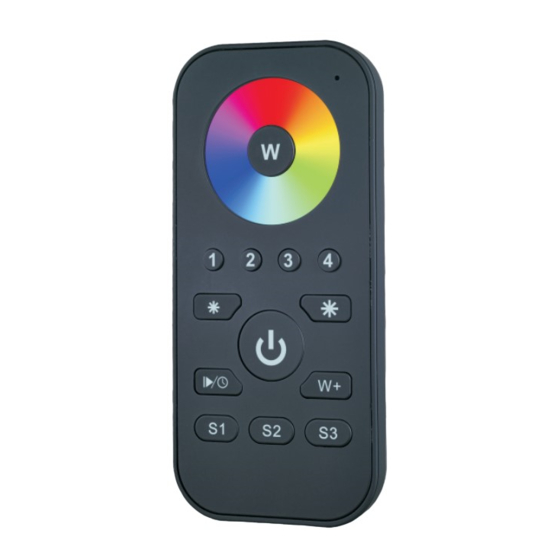

The ML-2819S RGBW remote controller features 4 different zones and 2 quick brightness control buttons.It can
save up to 3 colours or 3 modes into the corresponding buttons (S1, S2, S3) for each zone. The colour can be
easily selected through the Colour Wheel, designed for easy finger control.
Additional option to set the system as RGB 3-channel or RGBW 4-channel output.
Parameter
Remote
Operation Voltage
Part No.
ML-2819S 4.5VDC
Receiver(purchased separately)
Part No. Input Voltage
ML-1009FAWi 12-36VDC

Product Size

120.0
ML-2819S

Four zones/areas

Press-button RGB+W controller

5
ISO9001：2008

Operation

DIMENSIONS
Frequency ø/h (mm)
434MHz 48x140x16
Current Output
4x5A
4x(60-180)W
Brief introduction of buttons
White channel: the 4th channel
4 zones: each zone can save
Brightness: dim down
Running button/Speed button

Wiring diagram

Operation

Learning (matching)

a. Do wiring according to connection diagram
b. Wake up the remote control by touching ON/OFF button.
c. Press learning button on receiver.
Remarks d. Touch any zone button on remote control.
e. Then touch color wheel.
3 AAA (1.5V) batteries
f. Connected LED light will blink to confirm zone designation.
Color wheel
Remarks
Choose zone number
zone 1 and 3 will indicate corresponding color as we touched.
Constant voltage
Brightness Up & Down Button
Short/Long press button
up RGB channels.
"W" channel is separated from RGB channels, so we can only long press button to dimming"W" channel.
Running Mode & Speed Button
a. Short press
one more time, it will enter next mode. There are total 10 build-in modes.
b. Long press
speed down the color moving.
W
3 color or modes
S1 S2
Save button
12V/24V/36V
Power Supply
Constant Voltage
ML-1009FAWi
RF & WiFi Receiver
, for example, and
to dim down brightness of RGB channels, Short/long press
,
mode will run. Press it once, it runs one mode. Press button again, it stops, then press
when mode is running, Fist long press will speed up the color moving, long press again to
Indicator: indicate the state of
remote control
Color wheel
Brightness: dim up
ON/OFF of all zones
W+ ww nw and cw mixed by RGB
S3
RGBW LED Strip
, then touch , choose the color you want,
button to dim
