Installation; Installing The Expansion Card; Connecting To The Network - Danfoss VLT Soft Starter MCD 600 Installation Manual

Installation Guide | DeviceNet Card

2 Installation

2.1 Installing the Expansion Card

Procedure
1. Push a small flat-bladed screwdriver into the slot in the center of the expansion port cover and ease the cover away from the soft
starter.
2. Line up the card with the expansion port.
3. Gently push the card along the guide rails until it clicks into the soft starter.
Example:
1

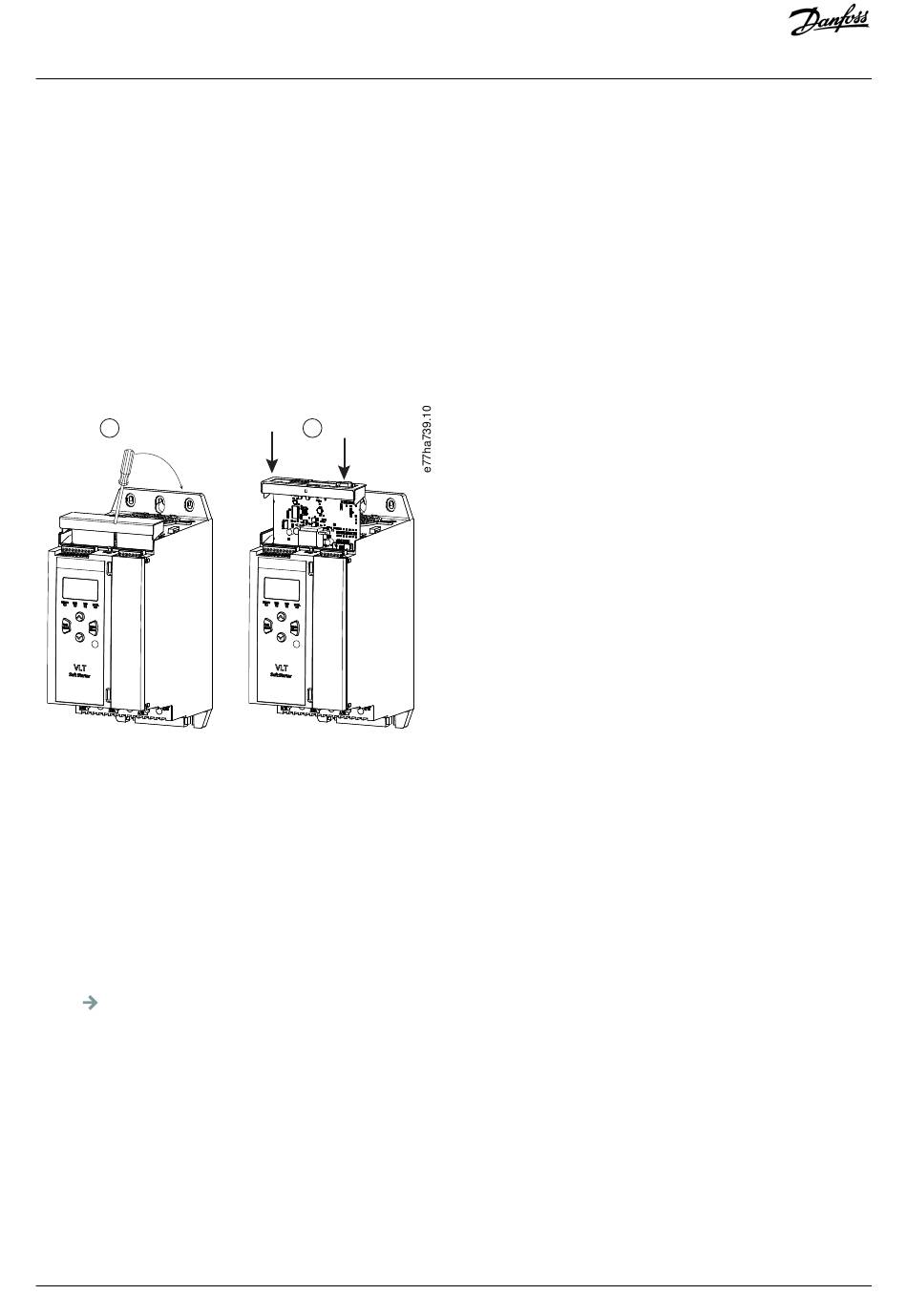

Illustration 1: Installation of the Expansion Cards

2.2 Connecting to the Network

Prerequisites:
The expansion card must be installed in the soft starter.
Procedure
1. Connect field wiring via the 5-way connector plug.
The DeviceNet card is powered via the connector.
Danfoss A/S © 2018.10
2
Installation
AQ277154750780en-000102 / 175R1182 | 5
