2. Block drawing

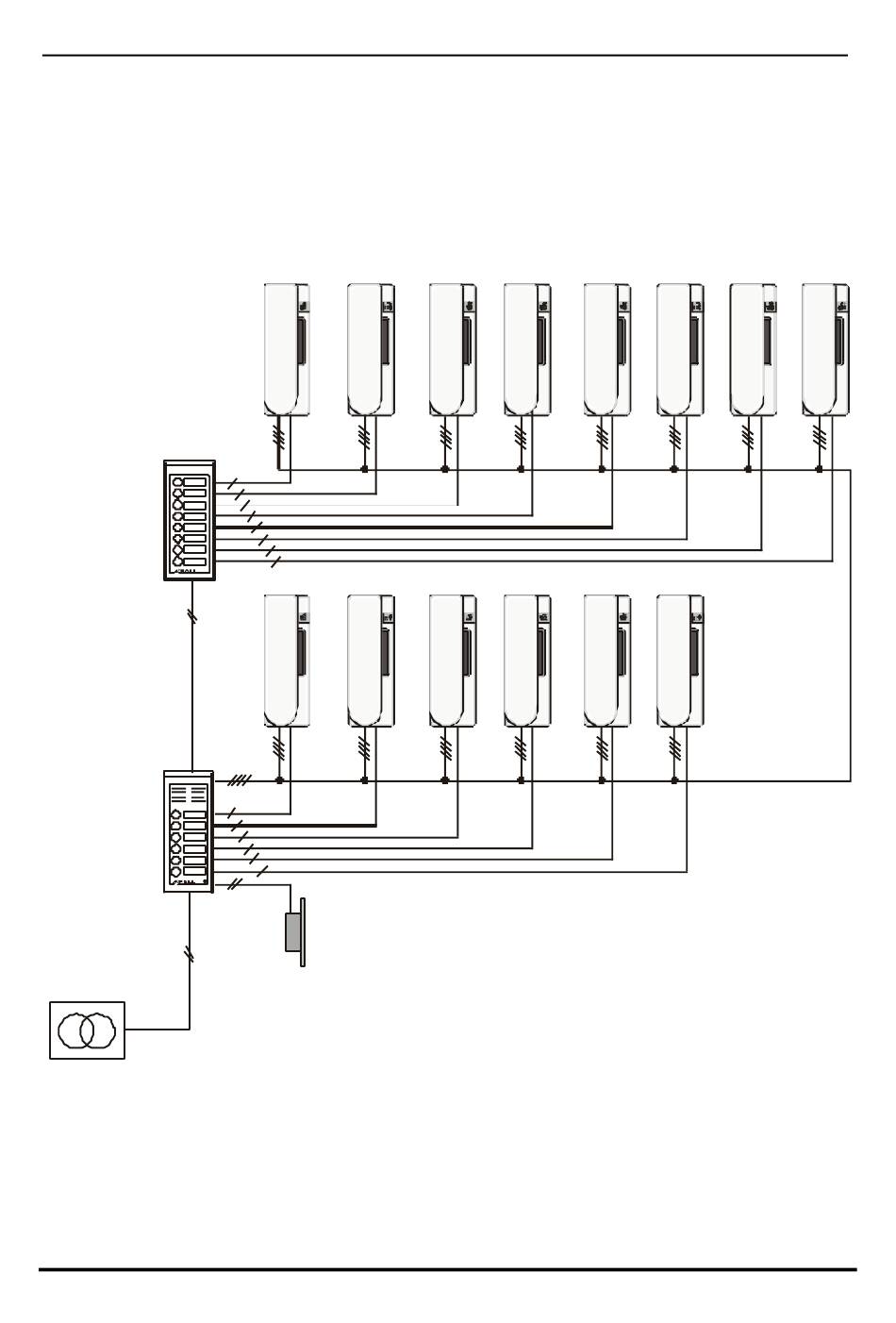

NORMAL CONNECTION ADI-616 AND ADI-608

Axel
Andersson
Axel
Andersson
Axel
Andersson
ADI-608
Beda
Bengtsson
Cesar
Celsing
David
Danielsson
Erik
Erixsson
Fredric
Forsyte
Axel
Andersson
ADI-616
Beda
Bengtsson
Cesar
Celsing
David
Danielsson
Erik
Erixsson
Fredric
Forsyte
Transformer
24V DC
TF-3
Extention to 14 connections
14 x
Handset
DI-651
AXCALL Installation manual V1.3
