Axema AXCALL ADI-611 Projecting And Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

P
r
o
j
e
c
P
r
o
j
e
c
I
n
s
t
a
l
I
n
s
t
a
l
A
X
A
X
A
D
I
-
6
1
A
D
I
-
6
1
t
i
n
g
a
t
i
n
g
a
l
a
t
i
o
n
l
a
t
i
o
n
C
C
1
/
6
1
6
/
1
/
6
1
6
/
n
d
n
d
m
a
n
u
m
a
n
u
A
L
A
L
6
0
8
6
0
8
a
l
a
l
L
L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXCALL ADI-611 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axema AXCALL ADI-611

Summary of Contents for Axema AXCALL ADI-611

  • Page 2: Table Of Contents

    Normal connection ADI-616 and SWU............6 3 pcs DI-611 to 2 pcs SWU cascade connected..........7 Connection of extra buzzer/signal device............8 Connection of extra amplifier/line amplifier............9 3. CONNECTION DIAGRAM............... 10 AXCALL ADI-611, ADI-616................10 AXCALL ADI-608.....................11 AXCALL SWU....................12 4. CONNECTION EXAMPLE..............13 ADI-611 to DI-651.....................13 ADI-616 to DI-651.....................14...

  • Page 3: Introduction

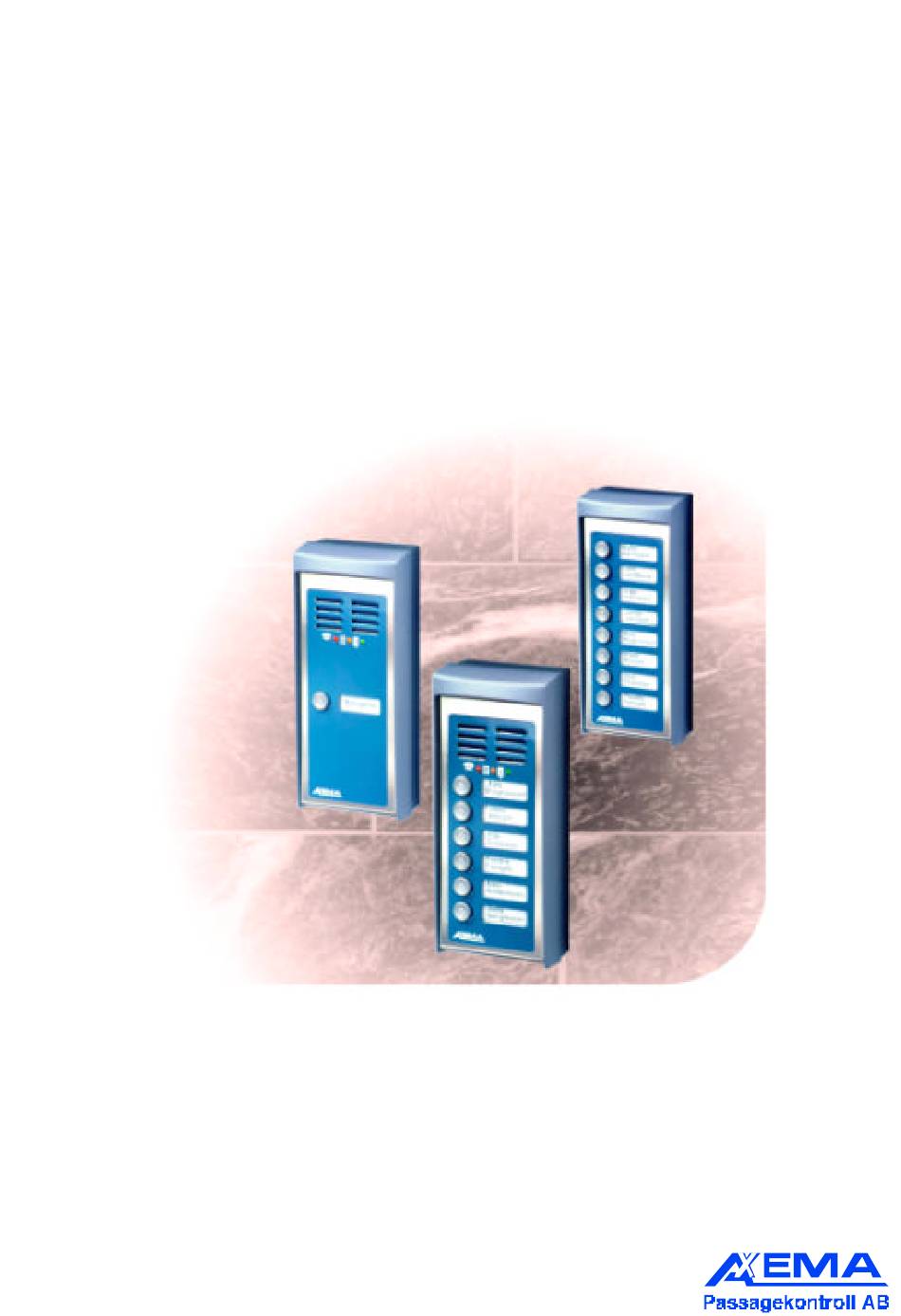

    2. Introduction 1. INTRODUCTION Axcall is an conventional door intercom system, witch means that cables between intercom and handset is needed. The system include 2 different intercom ADI-611 with 1 calling button and ADI-616 with 6 calling buttons, and an extension unit ADI-608 with 8 calling buttons.

  • Page 4: Block Drawing

    2. Block drawing 2. BLOCK DRAWING NORMAL CONNECTION ADI-611 AND ADI-616 Normal installation Handset DI-651 Transformer 24V DC Reception TF-3 ADI-611 Normal installation Handset in parallel to button 6 7 x Handset DI-651 Transformer 24V DC Axel Andersson Beda Bengtsson Cesar Celsing David...

  • Page 5: Security Connected Adi-611 And Adi-616

    2. Block drawing SECURITY CONNECTED ADI-611 AND ADI-616 External opening relay (high security) Handset DI-651 Transformer 24V DC Reception TF-3 Time relay ADI-611 AR-2 External opening relay (high security) Handset DI-651 Transformer 24V DC Axel Andersson Beda Bengtsson Cesar Celsing David Danielsson E r i k...

  • Page 6: Normal Connection Adi-616 And Adi-608

    2. Block drawing NORMAL CONNECTION ADI-616 AND ADI-608 Extention to 14 connections 14 x Handset DI-651 Axel Andersson Axel Andersson Axel Andersson ADI-608 Beda Bengtsson Cesar Celsing David Danielsson Erik Erixsson Fredric Forsyte Axel Andersson ADI-616 Beda Bengtsson Cesar Celsing David Danielsson Erik...

  • Page 7: Normal Connection Adi-616 And Swu

    2. Block drawing NORMAL CONNECTION ADI-616 AND SWU Normal installation using SWU 6 x Handset DI-651 Transformer 24V DC TF-3 Axel Axel Andersson Andersson Beda Beda Bengtsson Bengtsson Cesar Cesar Celsing Celsing David David Danielsson Danielsson Erik Erik Erixsson Erixsson Fredric Fredric Forsyte...

  • Page 8: Pcs Di-611 To 2 Pcs Swu Cascade Connected

    2. Block drawing 3 PCS DI-611 TO 2 PCS SWU CASCADE CONNECTED Normal intallation with 2 SWU cascade connected Handset DI-651 with LED unit DI-655 ENTRE A ENTRE B ENTRE C ENTRE D Transformer 24V DC TF-3 Reception Reception Reception ADI-611 ADI-611 ADI-611...

  • Page 9: Connection Of Extra Buzzer/Signal Device

    2. Block drawing CONNECTION OF EXTRA BUZZER/SIGNAL DEVICE Normal installation using extra buzzer Handset DI-651 and buzzer DI-653-1 Transformer 24V DC Reception TF-3 ADI-611 Normal installation using extra signal device Handset DI-651 AR1 el AR2 Signal device Transformer 24V DC Reception TF-3 ADI-611...

  • Page 10: Connection Of Extra Amplifier/Line Amplifier

    2. Block drawing CONNECTION OF EXTRA AMPLIFIER/LINE AMPLIFIER Installation using amplifier to extra buzzer Handset DI-651 with amplified extra buzzer DI-653-1 Amplifier DI-653-2 Transformer 24V DC Reception TF-3 ADI-611 Installation with amplified buzzer signal Handset DI-651 with line amplifier DI-653-2 Build in amplifier DI-653-2 Transformer...

  • Page 11: Connection Diagram

    3. Drawings 3. CONNECTION DIAGRAM AXCALL ADI-611, ADI-616 Important!!! Note! The strike must have same voltage as the transformer. Note! Connection points for intercom with 1 button (ADI-611). Normally in AC pos. Connection to ADI-608 AC DC Power supply Power supply...

  • Page 12: Axcall Adi-608

    3. Drawings AXCALL ADI-608. Connections to ADI-611,616 Power supply PL1:1 12-24V AC/DC PL1:2 Calling signal in PL3:33 PL3:34 Voltage jumper 12/24V. 25 26 2829 30 3132 Connection to Urmet 1131 Handset. handset. Button 8 CA unit. 8 Button 7 CA unit. 7 Button 6 CA unit.

  • Page 13: Axcall Swu

    3. Drawings AXCALL SWU. Voltage jumper 12/24V. Power supply 12-24V DC CONNECTION NR. Intercom A BUTTON 6 TO INDICATION LED UNIT A BUTTON 5 UNIT BUTTON 4 LED UNIT B BUTTON 3 BUTTON 2 INTERCOM A BUTTON 1 OPEN BUT. EARPHONE MIC.

  • Page 14: Connection Example

    4. Connection example 4. CONNECTION EXAMPLE ADI-611 TO DI-651 Notr! The strike must have same voltage as Transformer the transformer. TF-3 24V DC Use this wire with strike having reverse function. (Open without power.) 33 34 3 5 36 37 Speaker Voltage URMET 1131...

  • Page 15: Adi-616 To Di-651

    4. Connection example ADI-616 TO DI-651 NOTE! If more then one handset will be Note! The strike must connected to the same button, have same voltage as all wires must be connected in the transformer. parallel. Transformer TF-3 24V DC Use this wire if the strike has reverse function.

  • Page 16: Pcs Adi-611 To Swu

    4. Connection example 2 PCS ADI-611 TO SWU URMET 1131 NOTE!!! Must be in DC pos. Transformer Handset TF-3 24V DC 33 34 35 36 37 15 1 617 18 19 20 21 22 23 24 NOTE!!! Must be in DC pos. 33 34 35 36 37 15 1 617 18 19 20 21 22 23 24 AXCALL Installation manual V1.3...

  • Page 17: Pcs Adi-616 To Swu

    4. Connection example 2 PCS ADI-616 TO SWU URMET 1131 NOTE!!! Must be in DC pos. Handset 1 Transformer TF-3 24V DC 5 33 3435 36 37 15 16 171 819 20 2122 23 24 NOTE!!! Must be in DC pos. URMET 1131 5 33 3435 36 37 Handset 5...

  • Page 18: Cascade Connection Of Swu

    4. Connection example CASCADE CONNECTION OF SWU URMET 1131 Transformer TF-3 24V DC Handset 1 URMET 1131 Handset 5 URMET 1131 Handset 6 AXCALL Installation manual V1.3...

  • Page 19: Cascade Connection With Swu And Adi-608

    4. Connection example CASCADE CONNECTION WITH SWU AND ADI-608 URMET 1131 Transformer TF-3 24V DC Headset 1 URMET 1131 URMET 1131 Headset 7 Headset 5 URMET 1131 URMET 1131 Headset 8 Headset 6 AXCALL Installation manual V1.3...

  • Page 20: Modification Of Front Plate For Led Indication

    4. Connection example MODIFICATION OF FRONT PLATE FOR LED INDICATION. - Cut carefully away the plastic pieces which is marked grey on the picture. Use a small sharp electronic cutter. - NOTE!! Do not remove the piece in the middle marked black. AXCALL Installation manual V1.3...

  • Page 21: Mounting Led Indication Panel In Di-651

    4. Connection example MOUNTING LED INDICATION PANEL IN DI-651 - Remove the old front plate from DI-651. - Replace opening button (A). Snap from backside. - Replace headset holder (B). Snap from frontside. - If LED panel with 4 LED will be mounted, modificate the front plate see sep.

  • Page 22: Connection Of Led Indication Unit

    4. Connection example CONNECTION OF LED INDICATION UNIT. DI-651 Intercom A Intercom B Intercom C Intercom D AXCALL Installation manual V1.3...

  • Page 23: Connection Of Adi-611 To Di-651-1

    4. Connection example CONNECTION OF ADI-611 TO DI-651-1. Transformer TF-3 24V DC 3334353637 URMET 1131/20 Speaker Voltage volume. jumper. 15 161718192021222324 Opening time 1-30sek. Predrawn wire Free red LED connect to GND to turn on. RÖD Green LED on when B button is pushed GRÖN Cancelling buzzer...

  • Page 24: Line Amplifier Di-653-2 Connected To Di-651

    4. Connection example LINE AMPLIFIER DI-653-2 CONNECTED TO DI-651. TO OTHER HANDSET URMET 1131 URMET 1131 CA 2 6 Yel. White To intercom Battery PL3:34 PL3:35 Alt. other power 33 34 35 36 37 supply max 12 VDC Högt Snap holder HANDSET AXCALL Installation manual V1.3...

  • Page 25: Line Amplifier Di-653-2 Connected To Di-653-1

    4. Connection example LINE AMPLIFIER DI-653-2 CONNECTED TO DI-653-1. 2 6 10 9 Yel. White To intercom Battery PL3:34 PL3:35 Alt. other power supply max 12 VDC 33 34 35 36 37 Högt Black Snap holder AXCALL Installation manual V1.3...

  • Page 26: Extra Buzzer Di-653-1

    4. Connection example EXTRA BUZZER DI-653-1. Connection in the indoor unit DI-651-X CA 6 Connection in the line amplifier DI-653-2 36 37 AXCALL Installation manual V1.3...

  • Page 27: To Other Signal Device

    4. Connection example AR-12 TO OTHER SIGNAL DEVICE. Transformer TF-3 24V DC 33 34 35 36 37 URMET 1131/20 15 16 17 1819 20 21 22 23 24 Jumper must be in pos:: Opto= Relay controlled by PL 9,10, Power supply must be at PL1,2. OPTO Chose timer function.

  • Page 28: As Security Device

    4. Connection example AR-12 AS SECURITY DEVICE. Adjustment of opening time 1-30sek. Jumper must be in pos: Opto= Relay controlled by PL 9,10, Power supply must be on PL1,2. Transformer TF-3 24V DC 33 34 35 36 37 URMET 1131/20 15 1 6 17 18 19 20 21 22 23 24 AXCALL Installation manual V1.3...
  • Page 29 Installed by: Telephone:...

This manual is also suitable for:

Axcall adi-616Axcall adi-608
