20

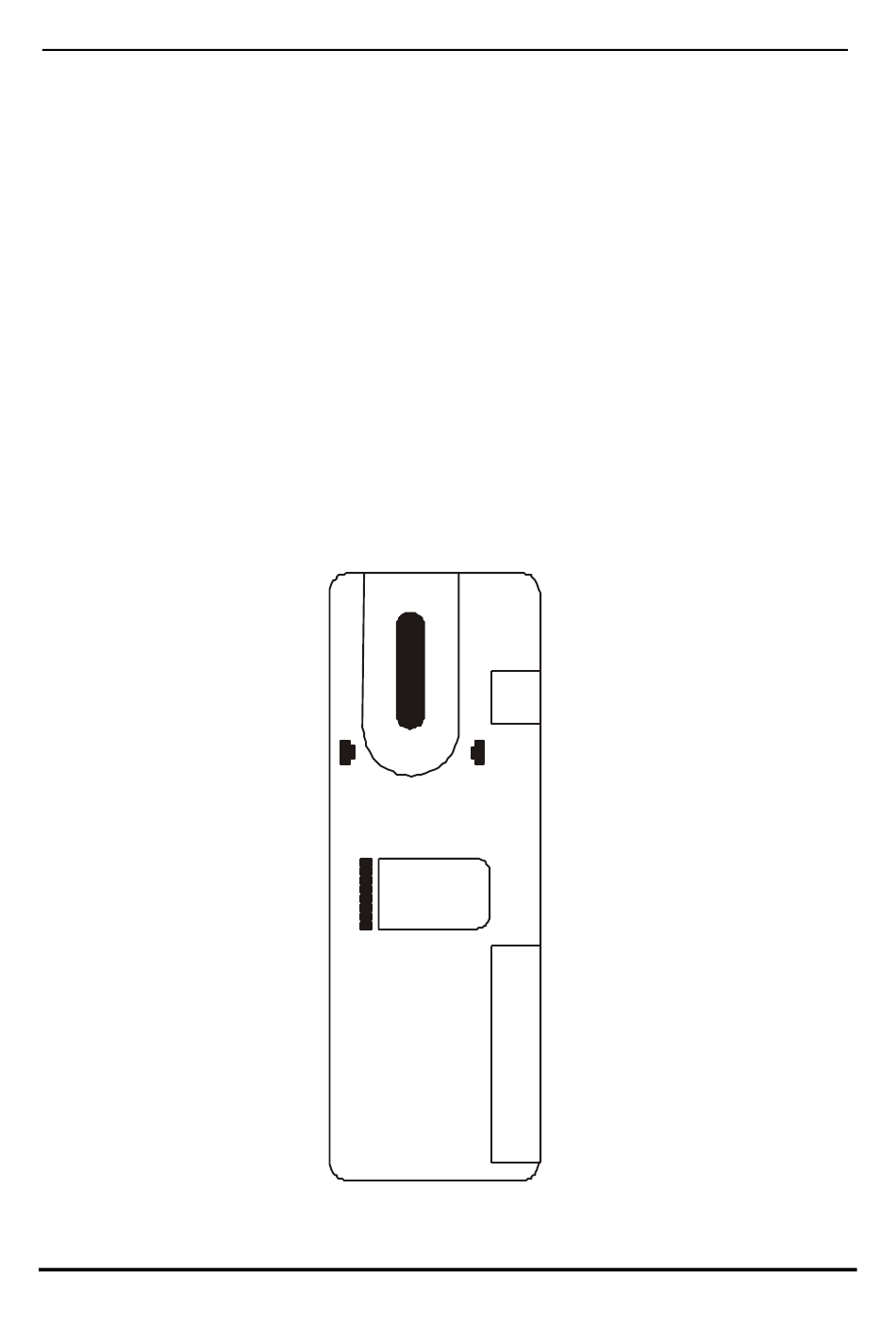

MOUNTING LED INDICATION PANEL IN DI-651

- Remove the old front plate from DI-651.
- Replace opening button (A). Snap from backside.
- Replace headset holder (B). Snap from frontside.
- If LED panel with 4 LED will be mounted, modificate the
front plate see sep. instruction.
- Mount the cover for LED (C).
- If LED panel for 2 LED will be mounted, cut the card in two pieces
mount 2 blindcover in the frontplate, leave the modification above.
- Mount LED card with a skrew in the bottom plate.
AXCALL Installation manual V1.3
B
B
4. Connection example
A
C
