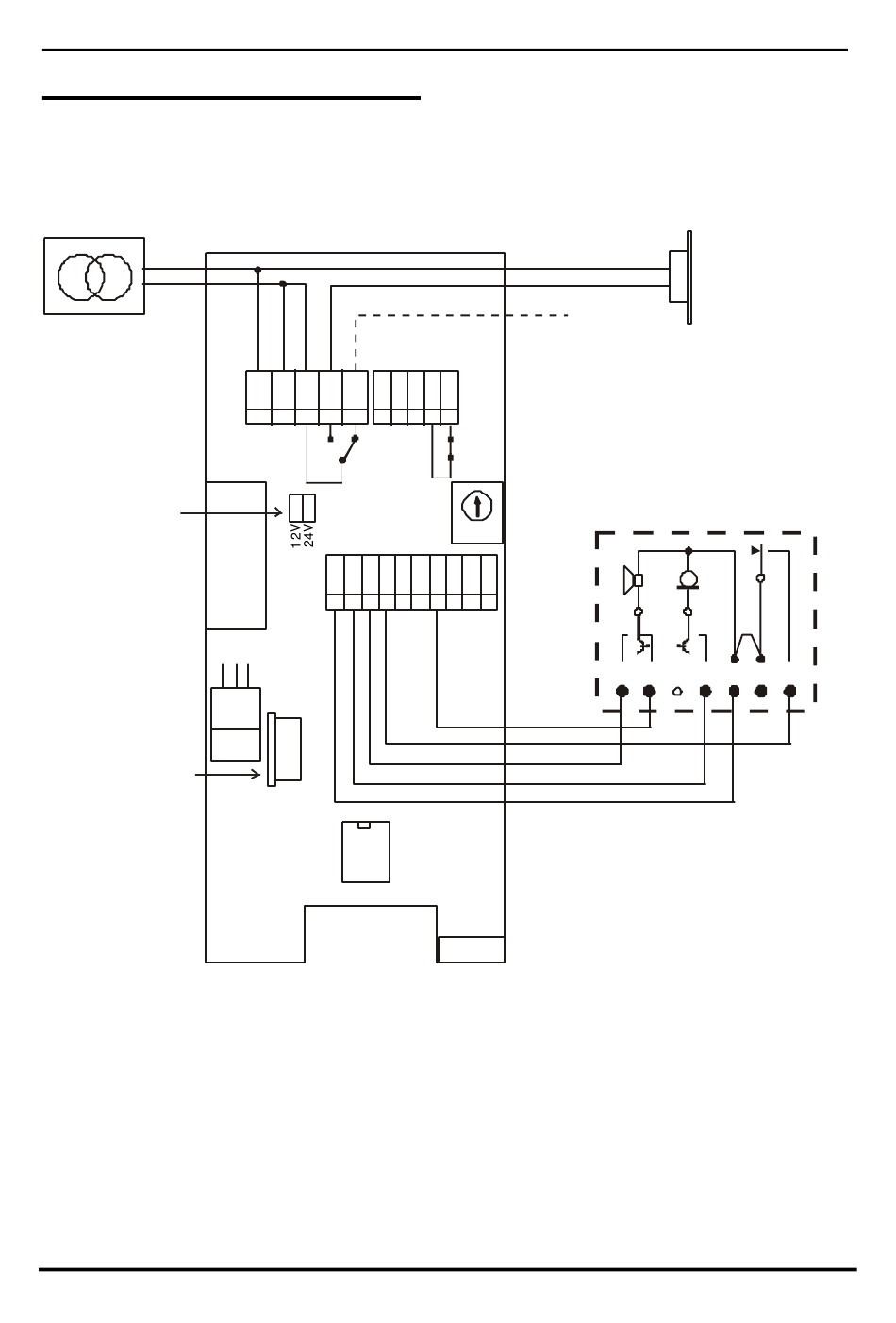

4. Connection example

4. CONNECTION EXAMPLE

ADI-611 TO DI-651

Transformer
TF-3 24V DC
Voltage
jumper.
Opening time
1-30sek.
1 2 3 4 5 33 34 3 5 36 37
15 16 1 7 18 19 20 21 22 2 32 4
_
+
Power consumption
ADI-611
Voltage
min. 63mA
12V
max. 98mA
min. 49mA
24V
max. 76mA
Use this wire with strike
having reverse function.
(Open without power.)
Speaker
volume.
_
+
NOTE!
If more than one handset
will be connected to the same
button, all wires must be
connected in parallel.
ADI-616
min. 140mA
max. 158mA
min. 130mA
max. 159mA
AXCALL Installation manual V1.3
Notr! The strike must
have same voltage as
the transformer.
URMET 1131
1 CA 2 6 10
13
9
