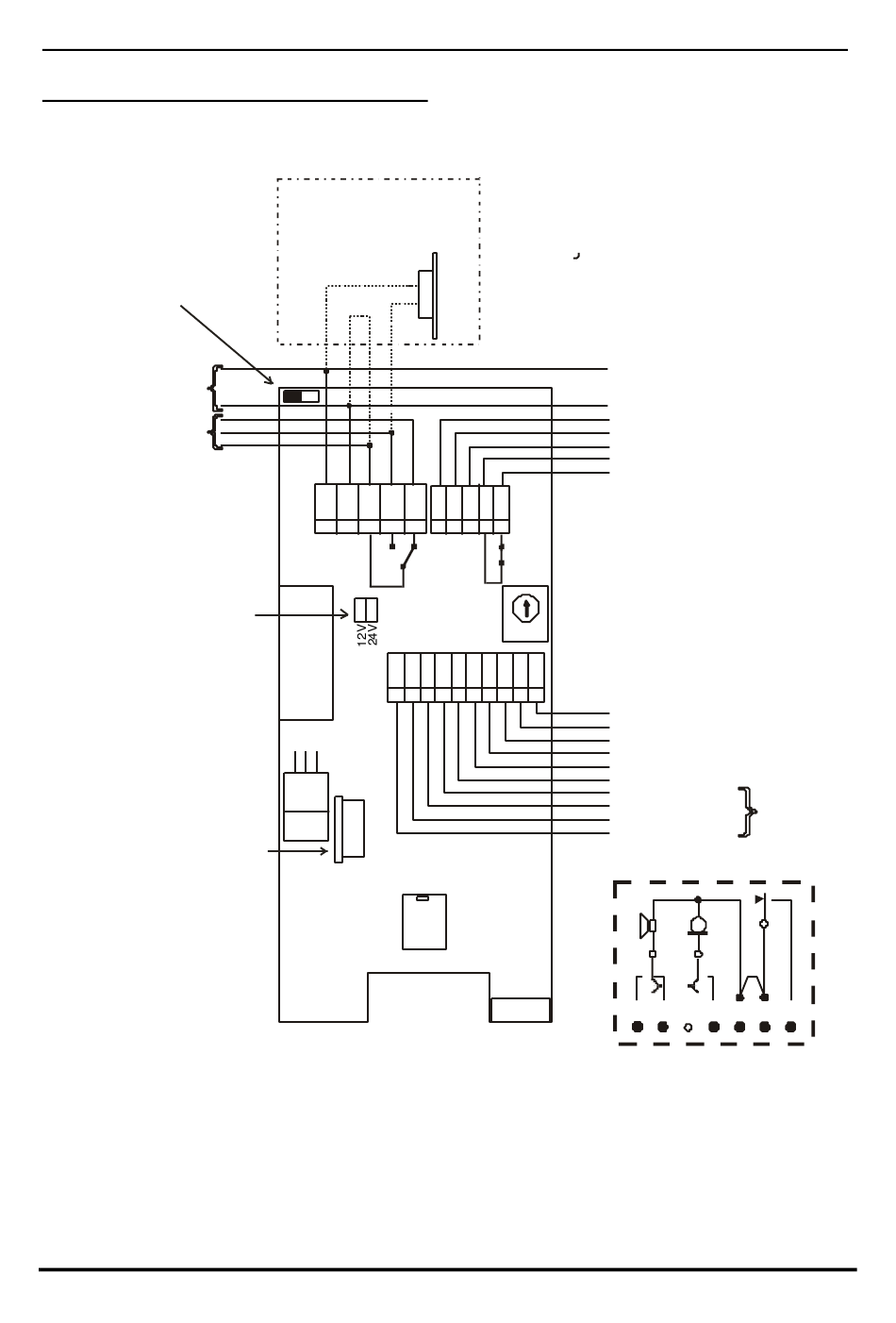

3. CONNECTION DIAGRAM

AXCALL ADI-611, ADI-616

Normally in AC pos.
Power supply
12-24V DC
Relay max 1A.
Voltage
jumper.
Opening time
1-30sek.
Voltage
12V
24V
AXCALL Installation manual V1.3
Note! The strike must
have same voltage as
the transformer.
AC DC
1 2 3
_
+
Power consumption
ADI-611 ADI-616
min. 63mA min. 140mA
max. 98mA max. 158mA
min. 49mA min. 130mA
max. 76mA max. 159mA
4 5 33 3435 36 37
_
+
x
15 16 171819 20 2122 2324
NOTE!
If more than one handset will be
connected to the same button,
all wires must be connected in
parallel.
3. Drawings
Important!!!
x
Note! Connection points for intercom
with 1 button (ADI-611).
Connection to ADI-608
Power supply
PL1:1
12-24V DC PL1:2
Calling signal out PL1:3
GND PL1:4
DC-power to line amp. (DI-653-2)
Tamper switch
Speaker
volume.
Connection to Urmet 1131
handset. Handset
Button 6 CA unit.6
Button 5 CA unit.5
Button 4 CA unit.4
Button 3 CA unit 3 (ADI-611)
Button 2 CA unit.2
Button 1 CA unit.1
Opening button 9
1
Earphone
2
Microfon
GND 6
URMET 1131
1 CA 2
To all
handset.
6 10 9
