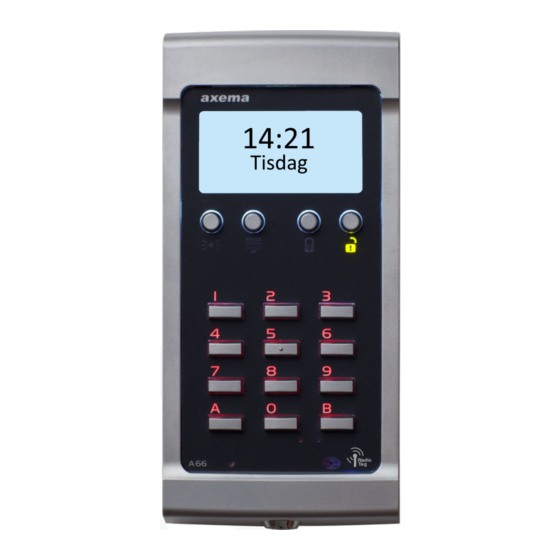

- Page 1 Manual Updated 04/11/2021 Reader VAKA A66 SOLO (offline) Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | +46 (0)8-722 34 40 | info@axema.se | www.axema.se...
-
Page 2: Table Of Contents
A66 SOLO (Offline) Introduction A66 SOLO Screw terminals Commissioning the A66 Commissioning of a SOLO-system Maintenance of SOLO systems Synchronisation of all readers. Programming To be programmed in the master reader To be programmed in each slave reader Configuration of new slave reader Convert a slave reader to a master reader Replacement of a slave reader About MIFARE DESFire EV2 tags... -
Page 3: Introduction A66 Solo
Slaves. The configuration of the master reader is distributed to the slave readers by MIFARE DESFire EV2 tags. Axema radio keys (RN18), MIFARE Classic, and EM credentials can be used in a SOLO system, but not to distribute data. -
Page 4: Screw Terminals
Screw terminals Connector Function AUX relay (NO/NC) Supply voltage (12-35 VDC) Exit button * 8, 10 Door contact ** The 100Ω resistor (supplied) is only used when the reader is connected to a door controller. * Closing the open button input means that the lock is unlocked for the corresponding time (plus the set opening time). -
Page 5: Commissioning Of A Solo-System
Commissioning of a SOLO-system Commissioning of a SOLO-system requires a MIFARE DESFire EV2 card or tag. If data in the sys- tem is to be disseminated via users' cards and tags, the Master reader should be the reader where most users pass. 1. -
Page 6: Maintenance Of Solo Systems
10. A minus sign (-) at the top of the master reader display means that the database is not consistent across the system's readers. Take action by: (Repetition may be required.) i. Show the programming tag for the master reader. ii. -
Page 7: To Be Programmed In Each Slave Reader
Codes (distribution of codes can be inactivated, witch means that codes only work in the master reader). Daily unlocked function Exit button EM (on/off) Programming code Language Automatic daylight saving time adjustments To be programmed in each slave reader Time/date Standard/reversed lock function Postal IR codes (Sweden only) Active buttons on radio keys... -
Page 8: Convert A Slave Reader To A Master Reader
Convert a slave reader to a master reader An existing slave reader can, if necessary, be configured to be used as a new master reader. 1. Replace the previously broken master reader with a slave reader from the system. 2. Enter programming mode The programming mode is entered by pressing the programming button (the rightmost round button) and entering of the programming code. - Page 9 Memory Capacity 9 tags 89 tags 210 tags 9 (9) ManualA66 SOLO...
