(3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing
District Tianjin China
Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com

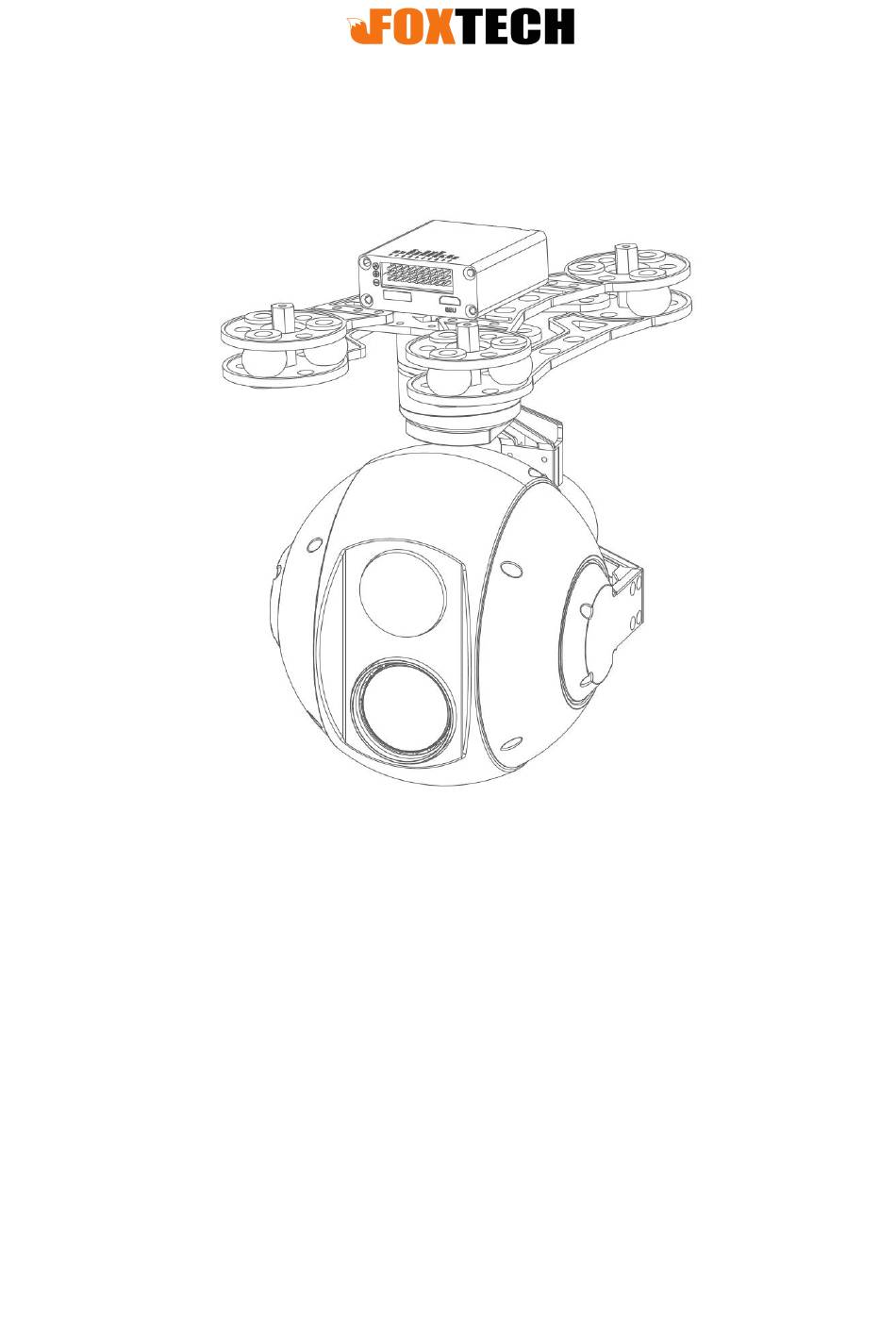

FOXTECH SEEKER-30 T I R 30X Optical Zoom Camera with 3-axis Gimbal
Warning and Disclaimer
Make sure not to adjust the gimbal or change its mechanical structure by yourself. Be
sure to mount the camera to gimbal before power on,and then install the gimbal on
the aircraft.
To avoid gimbal performance degradation or damage caused by imbalanced
payload,please do not add other peripherals for the gimbal camera (filter,hood,etc).
When in aerial photography,make sure your aircraft flight control system is working
at the safe mode.
We strongly recommend that you remove aircraft propellers before doing gimbal
configuration.Use extra non-power battery for gimbal.Keep children away from the
preset flight region.
Considering that we are not able to control user's specific usage,installation,
assembly,modification ( including the use of non-specified parts ),and improper use.
Direct or indirect damage or injury caused by the behavior above, our company will
not cover any loss and responsibility.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Foxtech Seeker-30 TIR
Summary of Contents for Foxtech Seeker-30 TIR
- Page 1 District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com FOXTECH SEEKER-30 T I R 30X Optical Zoom Camera with 3-axis Gimbal Warning and Disclaimer Make sure not to adjust the gimbal or change its mechanical structure by yourself. Be sure to mount the camera to gimbal before power on,and then install the gimbal on the aircraft.
- Page 2 (3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com F eatures : -Weight:1400g(cameras included) -1/2.8 inch 2.13MP Exmor R CMOS sensor -30X optical zoom,1080P/60 HDMI output for video downlink -1080P/30 H.264 video recorded for on-board TF card -Thermal camera: 640x480, 25HZ, 2X,4X digital zooming -Auto object tracking function -Geotag,gimbal Yaw/Pitch angle info,height,time will be displayed...
-
Page 3: Specification
(3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com Specification 30X zoom camera Sensor 1/2.8 inch 2.13MP Exmor R CMOS SENSOR Video output 1080P/60 HDMI Video recorded 1080P/30 H.264 Focal length 30X optical focal zoom,4.3-129mm Wide Dynamic Up to 105dB... - Page 4 (3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com Thermal camera Working system Un-cooled long wave (8μm～14μm) Detector pixels 640×480 Pixel size 17μm Focusing Athermalizing Emissivity correction Emissivity 0.01~1 adjustable NETD ≤50mK(@25℃) Imaging Index MRTD...
- Page 5 (3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com Gimbal wiring hub drawing Dimension...
-
Page 6: Installation
(3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com Installation Gimbal and camera control via PWM... - Page 7 (3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com Gimbal control 1)Yaw axis control:speed mode,connect Stick channel(or 3-position switch channel, push stick to middle position to stop) 2)Pitch axis control:speed mode,connect Stick channel(or 3-position switch channel,push stick to middle position to stop) 3)Mode control:angle mode,connect knob channel(speed mode:connect 3-position channel or rocker channel)
- Page 8 (3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com GPS data overlay and serial port wiring diagram GPS Baud rate:115200,8,1,null Serial ports will be needed(marked by the black box,see photo above),please connect RX1 and RX2,TX1 and TX2,with wire jumper.TX and RX from external serial cable connect to TX3 and RX3 respectively.GND from external serial cable connect to GND of the wiring hub.
- Page 9 (3rd Floor) No.9 Haitai Fazhan Sixth Avenue XiQing District Tianjin China Email: support1 @ foxtechfpv .com Web: www.foxtechfpv.com Rotate knob to position-3:low speed lock mode.The gimbal will move at the lowest speed when controlling YAW and PITCH,and gimbal YAW axis will not follow drone flight direction.
- Page 10 FH336-TR 36X with tracking connect block controller box HDMI : micro HDMI OUTPUT 1080P 60fps default SD card: max 128G ，class10 FAT32 or exFAT format PWM in 5V output USER BOARD TTL 115200/8/1/N...
- Page 11 S.bus/Rx ： connect to Rx2 for track function. Roll/ Tx ： connect to Tx2 for track function. Pitch: : PWM in, pitch control 1 pitch up 2 pitch stop 3 pitch down Yaw ： PWM in, Yaw control 1 PITCH UP 俯仰向上 1 Yaw right 2 PITCH STOP 俯仰停止...
- Page 12 ZOOM: zoom the camera focus : focus the camera 1 focus tele 1 zoom tele 2 stop focus 2 stop zoom 3 focus near 3 zoom wide Pic/Rec ： picture / start record， stop record Switch 2 to 1： start record stop record.
