Summary of Contents for Foxtech Seeker 30 TR

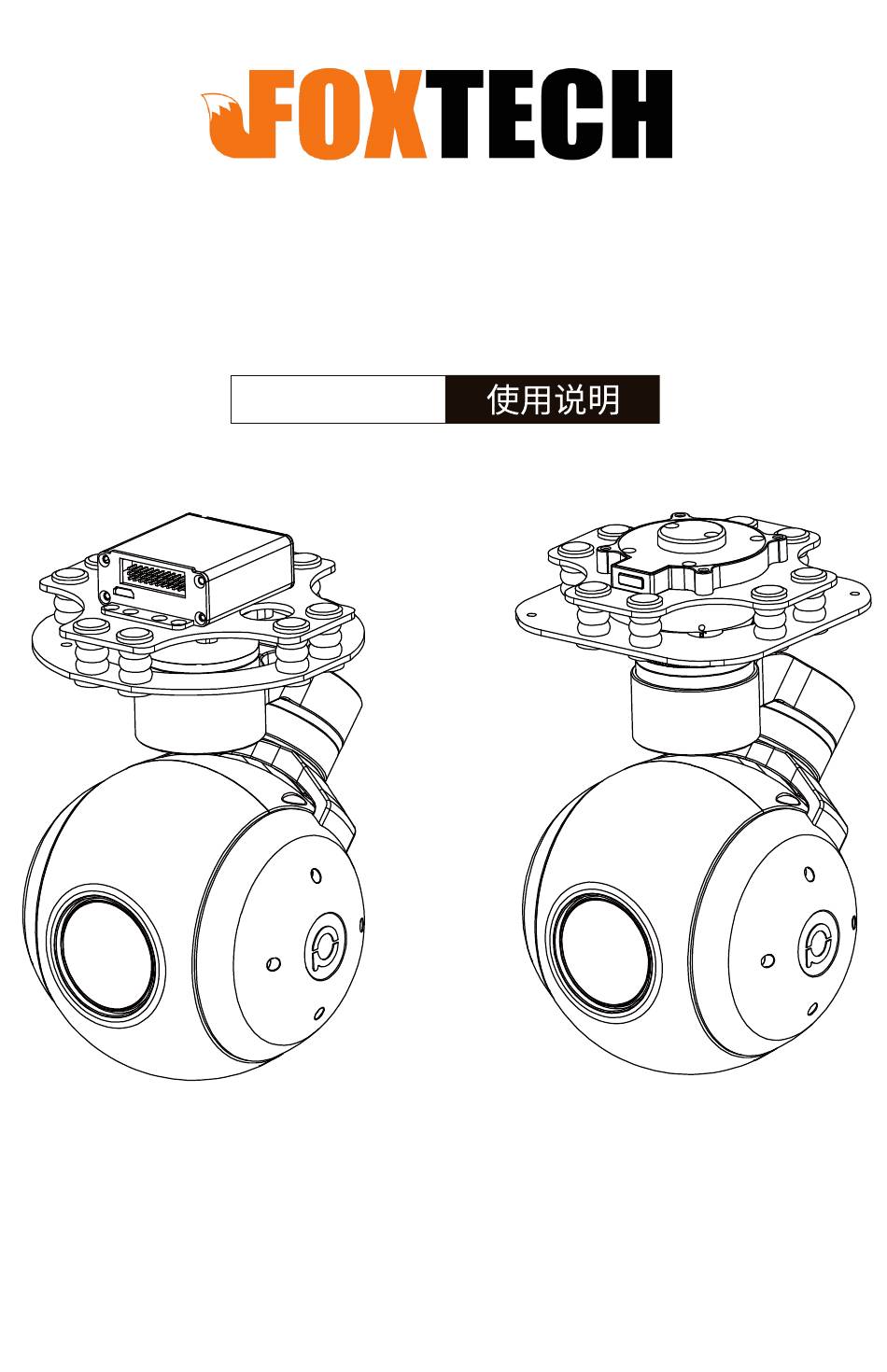

- Page 1 30x Optical Zoom Seeker 30 TR Object Tracking Gimbal Camera User Manual Standard Version Quick-Detach 标准版 Version 快拆版...
-
Page 2: Disclaimer And Warning
The 3 axis gimbal can achieve stabilization in yaw, roll and pitch. The integrated design of damping system and gimbal can greatly reduce mechanical vibration. Seeker 30 TR is widely used in UAV industries of public security, electric power, fire fighting, zoom aerial photography and other industrial applications. -
Page 3: Standard Version
1.2 In the Box A. Standard Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder M3 Screw x 4 pcs x 8 pcs Power Cable x 1 pc B. Quick-Detach Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder... -
Page 4: Installation Instruction
TTL / S.BUS Control Cable x 1 pc TTL Connect Cable x 3 pcs Ethernet Cable x 1 pc 2. Installation Instruction 2.1 Overview [10] [12] [11] Control Box Back Side (Standard Version) [10] [13] [12] Quick-Detach [11] (Quick-Detach Version) - Page 5 [8] Roll axis motor [1] Control box [9] Pitch axis motor [2] Upper damping board [10] 3-6S power interface [3] Lower damping board [11] Micro HDMI interface [4] FHD zoom camera [12] Ethernet interface [5] Damping ball [6] Yaw axis motor [13] Quick-Detach unlock [7] TF card slot button...
- Page 6 2.2.2 Control Box Printing (Quick-Detach Version) Front Side POWER Left Side ETHERNET UART & S.BUS Right Side...
- Page 7 2.3 Device Dimensions (Standard Version) Unit: mm 62.2 102.4 109.7...
- Page 8 2.3 Device Dimensions (Quick-Detach Version)Unit: mm 41.6 Control Box 109.7...
- Page 9 2.4 Install Mounting Part (1) Find out the arrow on the gimbal which indicating the yaw heading of the payload (i.e. the lens direction when the camera power on), and synchronize with the direction specified by the UAV. (2) Fix one end of the copper cylinder on the screw hole of lower damping board, and use M3 screw to fasten it.
- Page 10 2.5 Quick-Detach Release Instruction × 1. Make sure the two white stripes indicated in above picture are aligned with each other. (If the stripes are not aligned to each other, please pinch the connector part and turn it to left manually)
- Page 11 2. Align the white dot (unlock icon) to the red triangle (below unlock button), push the gimbal into the Quick-Detach completely and then rotate the gimbal camera anticlockwise. 3. When you hear "click" sound (when red dot is aligned to the red triangle) means the gimbal camera and Quick-Detach has been locked.
-
Page 12: Install Tf Card
2.6 Install TF Card TF (Micro SD card): Install the TF card to the card slot (Re. 2.1 Overview). Support max 128GB. Request Class 10 (10m/s) transmis- sion speed or higher and FAT32 or exFAT format. Make sure device is power off when inserting the TF card, hot plugging is not supported. -
Page 13: Signal Control
Above output mode is optional, HDMI and SDI output cannot coexist at the same time. Please subject to your actual product. When using user interface software Viewlink for network connection, the network of external device (computer) should be the IP address: 192.168.2.2 (choose the last byte among 2~254, can not be 119 same as the gimbal), subnet mask: 255.255.255.0, Default gateway: 192.168.2.1, and all firewalls of the... - Page 14 PWM IN 5V OUTPUT Remote Controller Receiver Connection Diagram (Standard Version) Receiver Remote Controller Connection Diagram (Quick-Detach Version)
- Page 15 3.1.2 PWM Control Operation Instruction 1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Pitch Up Pitch Stop Pitch Down...
- Page 16 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Position 1: Low speed mode, control pitch / yaw with this mode at lowest speed Position 2: Middle speed mode, control pitch / yaw with this mode at middle speed Position 3: High speed mode, control pitch / yaw with this mode at highest speed...
- Page 17 5) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Zoom Out Stop Zoom Zoom In 6) Focus ( not functional for this channel) 7) Pic/Rec (PWM Pic/Rec channel in to control take picture and...
- Page 18 8) Multi: IR digital zoom / tracking control Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Switch from Position 2 to 1: IR digital zoom, 1x~4x Switch from Position 2 to 3: Exit the tracking, display the cross cursor. Adjust the cross cursor to lock target object and start tracking Switch from Position 3 to 2: Cancel tracking...
-
Page 19: Connection Diagram
USB to TTL Cable Control Box Connection Diagram Standard Version USB to TTL Cable Quick-Detach Control Box Connection Diagram Version Quick-Detach... -
Page 20: S.bus Control
Install Viewlink control software to test the functions directly. Users may choose to develop their own software, please contact technical support for TTL control protocol file. ViewLink is a user interface developed by Foxtech for Foxtech gimbal cameras. Connect serial port of gimbal to pins, DO NOT connect with power supply. -
Page 21: Wiring Diagram
5V OUTPUT Remote Control Receiver Wiring Diagram Standard Version Receiver Remote Control Wiring Diagram Version Quick-Detach... - Page 22 (please contact with our technical support for the setting instruction.) 3.4 TCP control For Foxtech gimbal cameras with Ethernet output, the default IP address is: 192.168.2.119, control port: 2000. You can send the corresponding protocol to realize TCP control after connecting.
-
Page 23: Specification
4. Specification Hardware Parameter Working voltage Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 650mA @ 12V Idle current 550mA @ 12V Working environment -20℃ ~ +60℃ temp micro HDMI(1080P 60fps) / IP (720p) / Output SDI (1080P 30fps) SD card (Up to 128G,class 10,... - Page 24 Camera spec Imager Sensor SONY 1/2.8" "Exmor R" CMOS Picture quality Full HD 1080 (1920*1080) Effective pixel 2.13MP Photo storage format JPG(1920*1080) Video storage format MP4 (1080P/720P 25fps/30fps) Lens optical zoom 30x, F=4.3~129mm Digital zoom 12x (360x with optical zoom) 10mm(wide end) to 1200mm(tele end) Min object distance Default 300mm...
- Page 25 Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor White balance Lamp (Fix/Auto/Outdoor Auto) Shutter speed 1/1s to 1/10,000s, 22 steps Backlight compensation Aperture control 16 steps Defog Camera Object Tracking Update rate of 50Hz deviation pixel Output delay of deviation pixel Minimum object...
- Page 26 Accessories cylinders, damping balls, damping boards / Hight quality plastic Box with foam cushion 5. FAQ 1. How to deal with whitening visible image of Seeker 30 TR foggy weather? A: Enable defogging mode 2. Does Seeker 30 TR support taking photos during recording? A: Yes 3.
