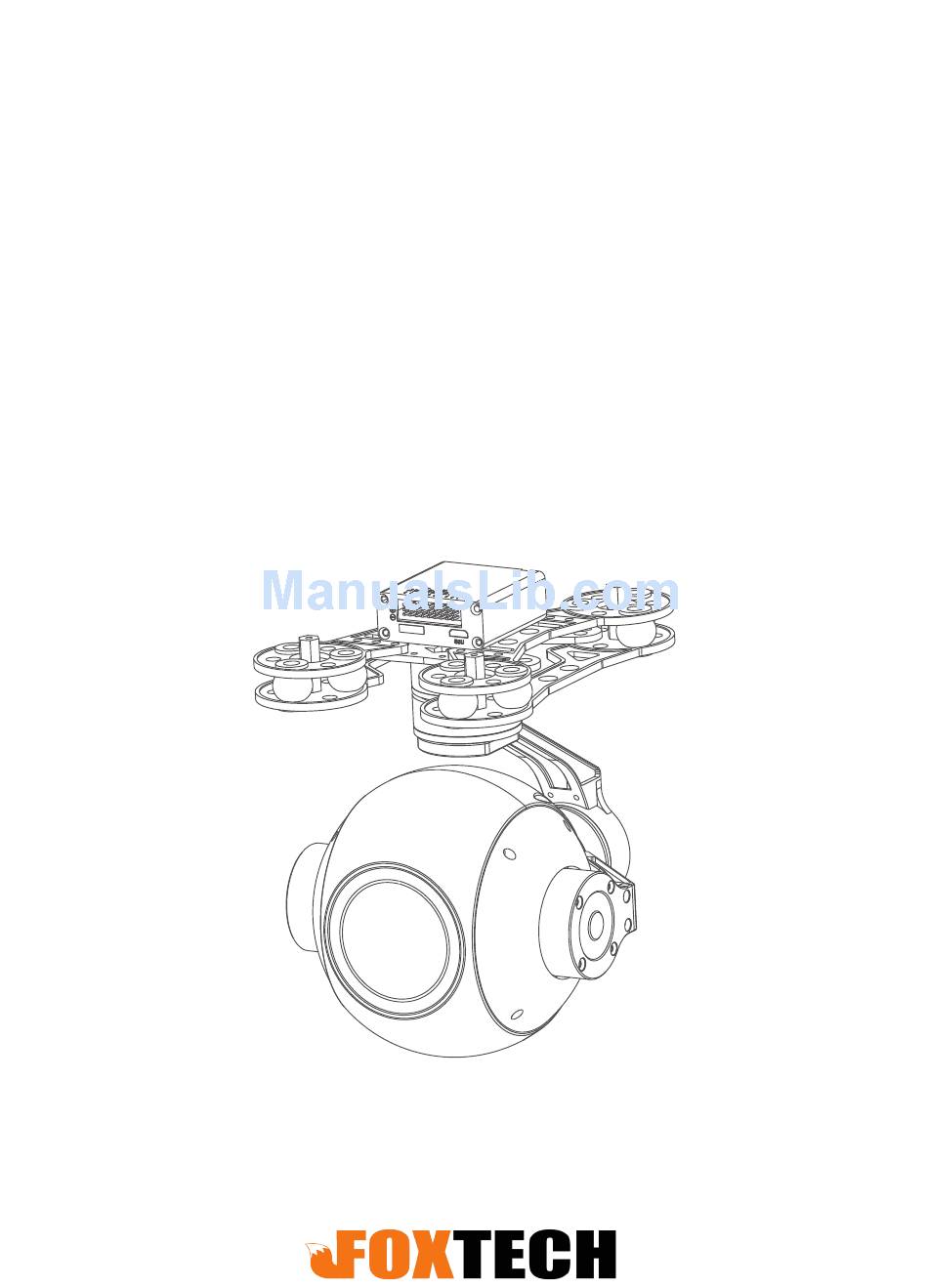

- Page 1 FOXTECH SEEKER-30 HD 30X Optical Zoom Camera with 3-axis Gimbal User manual...
-
Page 2: Table Of Contents
Contents SEEKER-30 High-precision 3-axis Gimbal Q3N High-precision pod 、Gimbal introduction ..................2 ……….………………………………2 2、 Object tracking function（Optional） 3、Gimbal description………………………………………..…………………………3 4、Packing list.....……………………………………………………………………4 5、Mounting plate dimension drawing…………………....………………4 6、Installing………………………......………………………………………5 7、Mechanics@Electronic characteristics……..……………………………5 8、Working characteristics………………………....………………………5 9、Gimbal’s signal wire box………………....………………………………6 10、Connection of control box and wiring instructions… … … … …6 11、Functional descriptions of gimbal mode………….......………7... -
Page 3: Gimbal Introduction
3-axis Gimbal introduction FOXTECH SEEKER-30 is a high-precision professional 3-axis gimbal with a 30X 1080P Optical Zoom Camera which features high stability,small size and light weight. The 3-axis gimbal adopts high-precision encoder in each motor, based on FOC motor control technology. -
Page 4: 3、Gimbal Description
Pod description [1]Pod fixed copper pillar [5]YAW axis motor [2]Damping sphere [6]Roll axis motor [3]Upper plate of gimbal board [7]Pitch axis motor [4]Under plate of gimbal board [8]HD zoom camera Please make sure that the motor is not stopped by any object during the rotation，if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: 4、Packing List
Packing list Pod*1 Screw pack*1 M3*5mm half round inner six angle screw*12 (fixed copper pillar and damping plate) Copper pillar*4 Damping sphere*12 DIMENSIONS unit:mm... -
Page 6: 6、Installing
Installing Mechanics@Electronic characteristics Voltage 330mA@12V 3S~6S(12V) Quiescent current Working current -20 ~+80 ° ° 450mA@12V Work environment 848g Size L144*W151*H158mm Weight Working characteristics -90 ~+90 ° ° Pitch angle range of action Roll angle range of action -85 ~+85 ° °... -
Page 7: 9、Gimbal's Signal Wire Box
Gimbal signal wire box unit:mm 1 2 3 S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi Connection of control box and wiring instructions 1、Camera control line Z o o m : c a m e r a z o o m c o n t r o l l i n e , Futaba connect PWM receiver on third gear, or R6208 S B... -
Page 8: 11、Functional Descriptions Of Gimbal Mode
Pod PWM signal instructions: YAW directional channel: speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.) PITCH Pitch channel: speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.) MODE gimbal one button back and speed adjustment:angle mode, A knob or a thirt gear channel switch. -
Page 9: 30X Optical Zoom Camera
The 30X Optical Zoom Camera has 4 mega effective pixels, supports 30X optical autofocus. The zooming function makes it possible to see objects in detail over distance. The SEEKER-30 offers 1080p FULL HD 30fps video recording onboard and 1080p HDMI output for HD video transmission back to the ground. FOX-... -
Page 10: 3、Functional Characteristics
Functional characteristics Zoom Range Zoom focal length f=4.5~135mm, zoom ranges up to 30X exhibiting image detail Perfectly. The speed of focusing Design for UAV aerial photography , according to aerial characteristics, using fast focus algorithm, focus time <1s. Wide dynamic Adopt 105d B wide dynamic range, in the presence of backlit or strong light, The view of the over bright and over dark regions can still be captured at the same time.
