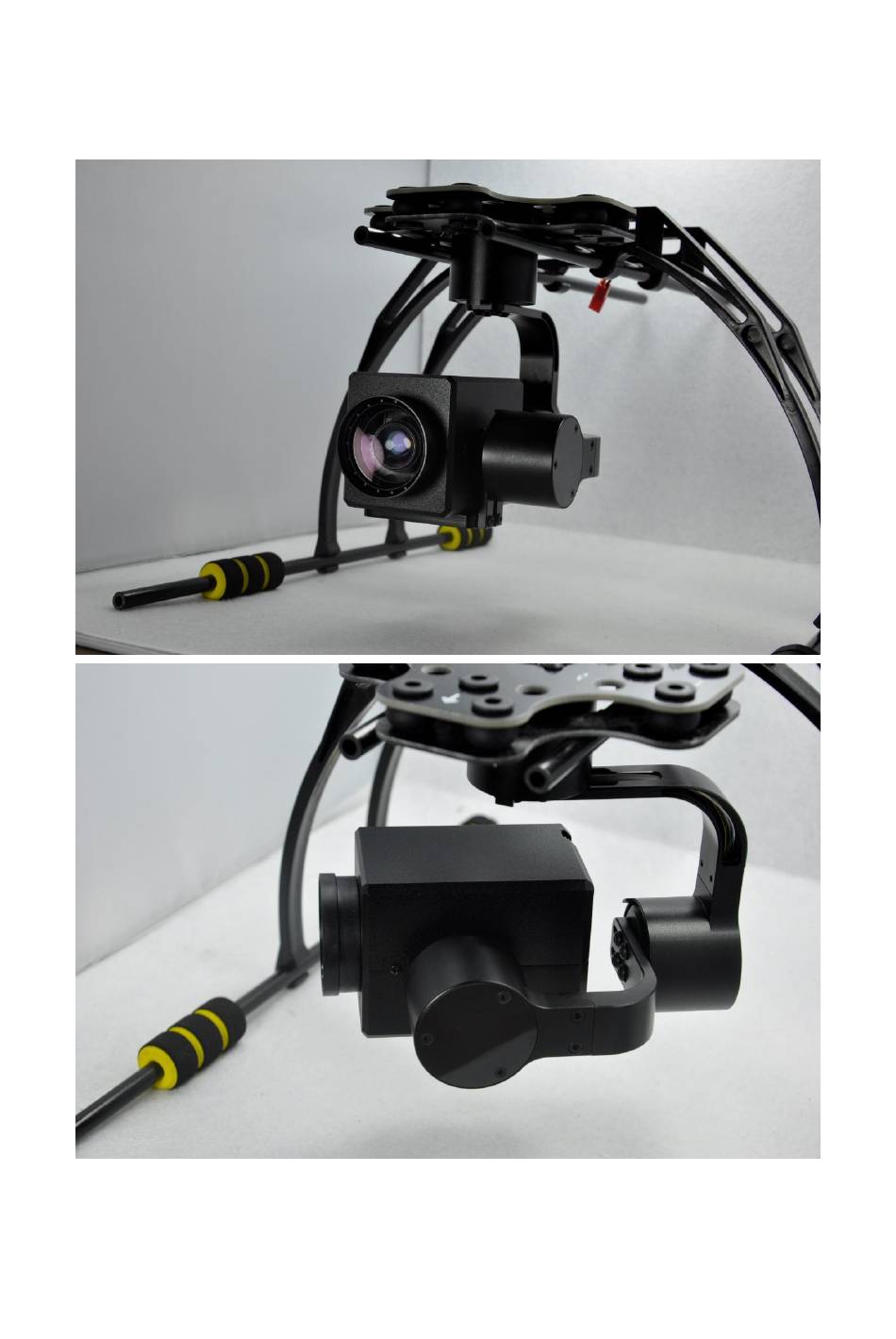

- Page 1 FH318(720P) Manual —— Pro 3-axis 18x Optical Zoom Aerial Camera SPECS PL318S professional 3-axis zoom gimbal, with high...
- Page 2 accuracy encoder FOC solution, mount 18x optical zoom and 720p Full HD camera, providing a detailed long distance zoom aerial shoot, is designed for public security，fire protection, power industry etc. Features: Light: 535g weight Small: 137(L) x 88(W) x 135(H)mm Power saving: 330mA@12V Unparalleled stabilization: ±0.02°...
- Page 3 88 mm 135 mm Gimbal: 1. Adjustable speed and mode: When zoomed in, with low speed and lock head mode,the control is more accurate; when zoomed out, with high speed and follow mode, the control is more sensitive and quick. 2.
- Page 4 Camera: 1. 18x optical zoom, Full HD 720p video steaming, 14MP shoot, stunning clearly plate within only 200M. 2. Ultrafast auto focus, which speed is less than 1s, specially designed for drones. 3. Various interfaces, analog video output, HDMI HD video output,SD card storage for photo 、...
- Page 5 Micro HDMI Micro SD slot...
- Page 6 Camera parameter remote control PWM control gimbal camera connection manual: 1. 5P gimbal PWM control wire manual: 3p Dupont orange( PITCH channel)、red(5V Power the receiver)、black( GND receiver ): Connect to receiver stick or three-way switch channel. 1p Dupont green( YAW channel): Connect to receiver stick or three-way switch channel.
- Page 7 to receiver rotary knob or non-auto reset THR channel or three-way switch channel, specifics as below: Switch to low: Gimbal low speed, lock head( When the drone turns, gimbal follows, only controlled by controller); Switch to middle: Gimbal high speed, follow( Gimbal follows the drone`s direction, and controlled by ground controller);...
- Page 8 Connect to three-way switch channel. Switch from middle to high: Photo or video mode switch Switch from middle to low: ① Video mode: Screenshot; ② Photo mode: Take photos. 2p Dupont blue(record Start/stop recording), black(GND):Connect to three-way switch channel. ① Video mode, switch from middle to high: Start recording;...
