Reading tips Symbol description important Operation tips Vocabulary, reference Install MS CCS Pro In the process of using the product, it is necessary to install the official software MS CCS pro. MS CCS Pro requires Windows 7 or windows 10. warning In order to avoid the danger of fire and electric shock and ensure the long-term stable operation of the product, please store the product in a dry and cool place,...
Page 3

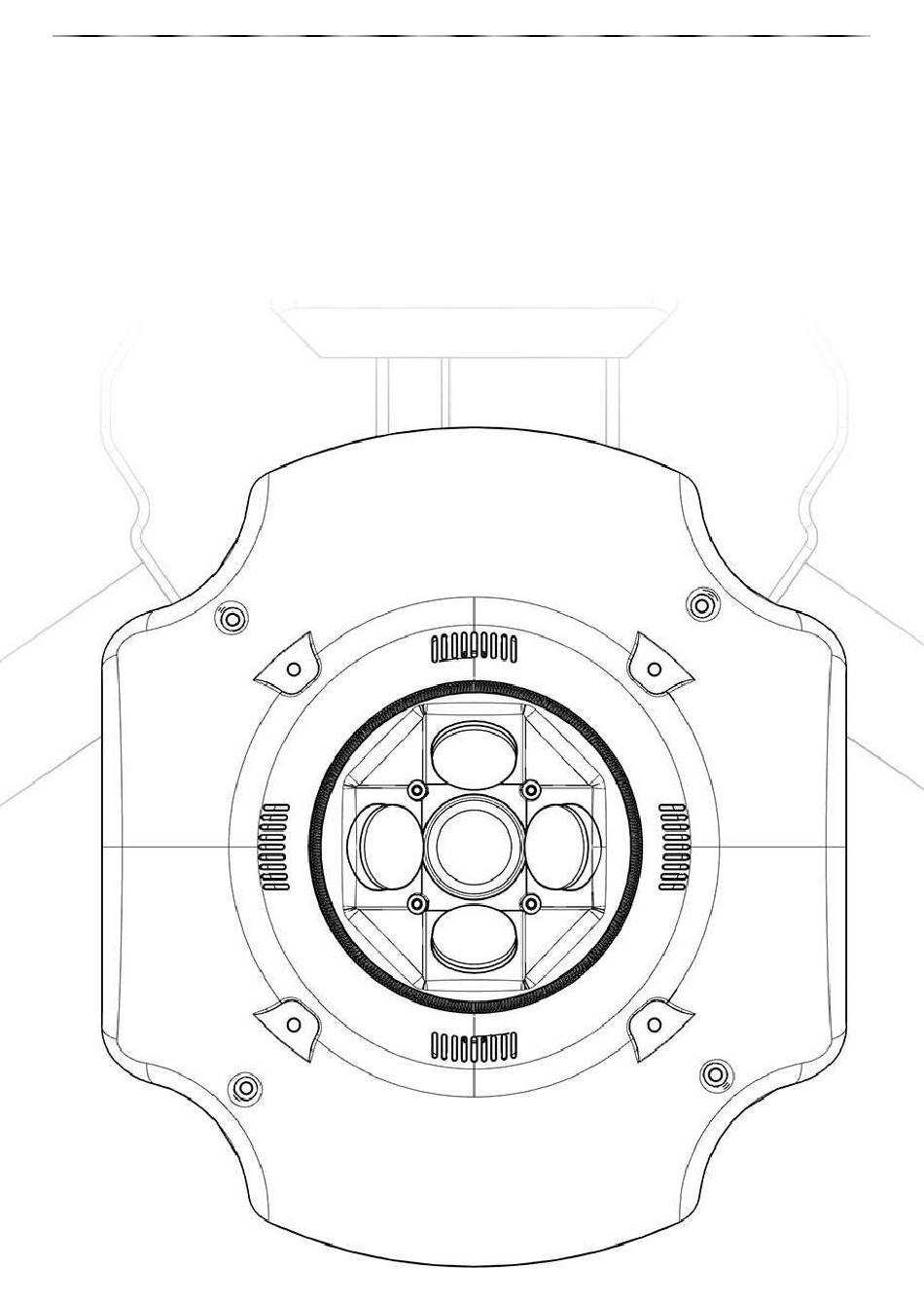

The main engine of Argus V3 is 0.58kg. In order to ensure flight safety, it is recommended to select the aircraft with the maximum payload of more than 1.8kg.
Catalog Reading tips Symbol description Installation of MS CCS Complete equipment Product overview Installation requirements Meet Argus V3 power supply Installation to UAV/Drone Installation of DJI PSDK Installation of quick mounting pan tilt Using Argus V3 Power on state indicator light...
Page 7
1.1 coordinate system 12 1.2 UAV/Drone type 1.3 language settings 12 2 geographical indications 2.1 configure POS read template 2.2 UAV model 2.3 export selected log 3. Filing of aerial photos 3.1 refresh camera storage link 3.2 selection of sorties 3.3 empty photos 3.4 storage path 3.5 perform export...
Please do not unplug the power during the camera shooting. Installation to UAV/Drone Be sure to install the Argus V3 to the UAV/Drone when the Argus V3 is not powered...
Argus V3 to connect red dot mark of adapter ring to complete installation. Installation of quick mounting pan tilt Fix the Argus V3 quick mount pan tilt on the bottom of the aircraft and lock it with screws。 Press the buttons on both sides of the pan tilt mount.
After connecting the power supply, please disconnect the power supply before the Argus V3 starts and completes the self-test. If the power is cut off during the start-up process, the camera can not record data after starting again.
Read data There is a TF card slot for storing data on the side of Argus V3. Insert the original TF card into each card slot according to the number, and then turn on the power supply to control the host to record data.
Software operation MS CCS Pro Operation interface 1 Software settings Global settings 1.1 Coordinate system Set the geographic coordinate system of the original pos data 1.2 UAV/Drone type Select the type of UAV; when grouping sorties, the multi rotor will use 30 seconds to group, and the fixed wing will use 120 seconds to group.
2 Geotagging The original pos file is transformed into a pos file that can be recognized and read by the software 2.1 Configure POS read template Import the original pose data and select the folder where the pose file is located. 2.2 UAV/Drone type Select the UAV type corresponding to the imported pose data.
3 Aerial film filing Get camera photos, generate sorties and export to local. 3.1 Refresh camera storage connection Read camera photos and generate sorties. 3.2 Select sorties Select the sorties that need to be exported locally. 3.3 Empty photos Delete all photos of the camera. 3.4 Storage path Select the save path for the export sorties.
Copy the photos locally. 4 Data processing Match pose data for sorties; export data files that pix4d 4.1 Pos import Import the mslog generated in the geotagging phase. 4.2 Image import Import the sorties generated in the aerial photo archiving stage. 4.3 Sortie Preview 3D display of pos data 4.4 KML import...
4.5 Pix4D photo archiving Check one or more sorties, merge the selected sorties into one sortie, and write the pos data to the photos. 4.6 Write photo information Check one or more sorties and write camera distortion information and pose data to the photos of selected sorties for the use of DJI intelligent map.
In the process of route setting, the course overlap determines the number of images and the interval of photographing, and the side overlap determines the number of routes. Generally, the two overlap degrees can be set as the same. If it is necessary to reduce the amount of data or adjust the flight efficiency of a single flight, a single value can be used.
Exception: when the standard flight height cannot meet the ground resolution required by the project, in order to ensure the ground resolution first, we can split the survey area and collect the higher area separately. When collecting separately, we can adjust the 2 times in the formula to 1.5 times, and increase the overlap to 85% to ensure the data integrity of the higher area;...
Photo interval: 13.37s The above parameters are for reference only. Emergency treatment of fault problems The following contents are used to guide the maintenance operators to deal with simple maintenance problems. Common Methods of resolution problem Unable to power Please check whether the power supply voltage is up to standard.
observe the camera status indicator light, if there is a non flashing indicator light corresponding to the camera, the data cannot be recorded, By restarting the camera and waiting for the self-test to be completed, the observation indicator light will be on normally to avoid data loss. 2. Due to the insufficient setting of the external control signal duration, the external signal cannot support the complete exposure of all cameras.
Page 21
Power supply Airborne / independent power supply mode Minimum photo 0.2s interval Support flight All flight control, (PWM signals and level signals) control system Lens group 25-35mm or full35mm configuration Power on self test Working state of real-time display five channel camera Storage capacity 640G(can be added)
Working voltage 12.6-36v Maximum power consumption Protection level IP54 Argus V3 PSDK DJI Skyport Five independent support free image control support point(1:500) App camera support working state feedback DJI Terra support Pos Storage mode Local TF card Time support synchronization...
