BEA C8 Manual

LED-SIGNALS
The ORANGE LED The sensor goes into
fl ashes every second. security mode.
The sensor signals
The ORANGE LED
1 fl ashes 1 x. an internal fault.
The ORANGE LED The sensor encounters
is on. a memory problem.
The RED LED fl ashes
The sensor sees the door
quickly after a setup.
during the setup.
The sensor vibrates.
The RED LED
lights up
sporadically.
The sensor sees the door.
Ghosting
The GREEN LED
lights up
sporadically.
The sensor vibrates.
The sensor sees the door
or other moving objects.
The reaction of
the door does not
correspond to the
LED-signal.
SAFETY INSTRUCTIONS
The manufacturer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system
in compliance with applicable national and international regulations and standards on door safety.
Only trained and qualifi ed personnel may install and setup the sensor.
The warranty is void if unauthorized repairs are made or attempted by unauthorized personnel.
Avoid touching any electronic and optical components.
BEA | 3rd-5th Floor Tower B / No.10 Jiu Xian Qiao North Road, Chao yang District, Beijing | T +86 10 57761616 / F +86 10 62628775 | INFO@BEA.BE |
Angleur, November 2010 Jean-Pierre Valkenberg, Authorized representative
The complete declaration of conformity is available on our website: www.bea.be
Only for EC countries: According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE)
1
Cut and restore power supply.
1 Cut and restore power supply.
2 If orange LED fl ashes again, replace sensor.
1 Cut and restore power supply.
If orange LED lights up again, replace sensor.
2
1
Check the angle of the IR-curtains.
2 Launch a new setup.
Attention: Do not stand in the detection fi eld!
Check if the sensor is fastened fi rmly.
1
2 Check position of prism and cover.
1 Launch a setup and adjust the IR angle.
1 Change radar antenna angle.
1 Check if the sensor is fastened fi rmly.
2 Check position of cable and cover.
Remove the objects if possible.
1
Change radar antenna.
2
Change radar fi eld size (sensitivity).
3
Check wiring.
1
Other use of the device is outside the permitted purpose and can not be
guaranteed by the manufacturer. The manufacturer cannot be held responsible for
incorrect installations or inappropriate adjustments of the sensor.
DESCRIPTION
2
4
3
1. Cover
2. Front cover
3. Infrared lens
4. Microwave antenna
5. IR-curtain ajustment screw
TECHNICAL SPECIFICATIONS
Supply voltage: 12 V - 24 V AC +/-10% ; 12 V - 30 V DC 0%/+10%
Power consumption: < 3 W
Mounting height: 1.8 m to 3 m
Temperature range: -25 °C to +55 °C
Degree of protection: IP54
GREEN
LED
Motion
Detection mode:
Min. detection speed: 5 cm/s
Technology: Microwave doppler radar
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm2
Angle: From 15 ° to 45 ° vertical (adjustable)
Relay (free of potential)
Output:
Max. contact voltage: 42 V AC/DC
Max. contact current: 1 A (resistive)
Max. switching power: 30 W (DC)/60 VA (AC)
0.5 s
Hold time output signal:

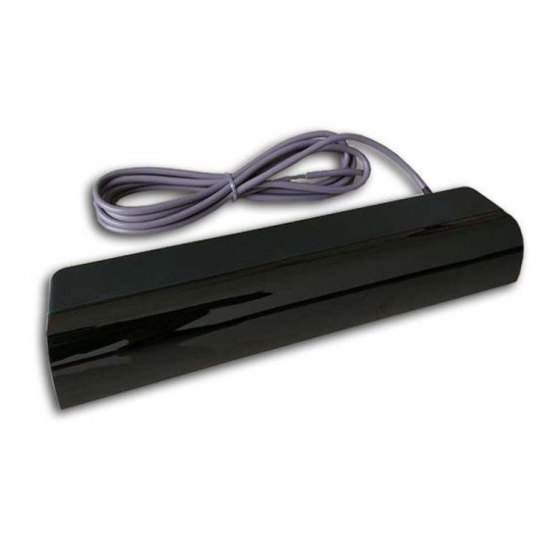

C8
Opening & safety sensor
for automatic sliding doors
1
6. Dip switch
7. LED
8. Microwave sensitive potentiometer
9. Cable plug
RED
LED
Presence
Typical response time: <128 ms (max. 500 ms)
Active infrared with background analysis
Spot diameter: 6 cm (typ)
Number of spots: 24 by curtain
Number of curtains: 1
From -5 ° to +8 ° (adjustable)
Relay (free of potential)
Max. contact voltage: 42 V AC/DC
Max. contact current: 1 A (resistive)
Max. switching power: 30 W (DC)/60 VA (AC)
0.5 s
Specifi cations are subject to changes without prior notice.
All values measured in optimal conditions.
5
6
7
8
9
