BEA CGS-MF Quick Start Manual

Please keep for further use
Designed for colour printing
Other use of the device is outside the permitted purpose and can not be
guaranteed by the manufacturer. The manufacturer cannot be held responsible
for incorrect installations or inappropriate adjustments of the sensor.

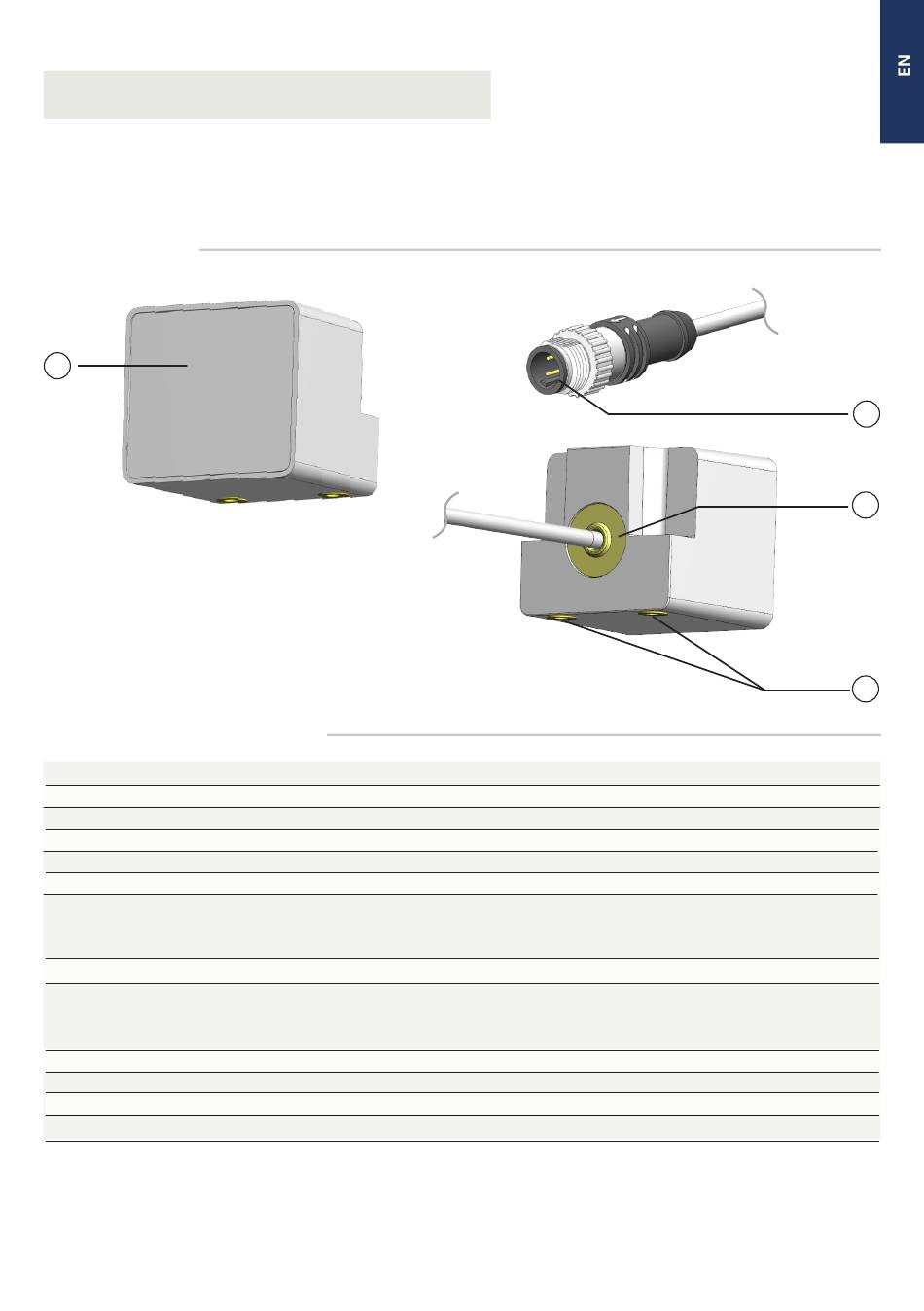

DESCRIPTION
1
1. radar antenna
2. connector (4 pin)
3. LED: - flashes after power-on
- lights up when the sensor detects motion
Remote control access
4. mounting nut
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage:
Max. power consumption:
Output:
Max. switching voltage:
Max. switching current:
Temperature range:
Dimensions:
Cable length:
Degree of protection:
CGS-MF
microwave doppler radar
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm
2
motion
5 cm/s (measured in sensor axis)
12 V to 24 V DC +30% / -10%
approved Class II SELV limited power source. This requirement consists of the need
for double insulation between primary voltages and the Equipment supply.)
< 1.5W
Opto (galvanic isolation - polarity free )
42V AC/DC
100mA
from -30 °C to + 65 °C
40.5mm (L) x 36 mm (H) x 36 mm (W)
50cm + 5m cable with connector (optional)
IP67
Specifications are subject to changes without prior notice. Measured in specific conditions.
(The Equipment must be powered by an
2
3
4
