BEA IXIO-DT3 User Manual

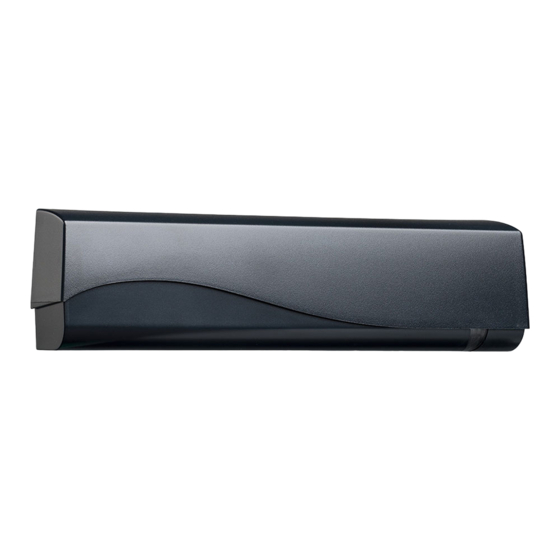

Opening & safety sensor for automatic sliding doors
Hide thumbs Also See for IXIO-DT3:

Advertisement

Table of Contents

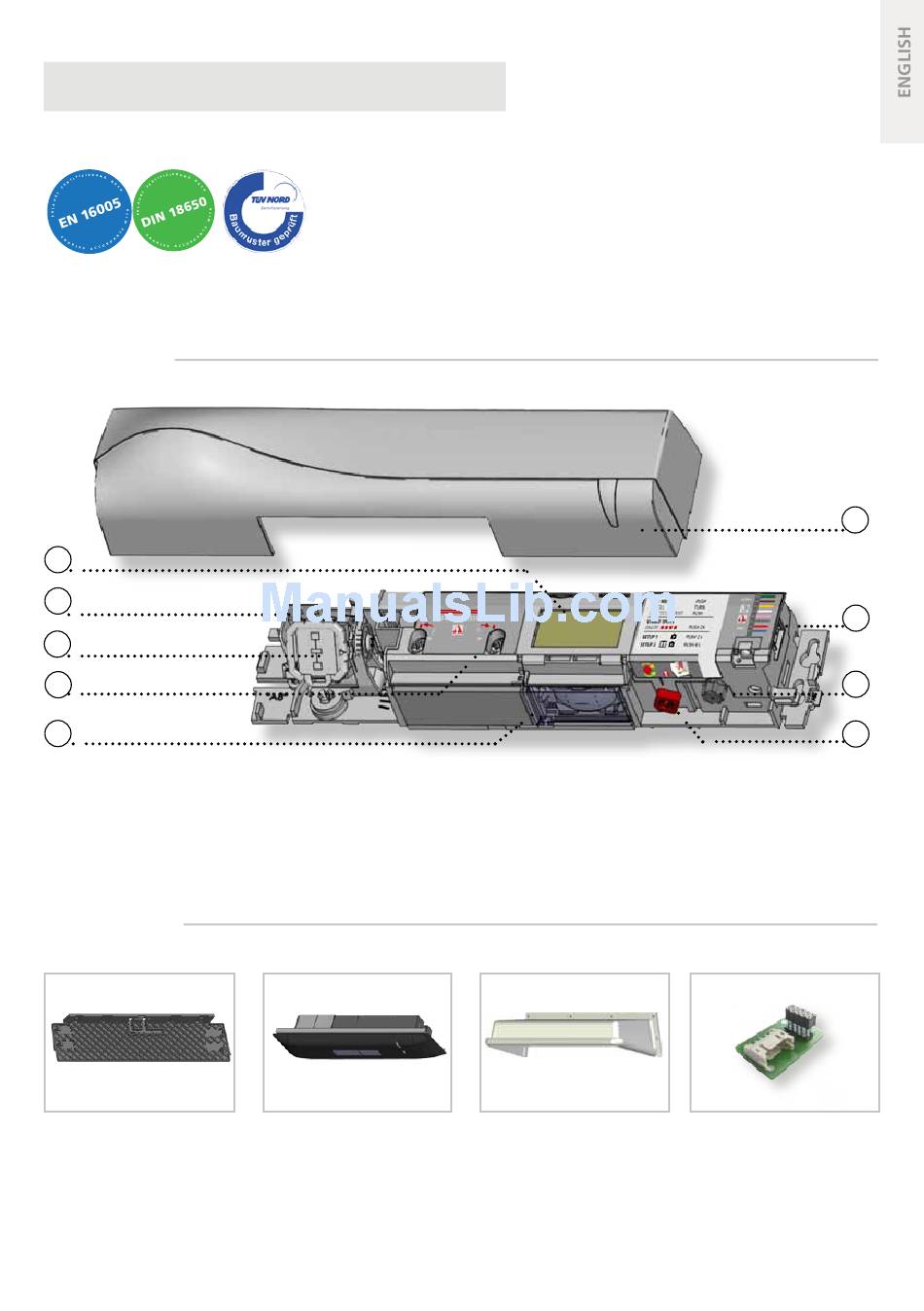

DESCRIPTION
1
2
3
4
5
ACCESSORIES
BA: Bracket Accessory
1.
LCD
2.
radar antenna (narrow field)
3.
radar antenna (wide field)
4.
AIR-curtain width adjustment
5.
AIR-lenses
CA: Ceiling Accessory
IXIO-DT3
Opening & safety sensor
for automatic sliding doors
(according to EN 16005 and DIN 18650,
including emergency exits)
User's Guide for product version 0300 and higher
See product label for serial number
6.
cover
7.
main connector
8.
main adjustment knob
9.
AIR-curtain angle adjustment knob
RA: Rain Accessory
6
7
8
9
Retrofit interface

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IXIO-DT3 and is the answer not in the manual?

Questions and answers

Related Manuals for BEA IXIO-DT3

Summary of Contents for BEA IXIO-DT3

  • Page 1 IXIO-DT3 Opening & safety sensor for automatic sliding doors (according to EN 16005 and DIN 18650, including emergency exits) User’s Guide for product version 0300 and higher See product label for serial number DESCRIPTION cover radar antenna (narrow field) main connector...

  • Page 2: Mounting And Wiring

    MOUNTING & WIRING GREEN 12-24 V POWER SUPPLY BROWN AC-DC YELLOW OPENING INPUT WHITE PINK GREY SAFETY INPUT TEST BLUE OUTPUT YE/BK + OPENING INPUT WH/BK - FOR EMEGENCY EXITS * Output status when sensor is operational TIP! ** For compliance with EN 16005 and DIN 18650, Fixation is compatible with the ACTIV8.
  • Page 3 INFRARED SAFETY FIELD DOOR CLOSER max. 9 cm** AWAY PUSH If necessary, adjust the AIR-curtain Activate the visible spots.* angle (from -7° to 4°). * Visibility depends on external conditions. When spots are not visible, use the Spotfinder to locate the curtains. ** The distance between the inner curtain of the inside door sensor and the inner curtain of the outside door sensor should always be smaller than 20 cm.

  • Page 4: Navigating In Menus

    HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING To adjust contrast, push and turn Negative display = active output Opening Safety the grey button simultaneously. impulse During normal function only. FACTORY vALUE vS. SAvED vALUE displayed value = saved value displayed value = factory value NAvIGATING IN MENUS Select your language before entering...

  • Page 5: Overview Of Settings

    OvERvIEW OF SETTINGS Back More factory values shopping critical increased immunities + 1 curtain PRESETTINGS standard street env. increased immunities + redirection = motion and presence RAD: FIELDSIzE small > > > > > > > large current freq NO: normally open freq: frequency output RAD: OUTPUTAIR NC: normally closed...

  • Page 6: Troubleshooting

    TROUBLESHOOTING The sensor signals The ORANGE LED Cut and restore power supply. an internal fault. flashes 1 x. If orange LED flashes again, replace sensor. Check power supply The ORANGE LED The power supply is too (in the diagnostics menu of the LCD). flashes 2 x.

  • Page 7: Installation

    INSTALLATION The sensor should be Do not cover the sensor. Avoid moving objects Avoid highly fixed firmly to avoid and light sources in reflective objects in extreme vibrations. the infrared field. the detection field. MAINTENANCE It is recommended to clean Do not use aggressive the optical parts at least once products to clean...

  • Page 8: Technical Specifications

    All values measured in specific conditions. BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA.BE BEA hereby declares that the IXIO-DT3 is in conformity with the basic requirements and the other relevant provisions of the directives 1999/5/EC and 2006/42/EC.
