Download the BEA DECODER app
for a quick overview
of settings

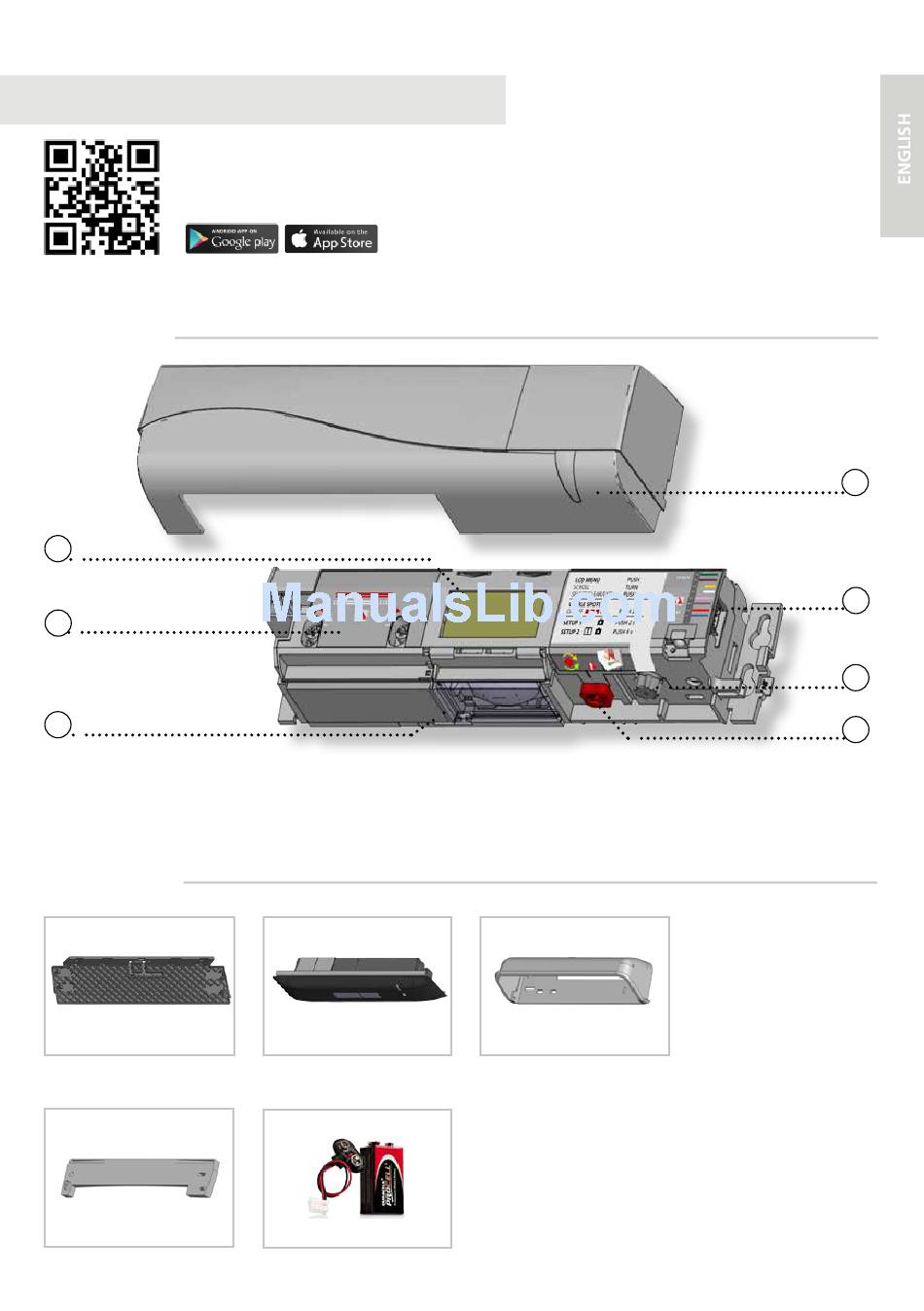

DESCRIPTION
1
2
3
ACCESSORIES
BA: Bracket accessory
CDA: Curved door accessory
1.
LCD
2.
IR-curtain width adjustment
3.
IR-lenses
CA: Ceiling accessory
9 V battery
IXIO-ST
Safety sensor
for automatic sliding doors
(according to EN 16005 and DIN 18650)
User's Guide for product version 0403 and higher
See product label for serial number
4.
cover
5.
main connector
6.
main adjustment knob
7.
IR-curtain angle adjustment knob
RA: Rain accessory
4
5
6
7
Advertisement
Table of Contents
Related Manuals for BEA IXIO-ST
Summary of Contents for BEA IXIO-ST
- Page 1 IXIO-ST Safety sensor Download the BEA DECODER app for a quick overview for automatic sliding doors of settings (according to EN 16005 and DIN 18650) User’s Guide for product version 0403 and higher See product label for serial number DESCRIPTION...
-
Page 2: Navigating In Menus
HOW TO USE THE LCD? DISPLAY DURING NORMAL FUNCTIONING To adjust contrast, push and turn Negative display = active output Opening Safety the grey button simultaneously. impulse During normal function only. FACTORY VALUE VS. SAVED VALUE displayed value = saved value displayed value = factory value NAVIGATING IN MENUS Select your language before... -
Page 3: Mounting And Wiring
IXIO-ST: INSTALLATION GUIDE MOUNTING & WIRING GREEN 12-24 V POWER SUPPLY BROWN AC-DC YELLOW OPENING INPUT WHITE PINK GREY SAFETY INPUT TEST BLUE OUTPUT * Output status when sensor is operational TIP! ** For compliance with EN 16005 and DIN 18650, Wiring is compatible with the IRIS. - Page 4 SETTINGS Choose one of the following presettings or adjust the sensor manually (see p.5): STANDARD : standard in- and outdoor installations CRITICAL ENVIRONMENT : critical installations due to surroundings or weather SHOPPING STREET : installations in narrow streets with pedestrian traffic SETUP STEP OUT OF THE INFRARED FIELD! SETUP 1 (QUICK)
-
Page 5: Overview Of Settings
OVERVIEW OF SETTINGS Back More factory values for IR immunity and IR number shopping critical increased immunity PRESETTINGS standard street env. increased immunity, 1 curtain < 2.8 m > 2.8 m For conformity to EN 16005 or DIN 18650 at a IR: IMMUNITY normal mounting height of 2.8 or more, use values 6 and 7. -
Page 6: Troubleshooting
TROUBLESHOOTING The sensor signals ORANGE LED flashes 1 x. Replace sensor. an internal fault. The power supply is too Check power supply ORANGE LED flashes 2 x. (in the diagnostics menu of the LCD). low or too high. Check wiring. Decrease the angle of the IR-curtains. -
Page 7: Installation
LED-SIGNAL Presence detection LED flashes LED flashes LED flashes LED flashes LED is off red-green quickly x times INSTALLATION The sensor should be Do not cover the sensor. Avoid moving objects Avoid highly fixed firmly to avoid reflective objects in and light sources in extreme vibrations. -
Page 8: Technical Specifications
All values measured in specific conditions. BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] | T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@BEA.BE | WWW.BEA-SENSORS.COM BEA hereby declares that the IXIO-ST is in conformity with the basic requirements and the other relevant provisions of the directives 2014/30/EU 2006/42/EC and 2011/65/EU.
