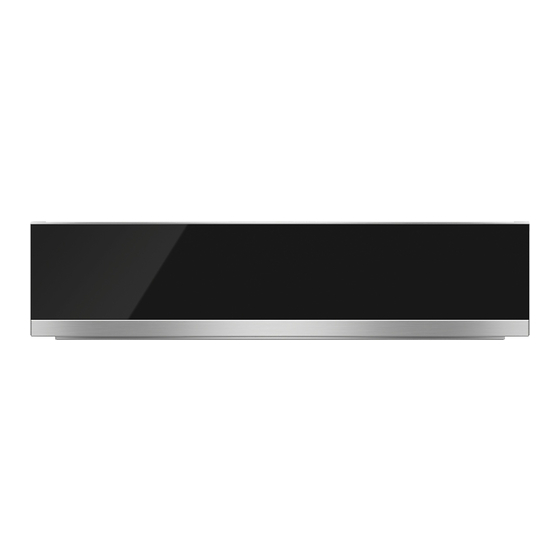

Built-in vacuum sealing drawer
Hide thumbs
  • Contents

Advertisement

Quick Links

x
Download this manual
Download this manual
User
Manual
Thanks for choosing ImportAppliances for your kitchen appliance purchase.
We hope you are enjoying the convenience, quality and affordability of your
new appliance.
If you have any issues or questions, please contact us via email:
info@ImportAppliances.com
THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.

Advertisement

Table of Contents
loading

  Also See for Miele EVS 6214

Miele EVS 6114 Operating And Installation Instructions
Miele EVS 6114 Operating And Installation Instructions 52 pages

  Related Manuals for Miele EVS 6214

  Summary of Contents for Miele EVS 6214

  • Page 1 User Manual Thanks for choosing ImportAppliances for your kitchen appliance purchase. We hope you are enjoying the convenience, quality and affordability of your new appliance. If you have any issues or questions, please contact us via email: info@ImportAppliances.com THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
  • Page 2 Operating and installation instructions Built-in vacuum sealing drawer To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 10 688 220 THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.

  • Page 3: Table Of Contents

    Contents Warning and Safety instructions................ 4 Caring for the environment ................ 12 Guide to the appliance .................. 13 Overview of the drawer ..................13 Accessories supplied .................... 14 Controls and display ...................  15 Cleaning for the first time ...................  16 Operation......................
  • Page 4 Contents Warranty ........................ 52 THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.

  • Page 5: Warning And Safety Instructions

    They contain important notes on installa- tion, safety, use and maintenance. Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions. Keep these instructions in a safe place and ensure that new users are familiar with the content.
  • Page 6 Warning and Safety instructions Correct application  The drawer is intended for domestic use and use in other similar environments.  The drawer is not intended for outdoor use.  The drawer is only for domestic use to vacuum and seal food in vacuum bags intended for this purpose, to vacuum seal preserving jars, jars with twist-off lids and vacuum-proof containers made of plastic or stainless steel.
  • Page 7 Warning and Safety instructions Safety with children  Children must be kept away from the drawer unless they are con- stantly supervised.  Children 8 years and older may only use the drawer unsupervised if they have been shown how to use it in a safe way and can recog- nise and understand the consequences of incorrect operation.
  • Page 8  Unauthorised installation, maintenance and repairs can cause considerable danger for the user. Installation, maintenance and re- pairs must only be carried out by a Miele authorised technician.  A damaged drawer can be dangerous. Always check for visible signs of damage. Never use a damaged appliance.
  • Page 9 Miele authorised service technician. Otherwise the guarantee is invalidated.  Miele can only guarantee the safety of the appliance when genu- ine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.
  • Page 10 Warning and Safety instructions Correct use  Danger of burning. The sealing bar becomes hot during operation. The weld seam of the vacuum sealing bag is also heated to a very high temperature during the sealing process. Do not touch the seal- ing bar or the seam immediately after the vacuum sealing process.
  • Page 11 Warning and Safety instructions  Never insert the tubes attached to the drawer into any body ori- fices.  If the drawer is installed behind a furniture panel (e.g. a door), en- sure that the door is never closed whilst the drawer is in use. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the drawer, the housing unit and the floor.
  • Page 12 Warning and Safety instructions Cleaning and care  Do not use a steam cleaning appliance to clean the drawer. The steam could reach electrical components and cause a short cir- cuit. THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.

  • Page 13: Caring For The Environment

    / recycling centre for electrical and electronic ap- pliances, or contact your dealer or Miele for advice. You are also respons- ible (by law, depending on country) for deleting any personal data that may be stored on the appliance being disposed of.

  • Page 14: Guide To The Appliance

    Guide to the appliance Overview of the drawer a Air filter cover (see "Installation") d Push2open mechanism The drawer can be opened by press- b Glass lid with chamber seal ing lightly in the middle of the drawer Push down on the little black triangle front.

  • Page 15: Accessories Supplied

    Guide to the appliance Accessories supplied The accessories supplied with your ap- pliance as well as a range of optional ones are available to order from Miele (see "Optional accessories"). The vacuum sealing bags supplied are not suitable for use in steam ovens with pressure (DGD xxxx).

  • Page 16: Controls And Display

    Controls and display Sensor controls The sensors react to touch. Every touch on the sensors is confirmed by an audible tone. Sensor Function control  Switching on and off  Setting the vacuum level  Setting the sealing level / sealing the vacuum bag early ...

  • Page 17: Cleaning For The First Time

    Cleaning for the first time  Please stick the extra data plate for the appliance, supplied with this doc- umentation, in the space provided in the "After sales service, data plate, guarantee" section of this booklet.  Remove any protective foil and sales stickers.

  • Page 18: Operation

    Operation – Only vacuum seal food in bags of a Important information on use maximum size of 250 x 350 mm – Only vacuum seal food. (sealed edge bags) or 240 x 350 mm (tubular bags). – Only use food that is fresh and in good condition. –...

  • Page 19: Tips

    Operation Tips Preserving jars and jars with twist-off lids must only be vacuum sealed in – Freeze liquids before vacuum sealing the closed vacuum chamber. them. You can then fill the bags ²/₃ full. – To guarantee the minimum gap of –...

  • Page 20: Vacuum Sealing Levels

    Operation Vacuum sealing levels There are 3 vacuum sealing levels. The higher the vacuum level selected, the greater the vacuum. Vacuum Use for sealing level    Packaging, portioning and storing Suitable for – food that is prone to squashing, e.g. lettuce, berries or crisps; –...

  • Page 21: Using The Sealing Levels

    Operation Using the sealing levels There are 3 levels for sealing vacuum bags. The sealing level to select depends on the material thickness of the bag: the stronger the bag, the higher the sealing level. Level 3 is recommended for the vacuum sealing bags supplied. Tip: The sealing bar will get progressively hotter when carrying out a number of consecutive vacuuming processes.

  • Page 22: Vacuuming And Sealing Bags

    Operation Vacuuming and sealing bags  Risk of injury! Damage to the glass lid can cause  Fill the vacuum sealing bag. implosion.  Open the drawer and the glass lid. Do not under any circumstances use  Place the vacuum sealing bag in the the drawer if the glass lid is dam- vacuum chamber so that the open aged.

  • Page 23: Sealing The Bag Early

    Operation After the vacuuming process Sealing the bag early An acoustic tone will sound. You can end the vacuuming process before reaching the selected vacuuming  Open the glass lid. level and seal the bag early.  Danger of burning! ...

  • Page 24: Vacuum Sealing Preserving Jars And Jars With Twist-Off Lids

    Operation Vacuum sealing preserving jars  Risk of injury! and jars with twist-off lids Damage and cracks in jars or glass/ twist-off lids can cause implosion.  Close the jar with its appropriate lid Only vacuum jars and lids which are and rubber seal or with the twist-off in perfect condition.
  • Page 25 Operation After the vacuuming process An acoustic tone will sound.  Open the glass lid.  Danger of burning! The sealing bar is hot. Do not touch the sealing bar immedi- ately after the vacuuming process.  Remove the jar from the vacuum chamber.

  • Page 26: Vacuum Sealing External Containers

    Operation Vacuum sealing external con-  Risk of injury! tainers External glass containers can im- plode during vacuuming. The process for vacuuming a container Only use vacuum-proof containers ® from the caso vacuum container set is made of plastic or stainless steel. described below.
  • Page 27 Operation  Open the drawer and the glass lid. If an excessive amount of bubbles form you can cancel the vacuuming process by pressing the  sensor (see "Cancelling the vacuuming pro- cess"). After the vacuuming process An acoustic tone will sound. ...

  • Page 28: After Use

    Operation After use Cancelling a vacuuming pro- cess  Touch the  sensor to switch the drawer off. You can cancel a vacuuming process at any time, e.g. if you notice during the  Clean and dry the drawer and any ac- process that the edge of the bag is not cessories as described in "Cleaning positioned correctly or that the closure...

  • Page 29: Cleaning And Care

    Cleaning and care  Allow the sealing bar to cool before Risk of injury! cleaning it. The steam from a steam cleaner could reach electrical components  Switch the drawer off to clean it. and cause a short circuit. Do not use a steam cleaner to clean ...

  • Page 30: Cleaning The Drawer Front And Glass Lid

    Cleaning and care Cleaning the vacuum adapter If soiling is left on for any length of time, it may become impossible to  Clean the vacuum adapter with a remove. clean sponge and a solution of hot Surfaces may suffer discolouration or water and washing-up liquid or a damage.

  • Page 31: Carrying Out A Drying Cycle

    Cleaning and care Carrying out a drying cycle When carrying out the drying cycle, the vacuum chamber must be empty When food is vacuumed, moisture gets and free of liquid residues. into the oil circulation system in the va- Clean and dry the vacuum chamber cuum pump.

  • Page 32: Problem Solving Guide

    The drawer will not The safety screws on the back of the drawer have not open. been removed.  Call the Miele Service Department. The drawer cannot be The appliance is not correctly plugged in and switched on. switched on at the mains socket.
  • Page 33 Problem solving guide Problem Cause and remedy The vacuuming process The oil in the vacuum pump has become extremely takes longer than ex- hot. pected.  Leave the drawer to cool for an hour before start- ing another vacuuming process. ...
  • Page 34  Flatten the rubber. The sealing bar and/or the counterpressure bar is damaged.  Call Miele to have it replaced. The bag is not maintain- The vacuum sealing bag has been damaged by sharp ing the vacuum al- pointed objects, e.g. pointed pasta shapes or a bone.
  • Page 35 Problem solving guide Problem Cause and remedy The weld seam is de- The sealing bar and/or counterpressure bar are dirty fective or not properly or there are liquid residues on the sealing bar. sealed in one or more  Clean and dry the sealing bar and/or counterpres- places.
  • Page 36  When carrying out a number of consecutive vacu- uming processes, wait a minimum of 2 minutes between each process to prevent the oil from overheating again.  If the problem occurs again, contact the Miele Ser- vice Department. The vacuuming process The required vacuum could not be achieved.

  • Page 37: Optional Accessories

    180 x 280 mm (W x H), D = 90 µ the Miele Webshop. VB 2435 (pack of 50) They can also be ordered from Miele (see end of this booklet for contact de- For storing and sous vide cooking of li- tails) or from your Miele dealer.

  • Page 38: Safety Instructions For Installation

    Miele as being suitable. Miele cannot guarantee trouble-free operation if the appliance is operated in combination with appliances other than those quoted by Miele as being suitable.  The base on which the drawer and the combination appliance are fitted must be fixed in place and must support the weight of both ap- pliances.

  • Page 39: Installation Notes

    Installation notes When building in the drawer with a combination appliance, the combina- tion appliance is placed on top of the drawer without the need for an interim shelf. All dimensions are given in mm. THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.

  • Page 40: Building-In Dimensions

    Building-in dimensions Installation in a base unit Installation in a tall unit a Cut-out for ventilation a Cut-out for ventilation b Building-in dimension including b Building-in dimension including mains supply cable plug connector mains supply cable plug connector Mains connection cable, Mains connection cable L = 2200 mm L = 2200 mm...
  • Page 41 Building-in dimensions EVS with H 2xxx B(P) / EVS with H 6xxx BM(BP) / H 6xxx B(P) M 61xx / M 62xx a Ventilation cut-out required when in- a Ventilation cut-out required when in- stalled with a pyrolytic oven stalled with a pyrolytic oven b Building-in dimension including b Building-in dimension including mains supply cable plug connector mains supply cable plug connector...
  • Page 42 Building-in dimensions EVS with DGM 6800 EVS with DG 6x00 / DG 6x0x a Ventilation cut-out required when in- a Ventilation cut-out required when in- stalled with a steam oven stalled with a steam oven with mi- crowave b Building-in dimension including b Building-in dimension including mains supply cable plug connector Mains connection cable mains supply cable plug connector...
  • Page 43 Building-in dimensions EVS with DGC 6300 / DGC 6400 EVS with DGC 6500 / DGC 6600 / DGC 680x a Ventilation cut-out required when in- stalled with a steam combination a Ventilation cut-out required when in- oven stalled with a steam combination oven b Building-in dimension including mains supply cable plug connector b Building-in dimension including Mains connection cable...
  • Page 44 Building-in dimensions EVS with DGC 6660 / DGC 686x EVS with DGD 4635 / DGD 6xx5 a Ventilation cut-out required when in- a Filler panel AB 45-7 (optional ac- stalled with a steam combination cessory) oven b Building-in dimension including b Building-in dimension including mains supply cable plug connector mains supply cable plug connector Mains connection cable...
  • Page 45 Building-in dimensions EVS with CVA 6401 / CVA 68xx a Ventilation cut-out for installation in combination with a coffee machine b Building-in dimension including mains supply cable plug connector Mains connection cable L = 2200 mm * Glass front / ** metal front THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.

  • Page 46: Installation

    Installation Fitting the air filter and removing the  Avoid damaging the drawer! safety screws The drawer has an integrated va- cuum pump which contains oil. To prevent oil from leaking out, the drawer must be transported and stored in a horizontal position only. Do not tilt the drawer and do not stand it up on its side.
  • Page 47 Installation  Remove the safety screws  from  Screw the air filter  onto the va- the back of the drawer. cuum pump using a screwdriver.  Avoid damaging the drawer! Remove the air filter  before trans- porting the drawer and plug the va- cuum pump with the transit device .
  • Page 48 Installation Fitting the anti-tipping mechanism Building in the drawer  Risk of injury! The drawer is heavy and will tip for- wards when open. Installation must be carried out by two people. Keep the drawer closed until the anti-tipping mechanism supplied has been fitted to the side walls of the housing unit.
  • Page 49 Installation Building in and connecting the When the drawer is first connected, or drawer after an interruption to the power sup- ply, all of the sensors and indicators in  Check that the air filter is fitted and the display will light up for approx. the safety screws have been removed 10 seconds for testing (initialisation).
  • Page 50 Installation Aligning the front of the drawer After building in the combination appli- ance, it may be necessary under certain circumstances to align the front of the drawer and adjust the gap between the drawer and the combination appliance. To help you do this, there are 2 screws behind the drawer front with which the front is fixed to the drawer housing.

  • Page 51: Electrical Connection

    Residual current device  Danger of injury. For extra safety, it is advisable to pro- Miele cannot be held liable for unau- tect the drawer with a suitable residual thorised installation, maintenance current device (RCD) with a trip range of and repair work as this can be dan- 30 mA.
  • Page 52 H 05 VV-F (PVC-in- by mistake. sulated), available from Miele. To disconnect the appliance from the mains power supply, do one of the fol- lowing depending on installation: Safety fuses ...

  • Page 53: After Sales Service

    In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or Miele Service. Contact information for Miele Service can be found at the end of this document. Please note that telephone calls may be monitored and recorded for training pur- poses and that a call-out charge will be applied to service visits where the problem could have been resolved as described in this booklet.
  • Page 54 THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
  • Page 55 THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
  • Page 56 Fax: 011-46 900 001 Fax: +65 6735 1161 800-MIELE (64353) E-mail: customercare@miele.in E-Mail: info@miele.com.sg E-Mail: info@miele.ae Internet: www.miele.in Internet: www.miele.sg Website: www.miele.ae Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
  • Page 57 EVS 6114 / EVS 6214  en-GB M.-Nr. 10 688 220 / 01 THE EASIEST WAY TO SELF-IMPORT APPLIANCES DIRECT FROM EUROPE.
