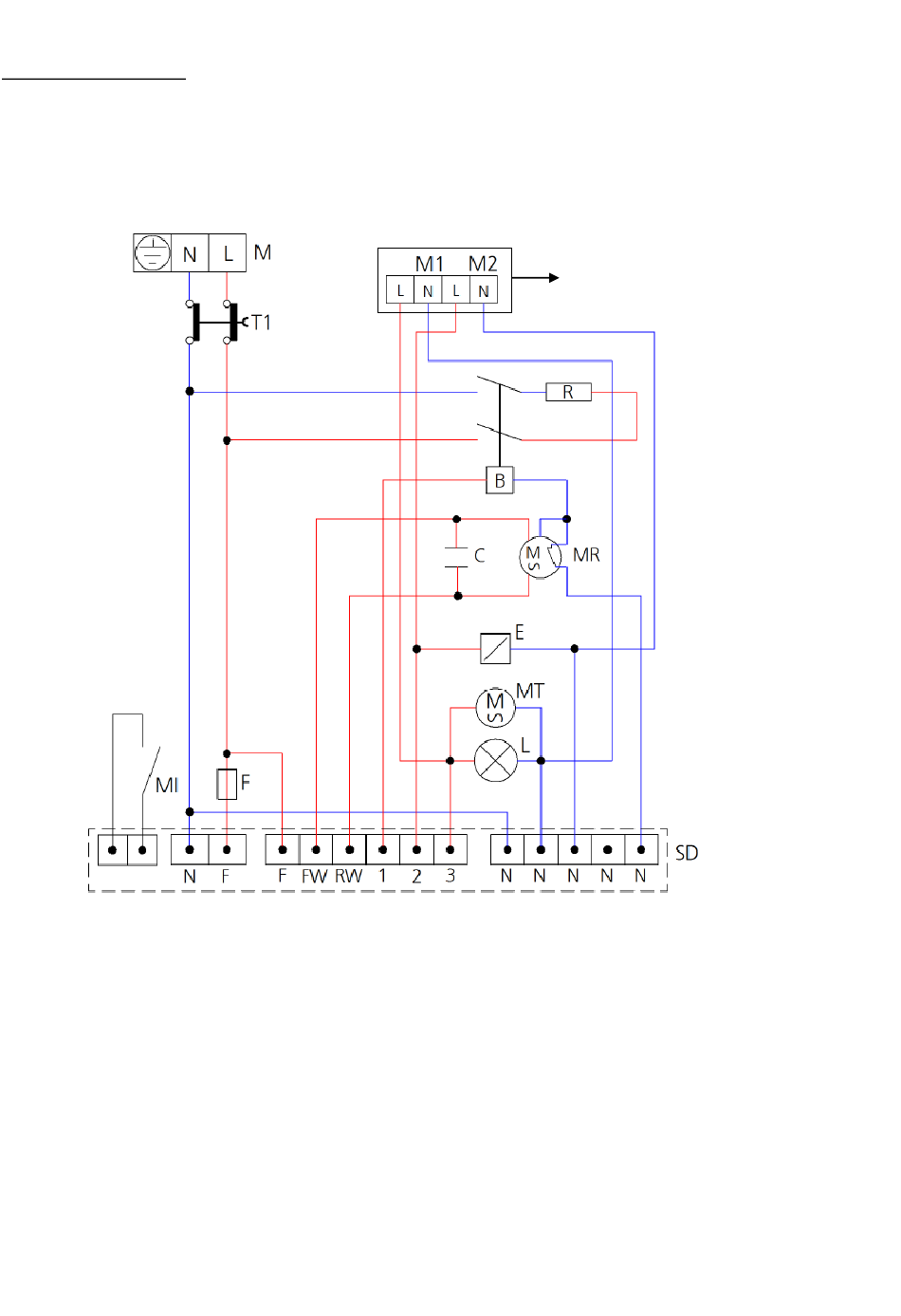

25. Wiring layouts

MODD. EKF 423 D UD - EKF 423 D UD/0/015 –EKF 443 D UD
M Power terminal board
T1 Safety thermostat
MI Door microswitch
SD Electronic card
E Humidifier solenoid-valve
F Fuse
page. 16 ________________________________________________________________________________________
Key
B Contactor coil
L Oven lighting lamp
R Circular heating-element
MR Oven motorised ventilator
MT Tangential motorised ventilator
C Capacitor
Only for mod. EKF 423 DUD/0/015
