TECNOEKA Srl ______________________________________________________________ use and instruction manual

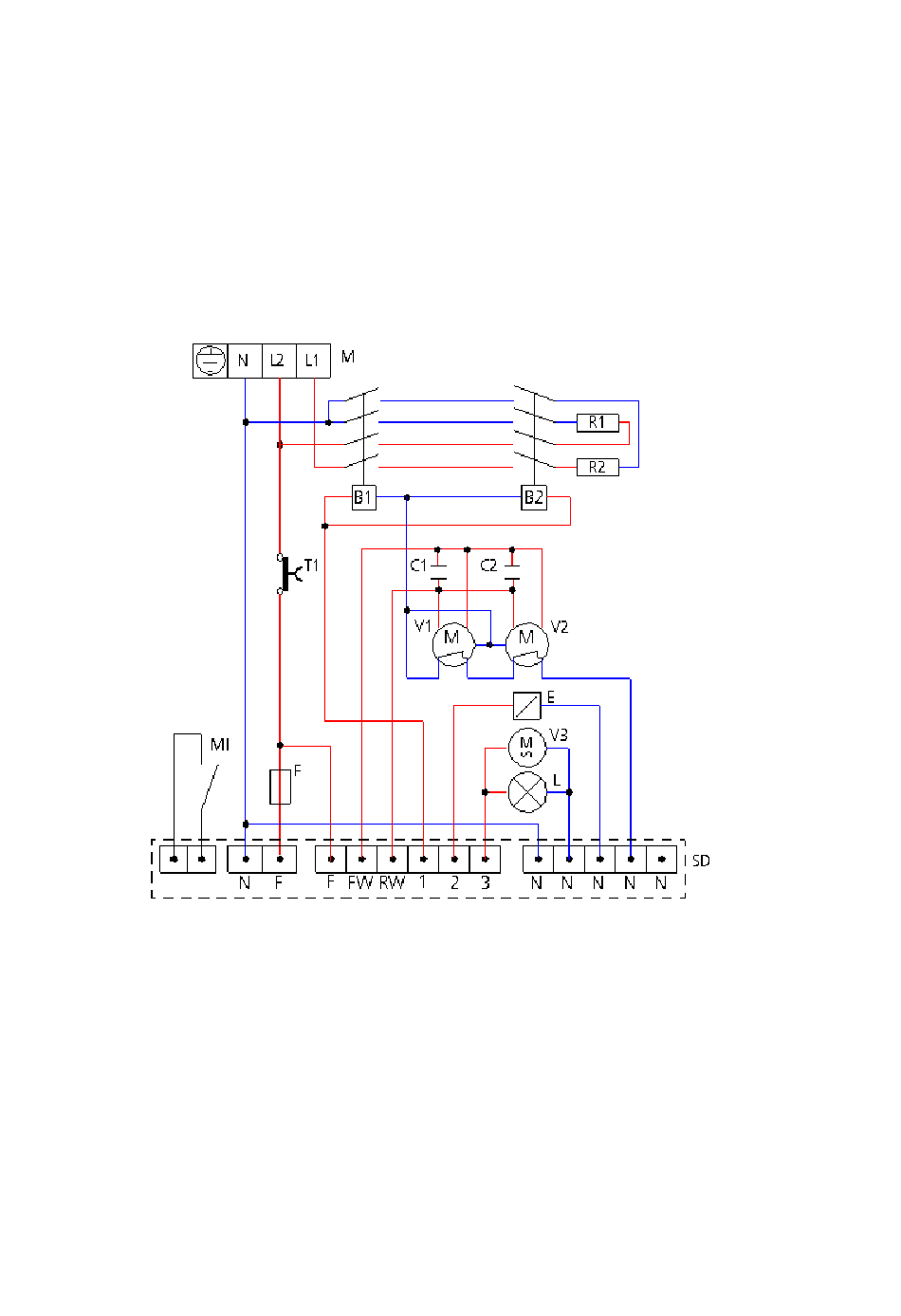

MODD. EKF 411 D UD – EKF 416 D UD – EKF 464 D UD
EKF 464 D UD/001- EKF464DUD/0/037 – EKF 411 DUD/0/037
EKF 411 D AL UD - EKF 416 D AL UD - EKF 464 D AL UD
M Power terminal board
T1 Safety thermostat
SD Electronic card
MI Door microswitch
E Humidifier solenoid-valve
F Fuse
page. 18 ________________________________________________________________________________________
EKF 464 DALUD/0/037
Key
B1-B2
R1-R2
V1-V2
V3
C1-C2
L
Contactor coils
Circular heating-element
Oven motorised ventilator
Tangential motorised ventilator
Capacitor
Oven lighting lamp
