Electric Ovens rev. 0 ________________________________________________ EKF 423 P - EKF 423 UP

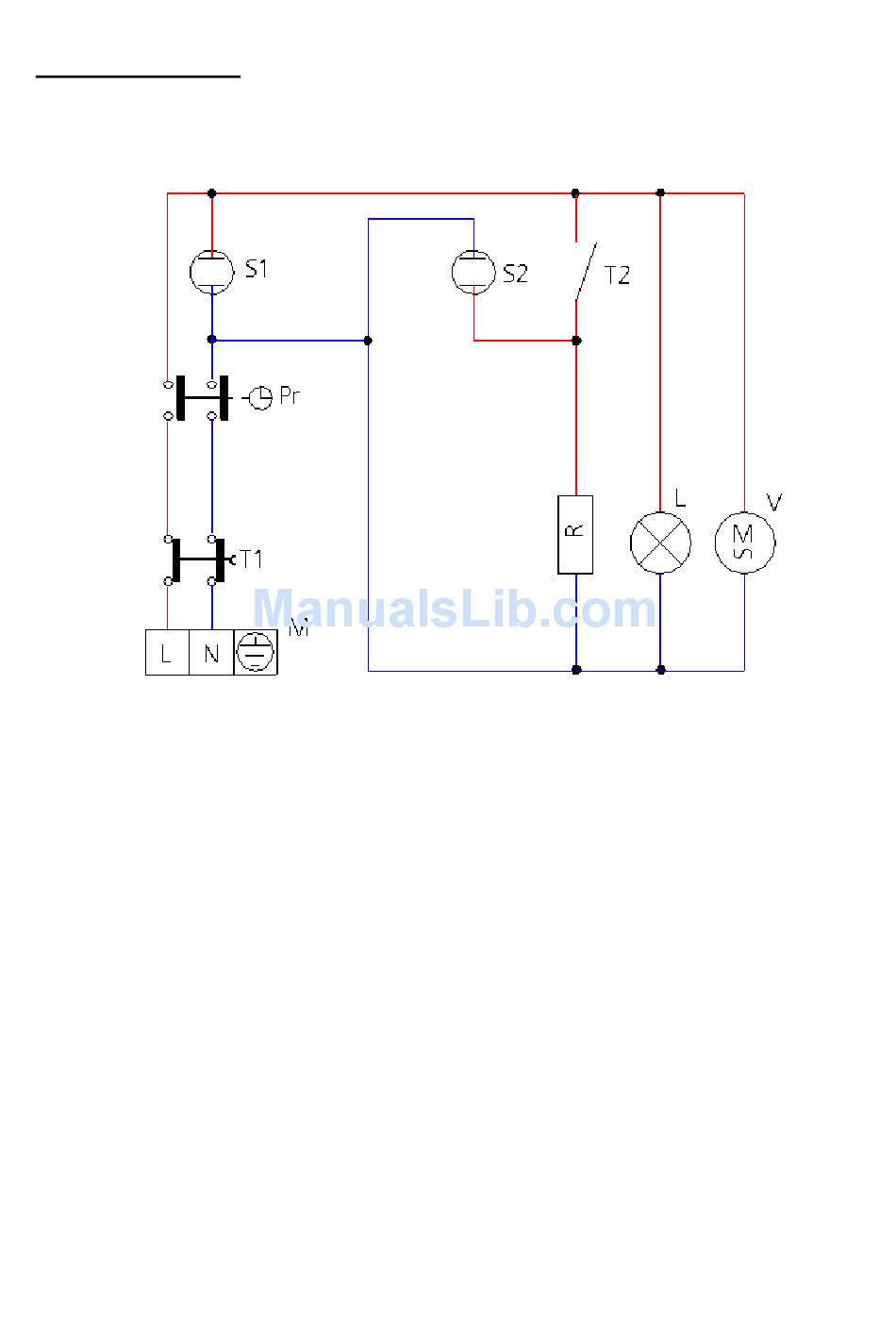

13. Wiring layouts

M
Power terminal board
Pr
"End of cooking" programmer
T1
Safety thermostat
T2
Oven thermostat
L
Oven lighting lamp
_________________________________________________________________________________ page 11
EKF 423 P
Key
S1
Programmer indicator light
S2
Thermostat indicator light
R
Circular heating-element
V
Oven motorised ventilator
