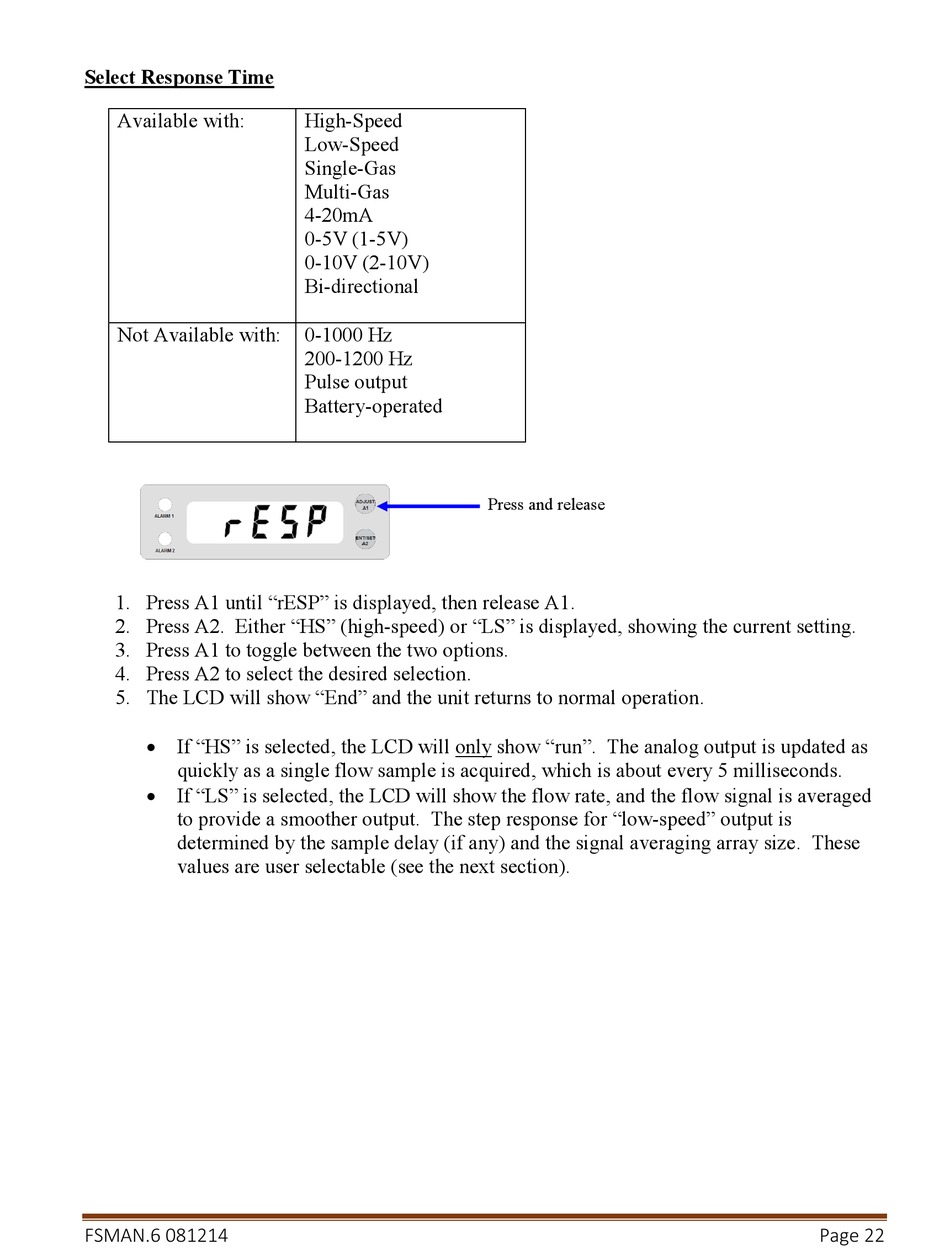

Select Response Time

Available with:
Not Available with:
1. Press A1 until "rESP" is displayed, then release A1.
2. Press A2. Either "HS" (high-speed) or "LS" is displayed, showing the current setting.
3. Press A1 to toggle between the two options.
4. Press A2 to select the desired selection.
5. The LCD will show "End" and the unit returns to normal operation.
 If "HS" is selected, the LCD will only show "run". The analog output is updated as
quickly as a single flow sample is acquired, which is about every 5 milliseconds.
 If "LS" is selected, the LCD will show the flow rate, and the flow signal is averaged
to provide a smoother output. The step response for "low-speed" output is
determined by the sample delay (if any) and the signal averaging array size. These
values are user selectable (see the next section).
FSMAN.6 081214
High-Speed
Low-Speed
Single-Gas
Multi-Gas
4-20mA
0-5V (1-5V)
0-10V (2-10V)
Bi-directional
0-1000 Hz
200-1200 Hz
Pulse output
Battery-operated
Press and release
Page 22
