Wiring for Voltage Output Models

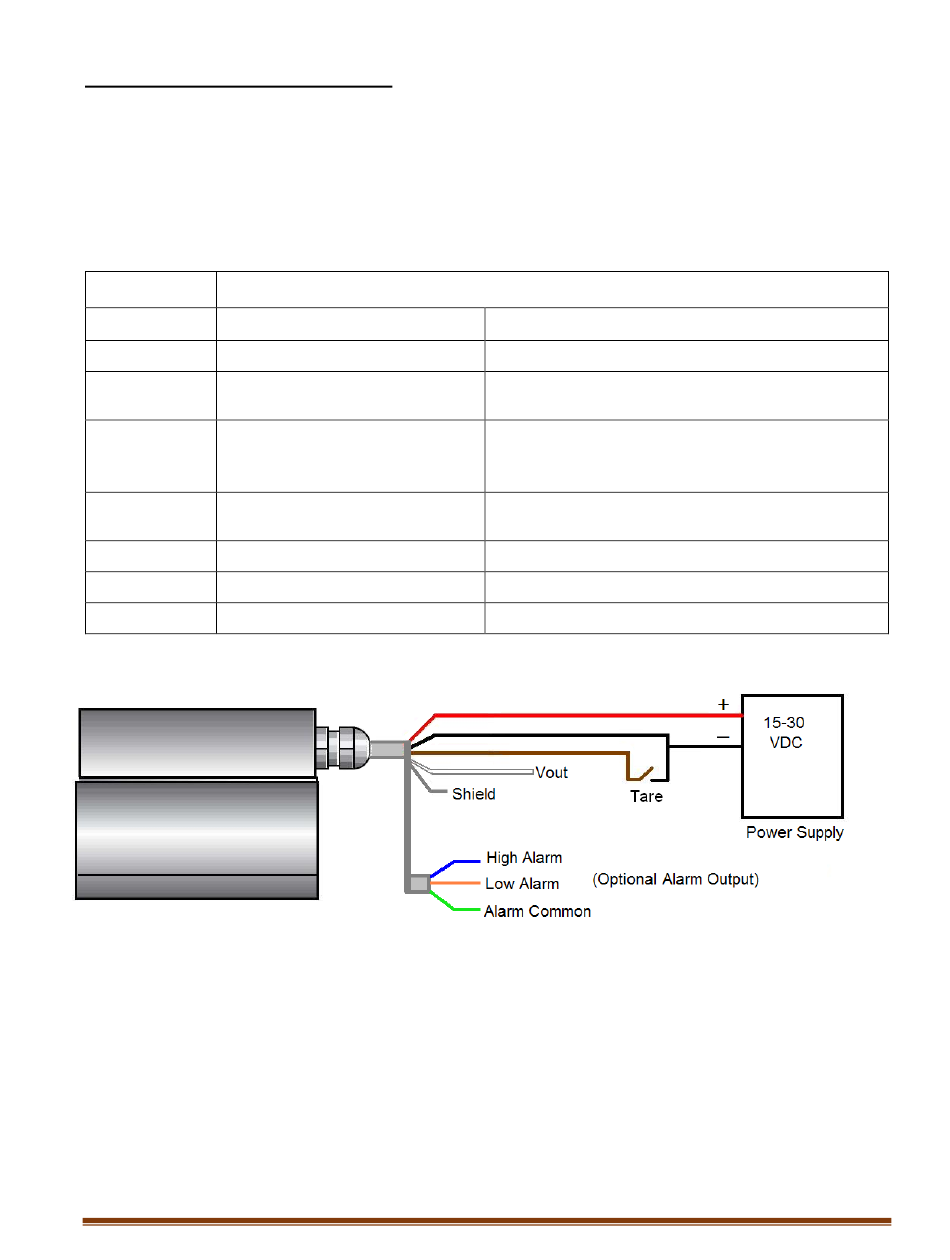

Figure 5 shows the wiring for voltage output models. (Optional wiring is also shown for alarm
outputs.) For 0-5V models, the supply voltage can be 10-30VDC.
Note: Output voltage range must be specified at the time of ordering. They cannot be
interchanged by the user.
Wire Color
Red Supply +
Black Supply -
Brown Tare
White Voltage Output
Shield Internally Grounded to
Chassis
Blue High Alarm Output
Orange Low Alarm Output
Green Alarm Common
FSMAN.6 081214
Function
15-30VDC
DC GND
Short to GND for 5 seconds to tare at zero
flow
0-5V (or 1-5V)
0-10V (or 2-10V)
Bi-directional (0-5V)
Open-collector
Open-collector
Emitter for both alarms
Figure 5. Voltage Output Wiring
