4.2.8 Unlocking a soft-locked driver/controller

To unlock a soft-locked driver/controller and regain full access to all menus:
1. Press M and + simultaneously for 5 seconds.
2. Press + or - until the display correctly reflects your choice:
a. YES (the driver/controller remains soft-locked)
b. NO (the driver/controller is unlocked)
3. Press M to confirm your selection. The display turns itself off after you have confirmed
your choice.

4.2.9 Carrying out a test run

You can carry out an RGBW test run with fade for each channel, to check if (a) all LEDs are
fully functional (b) you have correctly configured your LED groups in the SETUP menu.
To carry out the test run:
1. Press M, - and + simultaneously.
2. The connected LED groups are lit as follows:
for one second, LED group 1 (R) is lit
for one second, LED group 2 (G) is lit
for one second, LED group 3 (B) is lit
for one second, LED group 4 (W) is lit
for one second, LED group 1, 2, 3 and 4 (RGBW) are lit at the same time
- this sequence is repeated once more

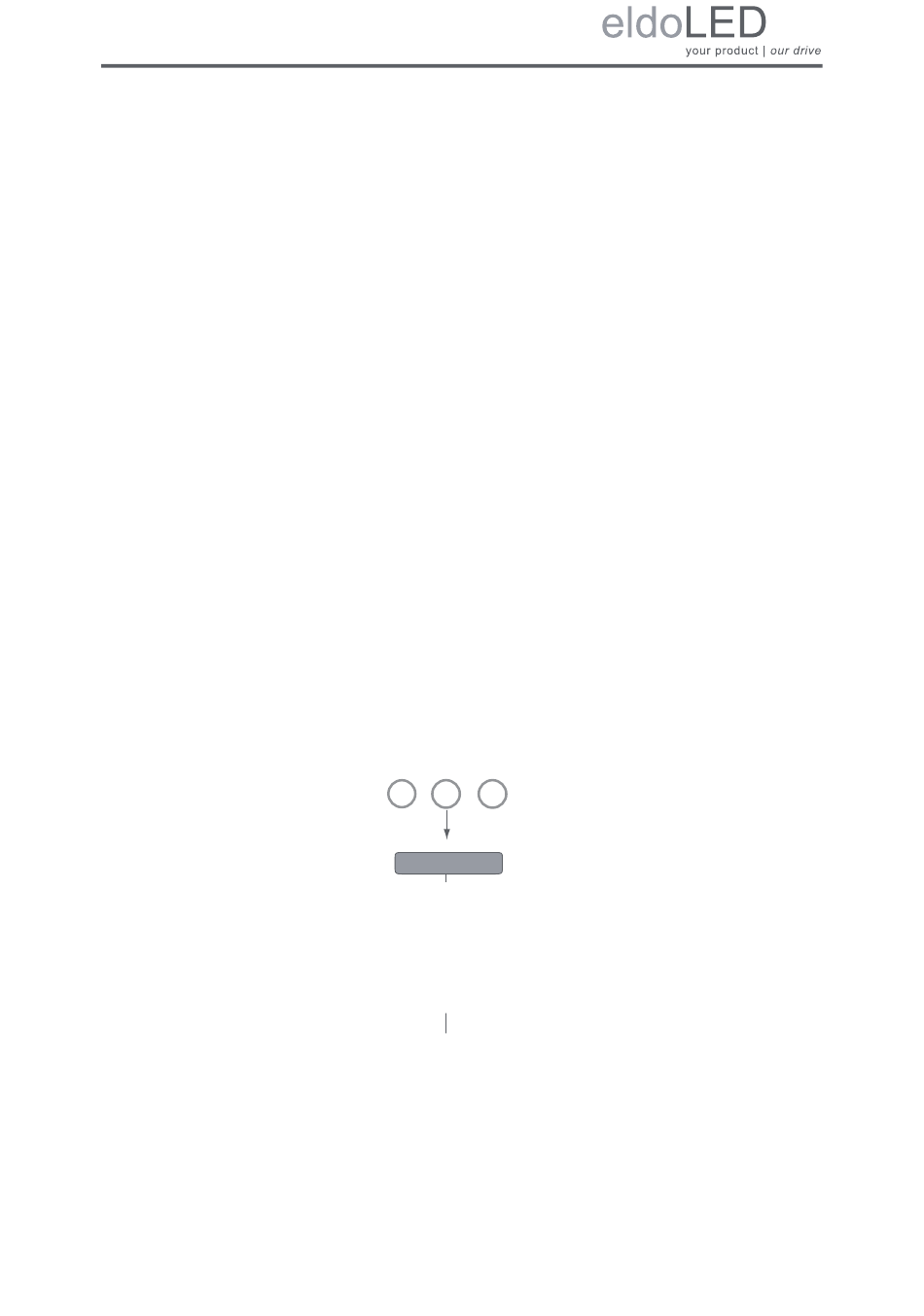

Figure 4.17: Carrying out a test run of the connected LEDs

-
M +
+ +
Test
TEST
R 1 sec
G 1 sec
B 1 sec
W 1 sec
RGBW 1 sec
R 1 sec
G 1 sec
B 1 sec
W 1 sec
RGBW 1 sec
display off
