Figure 4.6: Colr Settings For 3-3L; Figure 4.7: Colr Settings For 4-4L - eldoLED LINEARdrive User Manual

3-3L
3-3L: Three DMX channels are used for LED groups 1, 2 and 3. Group 4 is disabled.
INT (intensity) lets you set the intensity of the light output of each channel: 255 is full
on, 0 is off.

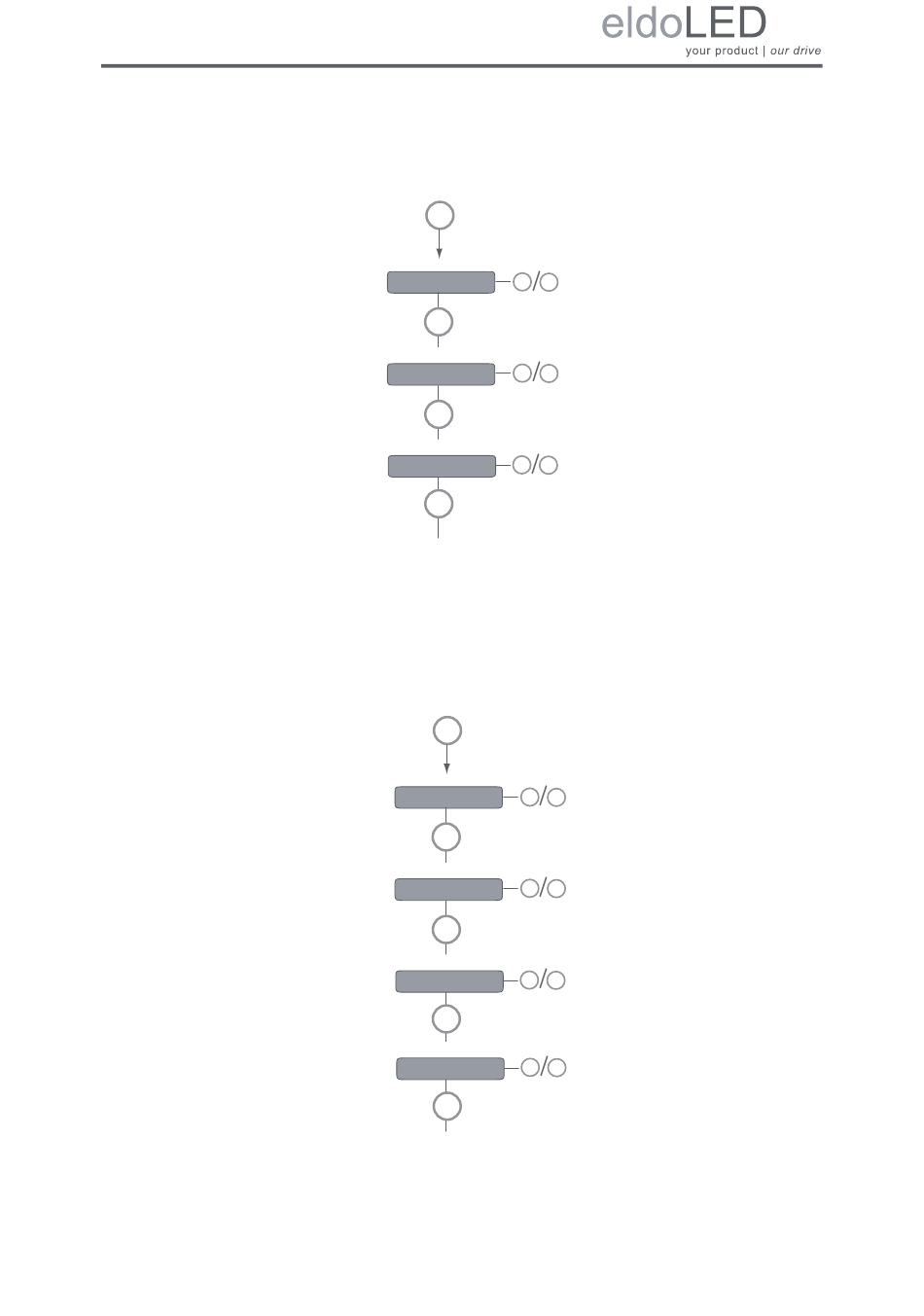

Figure 4.6: COLR settings for 3-3L

4-4L
4-4L: one DMX channel is used per LED group. INT (intensity) lets you set the intensity
of the light output of each channel: 255 is full on, 0 is off.

Figure 4.7: COLR settings for 4-4L

M
Group 1 intensity
INT 1 -
+
0...255
M
Group 2 intensity
-
INT 2 +
0...255
M
Group 3 intensity
-
INT 3 +
0...255
M
display off
M
Group 1 intensity
-
INT 1
+
0...255
M
Group 2 intensity
-
INT 2 +
0...255
M
Group 3 intensity
-
INT 3 +
0...255
M
Group 4 intensity
-
INT 4 +
0...255
M
display off
