ONLY enable termination if the driver/controller is the last driver/controller on the
network cable of a bussed network architecture.

4.2.6 Viewing the settings of operation mode 'DALI'

In DALI MODE, you can view the DALI network settings that have been assigned to your LIN-
EARdrive.
To read out the LINEARdrive's DALI settings:
1. Press M to enter the DALI menu.
2. Press M to browse the DALI network data:
X BAL shows the number of ballasts, pressing M again will tell you if an address has
been set (ADDR SET) or not (NO ADDR)
Pressing M after the last menu option exits the configuration and turns off the display.
M
DALI
DALI
M
Nr. of ballasts
X BAL
M
NO
ADDR
M
display
off

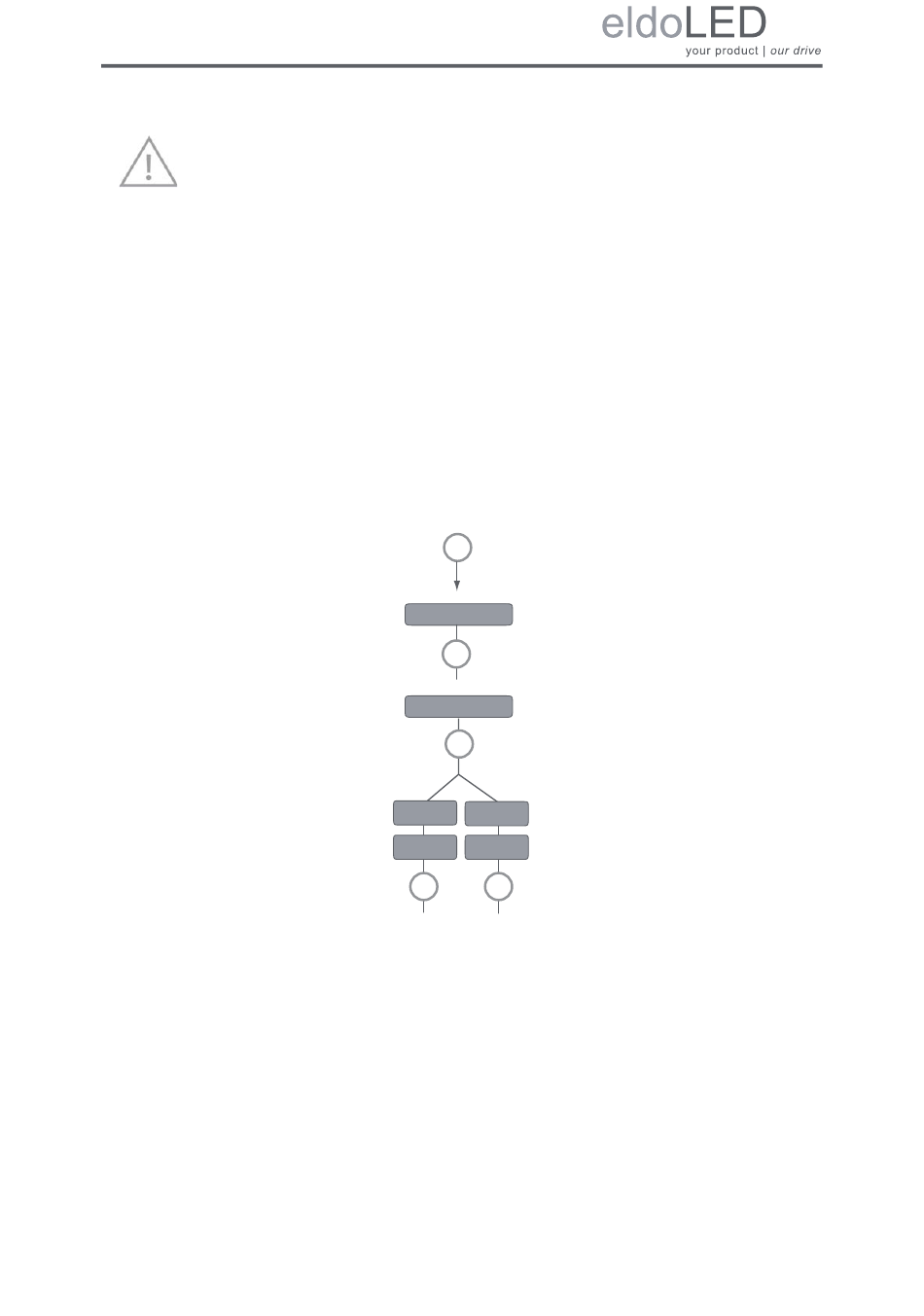

Figure 4.15: Viewing DALI network settings

ADDR
SET
M
display
off
37
