RGBW / RGBA
RGBW: 4 DMX channels are used for four LED groups: one channel for red LEDs, one
for green LEDs, one for blue LEDs and one for white LEDs.
RGBA: 4 DMX channels are used for four LED groups: one channel for red LEDs, one
for green LEDs, one for blue LEDs and one for amber LEDs.
HUE lets you set the colour: By pressing + or - you actually 'walk' along the sides of
the colour triangle shown below, which is based on the CIE diagram. By pressing M
you confirm the colour of your choice. Then, WHITE lets you add white or amber (you
'walk' towards the white center of the colour triangle). Finally, INT lets you set the in-
tensity of the light output.
Green
Blue

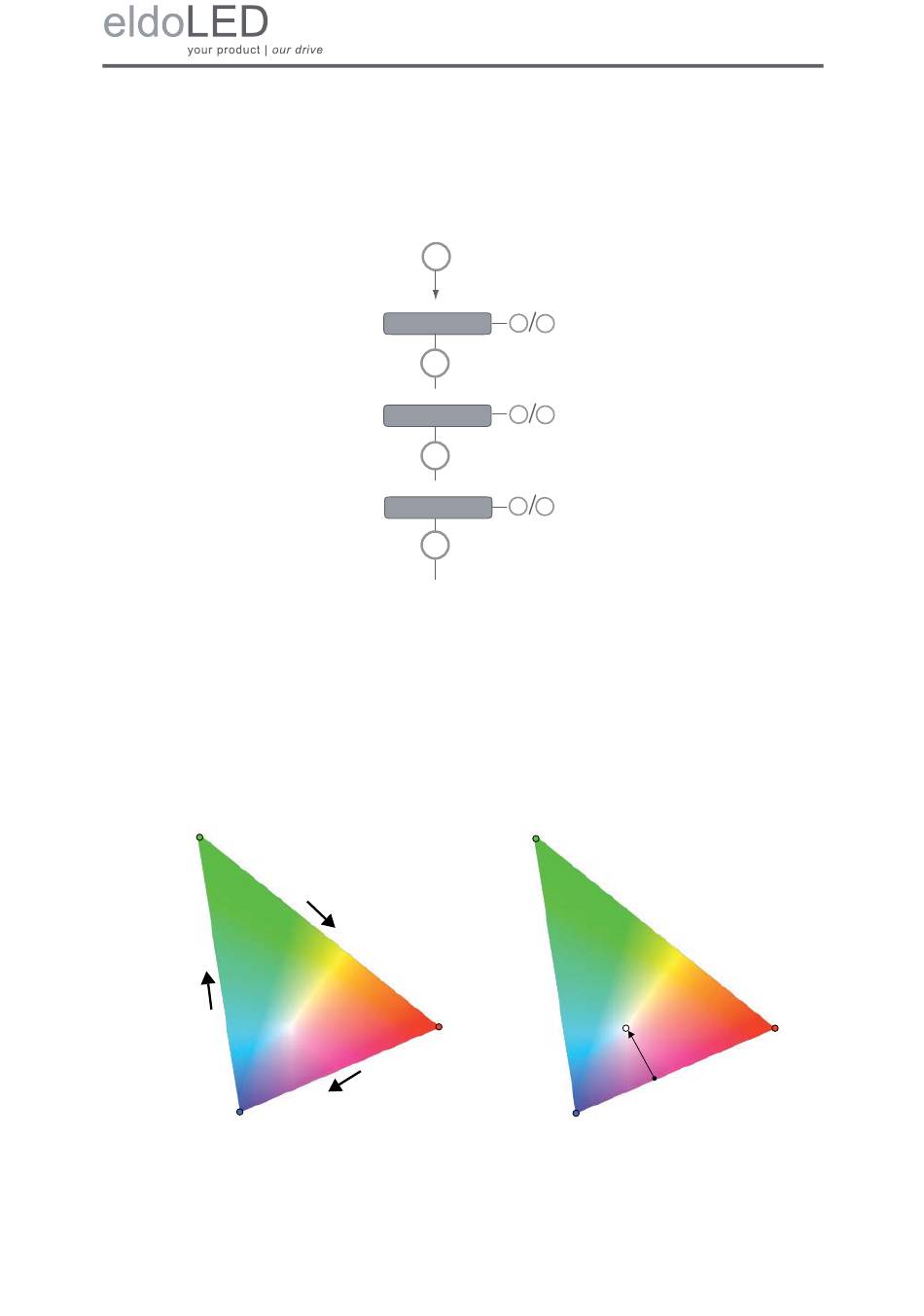

Figure 4.12: Setting the colour (left) and adding white or amber (right)

34
M
HUE
HUE
M
White
WHIT
M
Intensity
INT
M
display off

Figure 4.11: COLR settings for RGBW or RGBA

Red
-
+
0...1535
-
+
0...255
-
+
0...255
Green
White
Blue
Red
