Configuring Led Groups; Figure 4.3: Configuring The Led Groups - eldoLED LINEARdrive User Manual

After you have confirmed COLR MODE as the mode of operation, it is rec-
ommended to set the LED groups via the SETUP menu first, before entering
the COLR menu to set the colour of your choice.
For information on how to configure the LED groups, see 4.2.2 "Configuring
LED groups" .

4.2.2 Configuring LED groups

In the SETUP menu, you can configure the LED groups and an external input device.
28
+
M
+
LED groups
LED
M
External input
EXT INP
M
display off

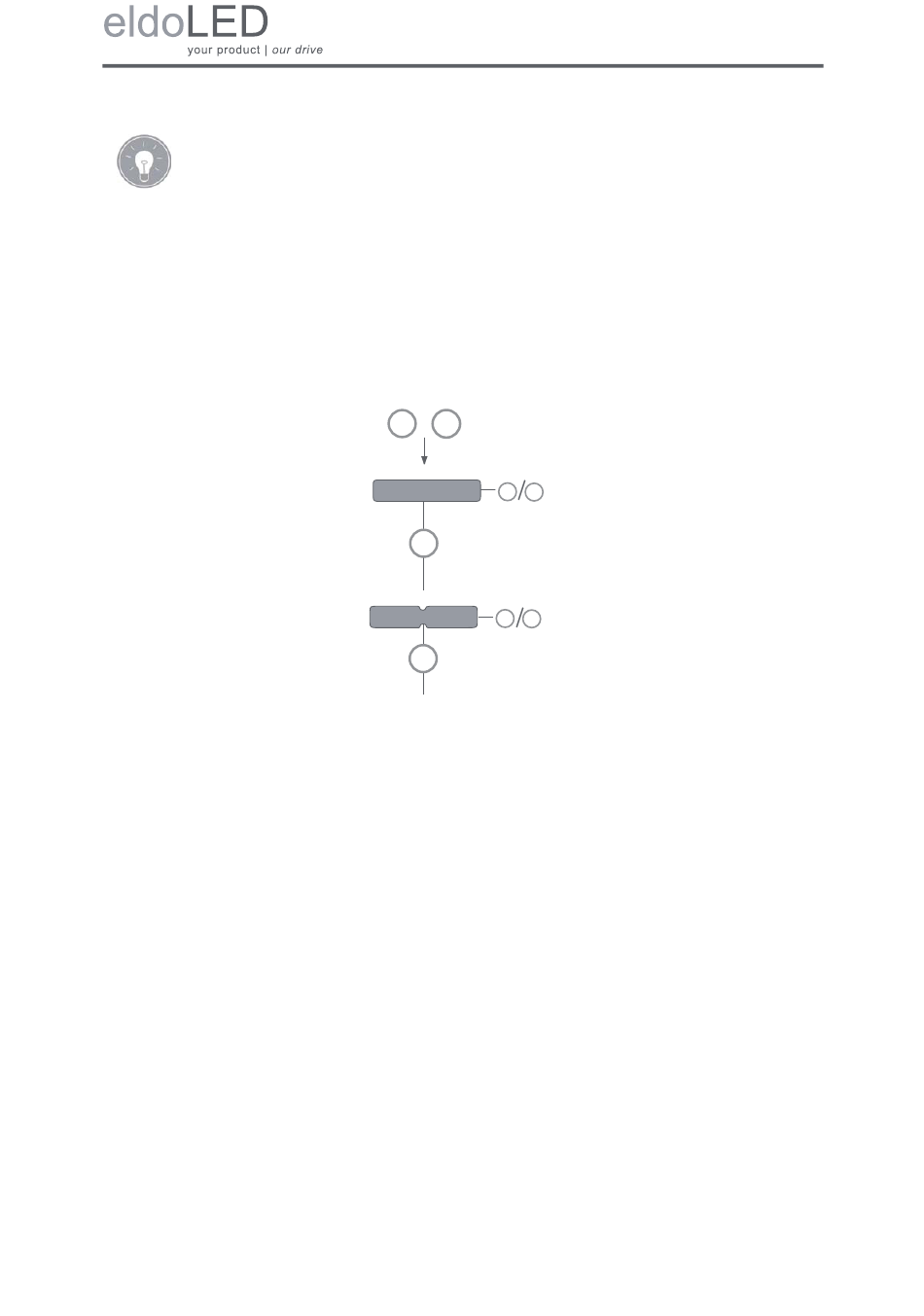

Figure 4.3: Configuring the LED groups

-
+
1-1L
RGB
2-2L
RGBW
3-3L
RGBA
4-4L RRGB
2-4L
RGGB
1-4L CCWW
CWWW
-
+
OFF
POTM
10V
SWIT
