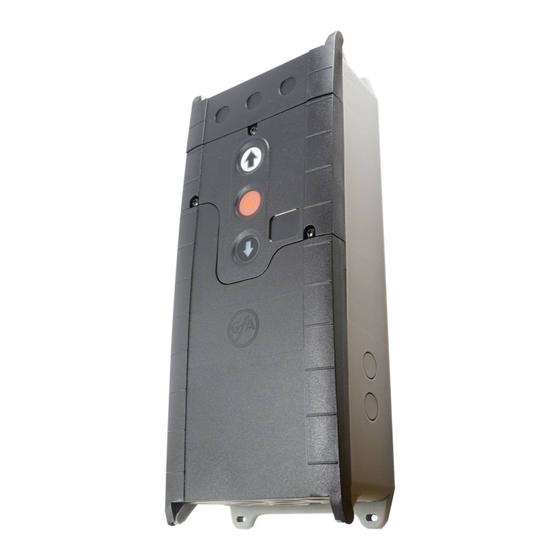

Industrial door control

Advertisement

IMPORTANT
The manufacturer's instruction
booklet supplied with the TS 971
contains
important
and warnings for the safe use of
this equipment and should be
read
before
installation
commissioning is undertaken.
In accordance with EN12453 self-checking or self-testing safety edge or a device
certified as type 'E' according to EN12453, i.e. light curtain fitted directly in line
with the moving leaf of the door, must be fitted to doors that close by impulse,
remote or automatic activation.
In addition doors operated by untrained users, in public areas activated by
impulse out of sight of the door or automatic control must be fitted with a photo
beam or photo beams to detect persons or obstacles standing on the floor to one
side of the door.
The photo beams do not need to be self-checking or self-testing but they should
be subject to periodic checks at intervals not exceeding six months.
Grilles and doors that have hand or foot holds that can be used to ride on the
door must be fitted with devices to protect against trapping i.e. Raytector
Entrapment Protection Barrier that when obstructed stops all movement of the
door.
Note
A Maintenance Cycle Counter is included in the TS 971. (See Control
Programming 8.5 and 8.6)
When commissioning the Shutter set the Counter according to the Shutter
Manufacturers recommendations.
TS 971-
directions
Door Control
Connection Drawings
or
Industrial
08.2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS 971 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GFA TS 971

  • Page 1 Entrapment Protection Barrier that when obstructed stops all movement of the door. Note A Maintenance Cycle Counter is included in the TS 971. (See Control Programming 8.5 and 8.6) When commissioning the Shutter set the Counter according to the Shutter Manufacturers recommendations.
  • Page 2: Table Of Contents

    TS 971 – 2 x GF/RAY Light Curtains TS 971 – Connecting an additional ‘OPEN / CLOSE’ Key Switch. TS 971 - GE3 or GE3AN – Connecting an additional 3 Push Button Station. TS 971 – Connecting an additional Key Switch with Stop Button.
  • Page 3 TS 971 - General Layout of Drive and Controls Untrained users, activated by impulse out SAFETY BRAKE (IF FITTED) of sight of the door in public areas Impulse or automatic activation by control trained users in full view of the door.
  • Page 4: Ts 971 - Connection Of The Drive Unit To The Control Panel

    TS 971 - Connection of the drive unit to the Control Panel Description Description Wire-No. Wire-No. Phase W Safety Chain 24V DC Phase V RS485 B Phase U Neutral RS485 A Earth Safety Chain 8V DC DIGITAL LIMIT ASSEMBLY MOTOR PLUG 1.11.21.31.4...
  • Page 5: Ts 971 - Main Supply - 3 Phase For 3 Phase Door Drives

    TS 971 - Main Supply – 3 Phase for 3 Phase Door Drives 1.11.21.31.4 F1 = 1,6A t L1 – Black L1L2L3 N E L2 – Brown L3 – Grey N – Blue E – Green/Yellow Fig 3a The neutral is only required for FI drives or if 1~ 230VAC control accessories or indicator lamps are installed.
  • Page 6: Ts 971 - Main Supply - 1 Phase For 1 Phase Door Drives

    TS 971 - Main Supply – 1 Phase for 1 Phase Door Drives There are two types of single-phase motors, symmetric and asymmetric windings. To determine how to connect the supply, look at the motor connecting plug in the motor limit housing.
  • Page 7: Safety Brake - Drive Connection

    Safety Brake – Drive Connection TS 971 Industrial Door Control...
  • Page 8: Ts 971 - Ksr4P - Optical Safety Edge

    TS 971 - KSR4P – Optical Safety Edge 1 BROWN 2 YELLOW 3 GREEN 4 WHITE Fig 4a TS 971 Industrial Door Control...
  • Page 9: Ts 971 - Ksr6 - Wireless Optical Safety Edge

    TO EXIT CONSULT THE TS971 INSTALLATION INSTRUCTIONS FOR FULL INSTRUCTIONS AND SAFETY INFORMATION N.B. The TS 971 terminals 2.1 – 2.5 are disabled when the wireless safety edge used. DO NOT CONNECT ANY DEVICE TO TS 971 TERMINALS 2.1 – 2.5...
  • Page 10: Ts 971 - Gf304528 Raytector High Level Entrapment Protection Barrier

    TS 971 – GF304528 RAYTECTOR HIGH LEVEL ENTRAPMENT PROTECTION BARRIER light barrier VITECTOR RAYTECTOR outside RAY - T 1000 RAY - R 1000 Transmitter Receiver F1 = 1,6A t RAYTECTOR HIGH LEVEL ENTRAPMENT PROTECTION BARRIERS light barrier VITECTOR RAYTECTOR inside...
  • Page 11: Ts 971 - Elc1930/Ose, Elc2290/Ose, Elc2650/Ose Light Curtain

    TS 971 – ELC1930/OSE, ELC2290/OSE, ELC2650/OSE Light Curtain. The TS 971 parameter 2.5 (Reversing) can be set to 0 – Off. F1=1,6A t CONNECTED RECEIVER TRANSMITTER SGR 15 OSE SGT 15 OSE A Light Curtain can be used instead of a safety edge providing that it is fitted directly under the leading edge of the door and is certified as a type ‘E’...
  • Page 12: Ts 971 - Gf/Ray-Lg2520/Ose, Gf/Ray-Lg2524/Ose Light Curtain

    TS 971 – GF/RAY-LG2520/OSE, GF/RAY-LG2524/OSE Light Curtain. The TS 971 parameter 2.5 (Reversing) can be set to 0 – Off. RECEIVER TRANSMITTER OSE-C OSE-C A Light Curtain can be used instead of a safety edge providing that it is fitted directly under the leading edge of the door and is certified as a type ‘E’...
  • Page 13: Ts 971 - 2 X Gf/Ray Light Curtains

    TS 971 – 2 x GF/RAY Light Curtains Using 2 light curtains, 1 either side of the door, with a maximum distance of 200mm between the centre of the curtains. BROWN WHITE BLUE BLACK GREY GREEN GREY bn+s GREEN BLACK...
  • Page 14: Ts 971 - Connecting An Additional 'Open / Close' Key Switch

    TS 971 – Connecting an additional ‘OPEN / CLOSE’ Key Switch. JAPZ2-2T KEY SWITCH Fig 5a The Key Switch must be in clear view of the Door and should be operated by trained users only or a photo beam or photo beams must be fitted to detect persons or obstacles standing on the floor to one side of the door.
  • Page 15: Ts 971 - Ge3 Or Ge3An - Connecting An Additional 3 Push Button Station

    TS 971 - GE3 or GE3AN – Connecting an additional 3 Push Button Station. GE3A GE3AN 3 PUSH 3 PUSH BUTTON BUTTON STATION STATION 1 NC 1 NC Fig 5b The Push Button Station must be in clear view of the Door and should be operated by trained users only or a photo beam or photo beams must be fitted to detect persons or obstacles standing on the floor to one side of the door.
  • Page 16: Ts 971 - Connecting An Additional Key Switch With Stop Button

    Latching Stop Push Buttons are recommended for all Doors that can be started remotely or automatically by vehicles approaching the Door. TS 971 Industrial Door Control...
  • Page 17: Ts 971 - Pes/9R- Connecting A Reflective Photo Beam

    TS 971 - PES/9R– Connecting a Reflective Photo Beam. PES/9R - 9M RANGE POLARISED REFLEX PHOTO BEAM BROWN 24 - 240VAC BLUE 24 - 240VAC WHITE RELAY COM GREY RELAY N.C HELD OPEN BLACK RELAY N.O HELD CLOSED Fig 7a...
  • Page 18: Ts 971 - Pes/30T- Connecting A Thru Beam Photo Beam

    TS 971 - PES/30T– Connecting a Thru Beam Photo Beam. PES/30T - 20M THRU-BEAM PHOTO BEAM BROWN 24 - 240VAC BLUE 24 - 240VAC WHITE RELAY COM GREY RELAY N.C HELD OPEN BLACK RELAY N.O HELD CLOSED Fig 7b Doors that can be operated by untrained users, activated by impulse out of sight of the door in public areas or automatic control must be fitted with a photo beam or photo beams to detect persons or obstacles standing on the floor to one side of the door.
  • Page 19: Ts 971 - Built-In Radio Receiver - Memorising Radio Transmitters

    TS 971 - Built-in Radio Receiver - memorising Radio Transmitters GfA supply the following compatible Radio Transmitters VR/TF2E - Trx 2-Channel Key fob Type VR/TF4E - Trx 4-Channel Key fob Type VR/60743 - Trx 1-Channel Vehicle Mounted VR/60744 - Trx 2-Channel Vehicle Mounted These are Rolling code (Rollcode) transmitter set parameter To memorise each transmitter go to parameter 7.7, select .1, press the TS971 STOP Button,...
  • Page 20: Ts 971 - Loop Detector Pcb And Ground Loop

    TS 971 – Loop Detector PCB and Ground Loop 9 10 GROUND GROUND LOOP 1 LOOP 2 Fig 8 To determine the number of turns of cable in the ground loop and setting the loop detector consult the Loop Detector instructions.
  • Page 21: Ts 971 - Latching Stop Button

    TS 971 – Latching Stop Button TS 971 Industrial Door Control...
  • Page 22: Ts 971 - Ifalconxl And Ifalcon - Industrial Motion Sensor

    TS 971 - IFALCONXL and IFALCON – Industrial Motion Sensor IFALCON Industrial Motion Sensor GREY YELLOW WHITE GREEN 12-24 BROWN VAC/DC Consult the manufacturer’s instructions for setting and operating the Industrial Motion Sensor. TS 971 Industrial Door Control...
  • Page 23: Ts 971 - Icondorxl And Icondor - Industrial Motion & Presence Sensor

    ICONDOR Industrial Motion & Presence Sensor BLACK VIOLET PRESENCE PINK RELAY GREY YELLOW MOTION WHITE RELAY GREEN 12-24 BROWN SUPPLY VAC/DC Consult the manufacturer’s instructions for setting and operating the Industrial Motion and presence Sensor. TS 971 Industrial Door Control...
  • Page 24: Ts 971 - Power Supply For Control Accessories

    In most cases the power supply will support all of the 24 VDC control accessories but due to the large in rush current required by the IFALCON if 2 are connected to a TS 971 supplied from a single phase supply a separate power supply is normally required.
  • Page 25: Ts 971 - 230Vac Warning Light

    Set parameter 2.7 = 3 and the warning light will flash for 3 seconds before and when the shutter is moving. NB The Mains Supply must include a neutral. Maximum load must not exceed 1A (LED lamps are recommend. Incandescent bulbs must not exceed 40W) TS 971 Industrial Door Control...
  • Page 26: Ts 971 - Ge301955 - Red & Green Traffic Indicator

    Set parameter 2.7 = .7 Green Light at the fully open position. Set parameter 2.8 = .3, .4, .5, .6 Red Light operation (see TS 971 instructions) NB The Mains Supply must include a neutral. Maximum load must not exceed 1A (LED lamps are recommended.
  • Page 27: Ts 971 - Interlocking 2 X Ts971S Together

    TS 971 – Interlocking 2 x TS971s Together SET PARAMETER [2.7] ON BOTH TS971s TO [.8] Set parameter 2.7 on both TS971s to .8 Interlocking both TS971s only allows one door to be opened at a time. TS 971 Industrial Door Control...
  • Page 28 GfA ELEKTROMATEN UK Ltd Unit 1, Titan Business Centre, Spartan Close Warwick CV34 6RR, England. Telephone: 01 926 452452 Fax: 01 926 336417 E-mail: sales@ gfa-elektromaten.co.uk Web Site: www.gfa-elektromaten.co.uk...
