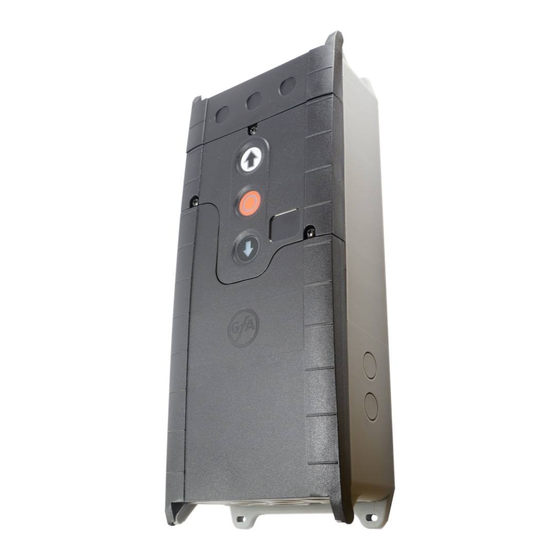

GFA TS 959 Electrical Wiring Instructions

Raytector system door kit

Hide thumbs Also See for TS 959:

The Raytector is used for entrapment protection on industrial doors, mainly for

rolling grills.

An interruption of the light beam initiates a signal between transmitter and

receiver which stops the movement of the power operated Door.

The entrapment protection RAYTECTOR is suitable for doors between

1.5 to 10.5 m wide

GfA ELEKTROMATEN UK Ltd

Unit 1, Titan Business Centre, Spartan Close

Warwick CV34 6RR, England.

Telephone: 01 926 452452 Fax: 01 926 336417

E-mail: sales@ gfa-elektromaten.co.uk

Web Site: www.gfa-elektromaten.co.uk

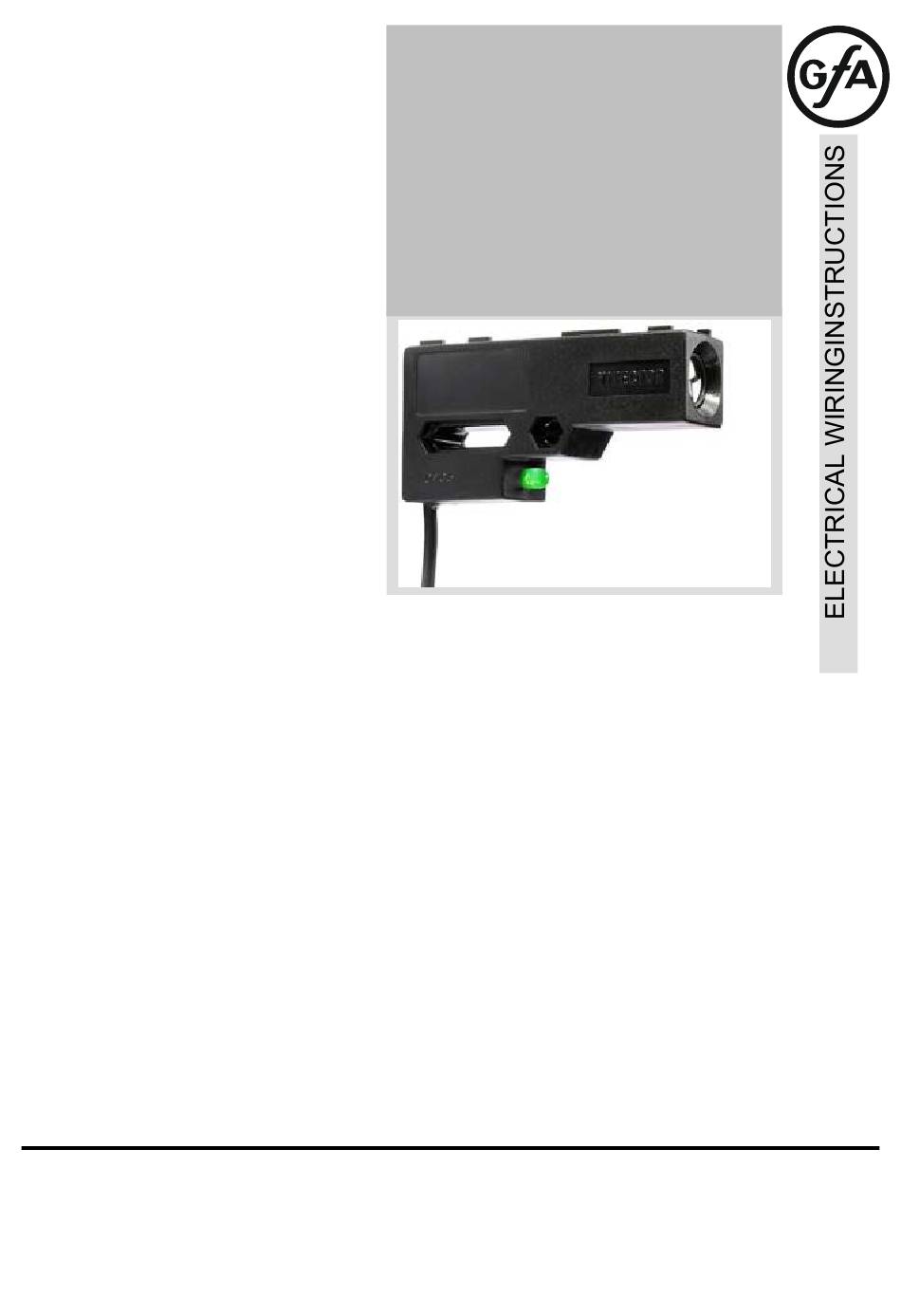

Raytector

System Door kit

For

TS 959/970/971

10.16

Table of Contents

Need help?

Do you have a question about the TS 959 and is the answer not in the manual?

Page 1 Door. The entrapment protection RAYTECTOR is suitable for doors between 1.5 to 10.5 m wide 10.16 GfA ELEKTROMATEN UK Ltd Unit 1, Titan Business Centre, Spartan Close Warwick CV34 6RR, England. Telephone: 01 926 452452 Fax: 01 926 336417 E-mail: sales@ gfa-elektromaten.co.uk...
Page 2 GF304528 RAYTECTOR Connection Drawing light barrier VITECTOR RAYTECTOR outside RAY - T 1000 RAY - R 1000 Transmitter Receiver F1 = 1,6A t RAYTECTOR HIGH LEVEL ENTRAPMENT PROTECTION BARRIERS light barrier VITECTOR RAYTECTOR inside RAY - R 1000 RAY - T 1000 Receiver Transmitter BROWN...

Ts 970 Ts 971
