Read through the safety information
and operating instructions carefully

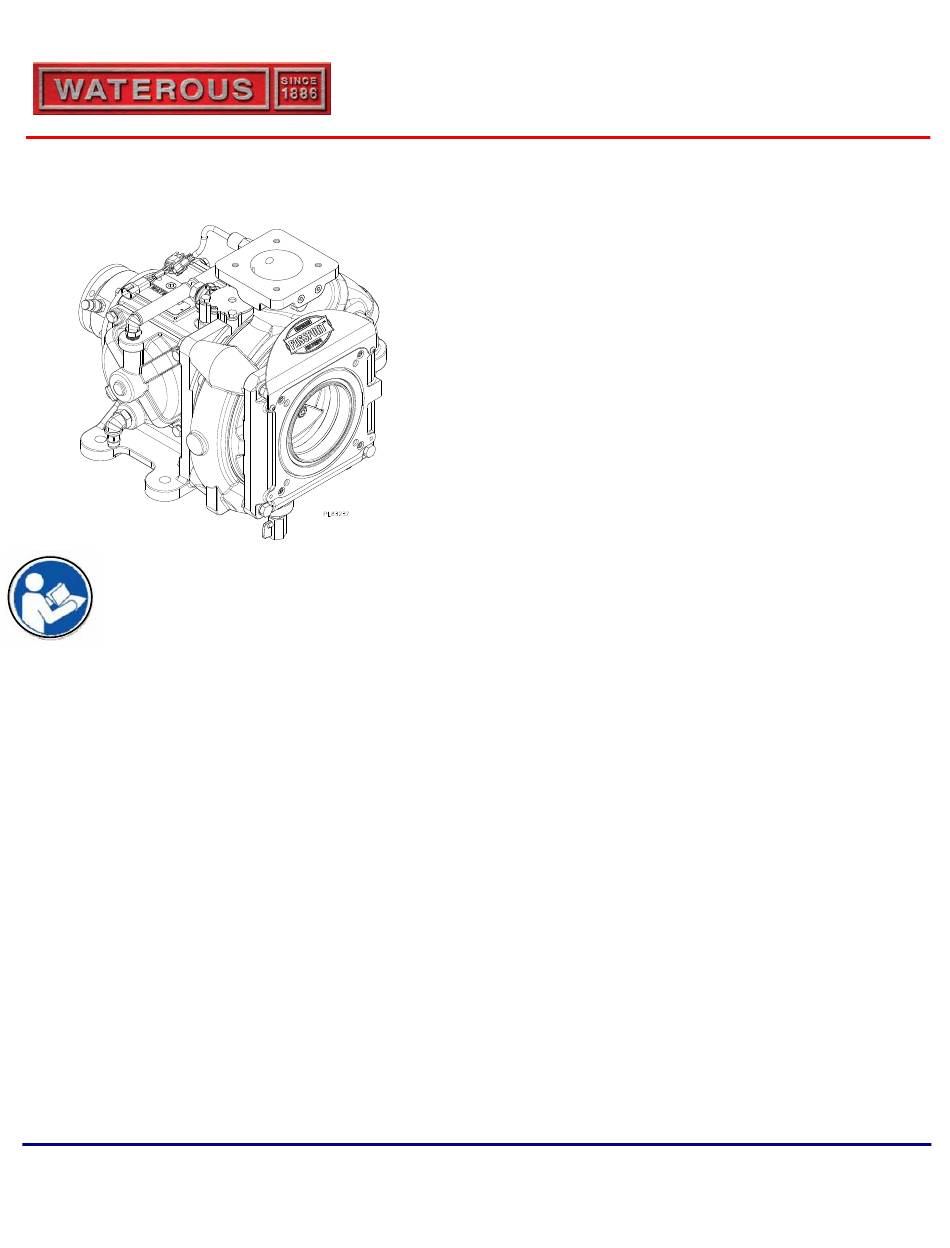

before using your S200-P Series Fire
Pump.
NOTE: Instructions subject to change without notice
Waterous Company, 125 Hardman Avenue South, South St. Paul, MN 55075 USA 651-450-5000

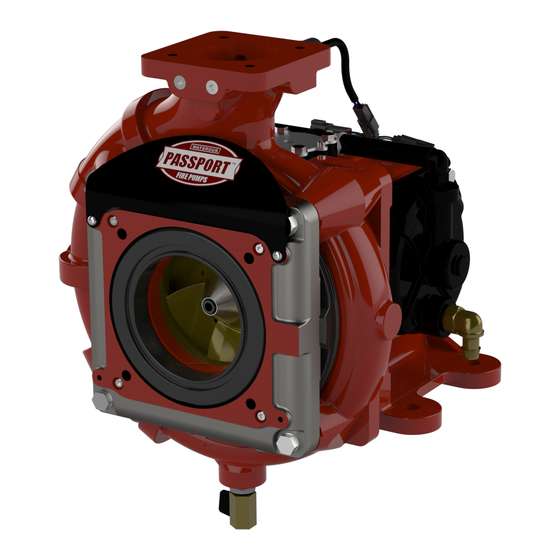

S200-P Series Centrifugal Fire Pumps
Operation and Maintenance Instructions
Safety Information ................................................................................ 2, 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operational Limits .................................................................................... 4
Components ............................................................................................. 5
Pumping from Hydrant or in Relay ......................................................... 6
Pumping from Water Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pumping from Draft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Fire Hose Testing ................................................................................... 9
Maintenance ........................................................................................... 10
Mechanical Seal ................................................................................... 10
Lubrication ........................................................................................... 10
Testing .................................................................................................... 10
www.waterousco.com
Table of Contents
F-1031, Section 2124-P (Rev. 3/23/17)
Advertisement
Table of Contents
Related Manuals for Waterous S200-P Series
Summary of Contents for Waterous S200-P Series
-
Page 1: Table Of Contents
Testing ....................10 before using your S200-P Series Fire Pump. NOTE: Instructions subject to change without notice F-1031, Section 2124-P (Rev. 3/23/17) Waterous Company, 125 Hardman Avenue South, South St. Paul, MN 55075 USA 651-450-5000 www.waterousco.com... -
Page 2: Safety Information
Read through the safety information and operating instructions before using your Fire Pump. Intended Uses WARNING The S200-P series pump is a centrifugal water pump that is Death or serious personal injury might occur if proper intended to be used for firefighting operations. It is an incom- operating procedures are not followed. - Page 3 Safety Information Read through the safety information and operating instructions before using your Fire Pump. WARNING Hose Testing Hazard. May result in serious personal injury. Due to a potential for catastrophic hose failure during service testing of fire hose, it is vital that safety precautions be taken to prevent exposure of anyone to this danger.
-
Page 4: Introduction
Introduction This instruction contains the information needed for operation and maintenance of the S200-P Series fire pump. General Description The S200-P series are pedestal mounted fire pumps designed to meet the EN 1028 Standard: 2000 L/min @ 10 bar 2000 L/min @ 15 bar... -
Page 5: Components
Components Body Assembly Automatic Piston Primer The pump is equipped with two automatic piston primers. The body is constructed of corrosion-resistant bronze and other composite components. For best performance, operate primers at 2000 rpm (pump speed). The primers will still perform at lower speeds, but Impeller priming time will increase. -
Page 6: Operating Instructions
(relief valve or governing device not Scalding Water Hazard. May result in serious burns. supplied by Waterous). When operating the pump, be sure to open at least one dis- charge valve slightly to prevent the pump from overheating. -
Page 7: Pumping From Water Tank
4. Open discharge valves and accelerate engine to obtain desired discharge pressure and capacity. 5. Set low pressure relief valve or other governing device to desired pressure (relief valve or governing device not supplied by Waterous). F-1031, Section 2124-P Page 7 of 10... -
Page 8: Pumping From Draft
8. Open discharge valves, and accelerate engine to obtain desired discharge pressure and capacity. 9. Set low pressure relief valve or other governing device to desired pressure (relief valve or governing device not supplied by Waterous). Page 8 of 10 F-1031, Section 2124-P... -
Page 9: Fire Hose Testing
Fire Hose Testing WARNING Hose Testing Hazard. May result in serious personal injury. Due to a potential for catastrophic hose failure during service testing of fire hose, it is vital that safety precautions be taken to prevent exposure of anyone to this danger. Fire pumps on fire department apparatus are not designed for and should not be used for service testing of fire hoses. -
Page 10: Maintenance
Maintenance NOTICE All pump maintenance can be performed using standard tools. Mechanical Seal NOTICE The pump shaft is sealed with a mechanical seal and no adjustment is required. When the pump is in operation, the water being pumped lubricates and cools the seal. If the seal leaks, replace the entire seal.
