oticon ConnectClip Quick Manual

ConnectClip
Quick guide to the remote microphone
Status indicator
Power indicator
Multi-button
Volume up
Volume down
Charging socket
• Press the multi-button for 3 seconds, until the power
1
indicator (right) shows steady green
Power
• When the status indicator (left) shows steady yellow or
on
blue, ConnectClip is connected to the hearing aids
• Select the remote microphone mode by pressing the
2
multi-button for 3 seconds, until the status indicator
Microphone
shows steady magenta
mode
• To mute/pause the remote microphone streaming, press the
multi-button for 3 seconds. The status indicator (left) changes
3
to steady yellow or blue
Mute
• To unmute/restart streaming, press the multi-button for 3
seconds, until the status indicator shows steady magenta again
• Turn ConnectClip off by pressing the multi-button for
4
6 seconds, until both the power indicator and the status
Power
indicator are off
off

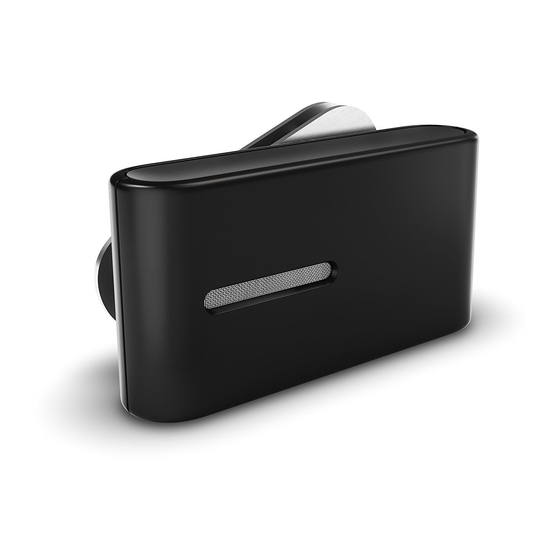

Attach to the person speaking
Attach the ConnectClip to the speaker's
clothing about 8 inches below their mouth.
Make sure the microphone is pointing
towards the mouth and is not covered by
clothes or in a shirt pocket, etc. You can
also use the lanyard provided to hang the
ConnectClip over the speaker's clothes.
Microphone
Check that the status indicator is
magenta and the power indicator
is green – especially if you have
been out of range.
Rotating clip
TIP
