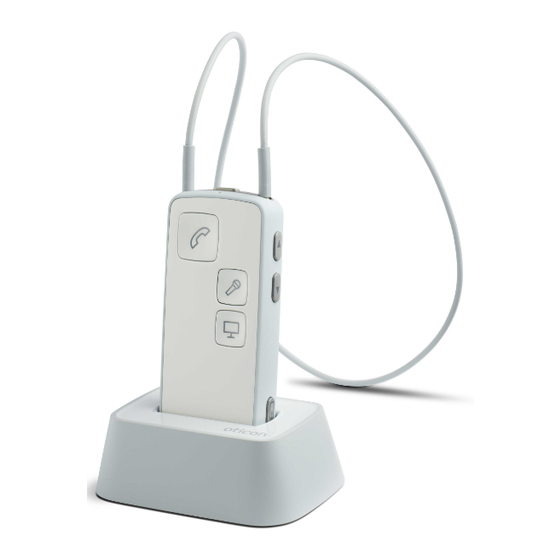

oticon ConnectLine STREAMER PRO Instructions For Use

People First
People First is our promise
to empower people
to communicate freely,
interact naturally and
participate actively
What's in the box?

Microphone

Carry pouch
Power supply (charger) Important
Information
IMPORTANT NOTICE Important additional information
Please familiarise yourself with the entire contents of this
booklet before using your Connectline Microphone. It con- The ConnectLine wireless microphone contains a radio trans-
tains instructions and important information about the use mitter using a frequency hopping technology working in the ISM-band at 2.4 GHz.
and handling of your Connectline Microphone.
The peak conducted output power of the transmitter is less
Warnings than 6 dBm and the antenna is a small PCB antenna with a
directional gain of less than 2 dBi (dB over an isotropical or
Not a toy omni-directional antenna).
The Connectline Microphone is not a toy and therefore should
swallow parts or otherwise cause injury to themselves. Special be kept out of the reach of children and anyone else who might The emission power from the Connectline Microphone is below international emission limits for Human Exposure. For com-
attention should be paid to the smaller components in order to parison, the radiation of the Connectline Microphone is less
prevent children from swallowing them and choking. If a part is than unintended electromagnetic radiation from for example
swallowed, see a doctor immediately. hair dryers, electric shavers etc. The Connectline Microphone
complies with international standards concerning Electromag-
Use on aircrafts netic Compatibility.
The Connectline Microphone should not be used onboard air-
crafts unless specifically permitted by the flight personnel. USA and Canada
Active Implants relevant approval markings are found in this document. Due to the limited size available on the device, many of the
Oticon shows caution and advise to follow the guideline as
recommended by manufacturers of implantable defibrillators This instrument is certified under:
and pacemakers regarding use of mobile phones. If you wear
an active implant, then keep the microphone more than 15 cm FCC ID: U28MIC110
away from the implant. IC: 1350B-MIC110
Never exposure the Connectline Microphone to great heat by Do not expose to great heat RSS-210 of Industry Canada. The device complies with Part 15 of the FCC rules and
putting it in the oven, micro wave oven or burning it. There is a
risk that it will explode and cause serious injury. Operation is subject to the following two conditions:
This device may not cause harmful interference. This device
Cleaning must accept any interference received, including interference
Oticon recommends cleaning on a regular basis, using a that may cause undesired operation.
damp cloth witout solvents.
Do not immerse Connectline Microphone in water or other Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
liquids. of the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference in a residential
Only charge from UL/IEC approved equipment installation. This equipment generates, uses and can radiate
The safety of recharging batteries with the USB connector radio frequency energy and, if not installed and used in ac-
only is determined by the external equipment. When the cordance with the instructions, may cause harmful interfer-
USB connector is connected to mainsoperated equipment, this ence to radio communications. However, there is no guarantee
equipment should be UL approved or comply IEC 60950, IEC- 60065, IEC-60601 or equivalent safety standards. that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
Use of the Lanyard television reception, which can be determined by turning the
If by accident the lanyard should get caught on something equipment off and on, the user is encouraged to try to correct
while wearing it, the lanyard is constructed to release. the interference by one or more of the following measures:
Therefore, never try to shorten or modify the lanyard in an
unauthorized way. The lanyard should not be used for children • Reorient or relocate the receiving antenna.
who weights less than 11 kg. • Increase the separation between the equipment and
Explosives receiver.
The power source in your microphone has insufficient energy • Connect the equipment into an outlet on a circuit different
to cause fire in normal conditions of use. The microphone has from that to which the receiver is connected.
not been tested for compliance with international standards
concerning explosive atmostpheres. It is recommended not to • Consult the dealer or an experienced radio/TV technician for help.
use your hearing instruments in areas where there is a danger
of explosions.
Products complying with R&TTE:
When using the ConnectLine michrophone in Norway it must
be ensured that no radio transmission is performed within a
20 km radius from the center of Ny-Aalesund.
X-ray, CT, MR, PET scanning and electrotherapy
Do not wear the microphone during X-ray, CT / MR / PET scanning, electrotherapy or surgery.
How the Microphone works
Up to 15 meters
Hearing Instrument user
The Microphone will transmit the speech from the Speaker directly
to the Hearing instrument user.
Note: A Microphone will only work with one Streamer at a time

Charging / power indicator

Battery Charge connector
(mini USB)
To charge the microphone, connect the power supply cord to
the mini USB connector at the bottom of the microphone.

Pairing / initial setup (only needed once)

1. Streamer Pro in pairing mode
6 secs
Press Hold until blue
light flashes
Page 1
INSTRUCTIONS FOR USE

Product overview

Lanyard
Status indicator
(orange)
Microphone input
(Voice)
Power indicator
(green)
This manual
On/off button
Microphone input
(noise detector),
do not cover
Wearing
with Clip
Speaker
The microphone should point towards the speaker's mouth and be
within a distance of 10 to 20 cm.
Constant
red light
Battery Low
Maximum 20 min.
speaking time left
2. Microphone in pairing mode
Orange light is flashing
rapidly in pairing mode
6 secs
Press and hold for 6 seconds until orange
Light flashes rapidly
MICROPHONE
STREAMER PRO
Wearing with Incorrect
Lanyard usage
Blinking Constant
green light green light
Charging Fully charged
(After approx. 1.5
hours.) Will last for
approx. 5 hours use.
3. Microphone paired
1 min
Wait up to 1 minute until Streamer light
is orange and microphone light is orange
