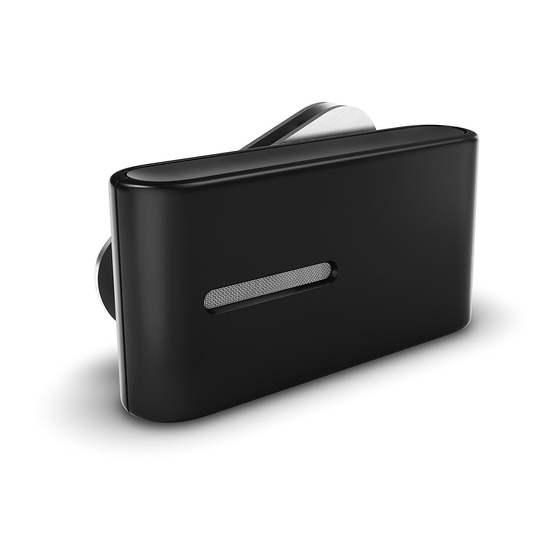

oticon ConnectClip Quick Start Manual

ConnectClip

Quick Start Guide

PAIRING CONNECTCLIP WITH HEARING AIDS
1. Ensure ConnectClip is powered
off. Press and hold multi-button for
approximately 6 seconds until power
indicator OFF
2. Turn both hearing aids OFF.
(Open battery drawer)
3. Turn both hearing aids ON.
(Close battery drawer)
4. The hearing aids will now be
ready for first time connection with
the ConnectClip. You now have 3
minutes to complete the pairing.
5. Turn ON ConnectClip. Press and hold
multi-button for approximately 3
seconds until power indicator shows
STEADY GREEN
6. ConnectClip will now search for
your hearing aids. Status indicator
BLINKING YELLOW
7. Place ConnectClip and both hearing
aids close to each other (maximum
distance is 8 inches)
8. Connection established with
hearing aid(s) is indicated by status
indicator STEADY YELLOW
RECEIVING CALLS
Phone connected: When the ConnectClip
is turned on and is in range of your mobile
phone it will automatically connect to
the mobile phone. The status indicator is
STEADY BLUE
Phone ringing: When the phone rings you
will hear a ring indicator (and, if available,
the ring-tone from your phone) in your
hearing aids.The status indicator will
BLINK GREEN
LISTENING TO MUSIC
If connected to a mobile phone or other paired device through Bluetooth, the music played on the
phone/device will automatically be played in your hearing aids. STATUS ORANGE
You do not need to press any buttons or change anything on the ConnectClip.
PAIRING CONNECTCLIP WITH MOBILE PHONE
1. Pair the ConnectClip with your
hearing aids before pairing
ConnectClip with your mobile phone.
2. Place ConnectClip in Pairing mode.
Press and hold the multi-button AND
volume up button for about 6 seconds
(A) until status
BLINKS BLUE
The ConnectClip will be in pairing
mode for about 3 minutes.
3. Enable pairing on mobile phone.
Turn on Bluetooth. Search for and
connect to/pair with ConnectClip
This is normally in the Settings/
Bluetooth section of your phone
4. Enter your pin code. If your phone
requests a pin code enter 0000 (four
zeros).
5. Pairing complete. Pairing complete
with mobile phone is indicated by
status STEADY BLUE
Answer call: Either a short press of the
multi-button (A) — or answer the call from
your mobile phone.
Once the call is connected status will
change to STEADY GREEN
End call: Either a short press of the multi-
button (A) — or hang up the call from your
mobile phone. Status STEADY BLUE
A
A
