Summary of Contents for oticon ConnectLine

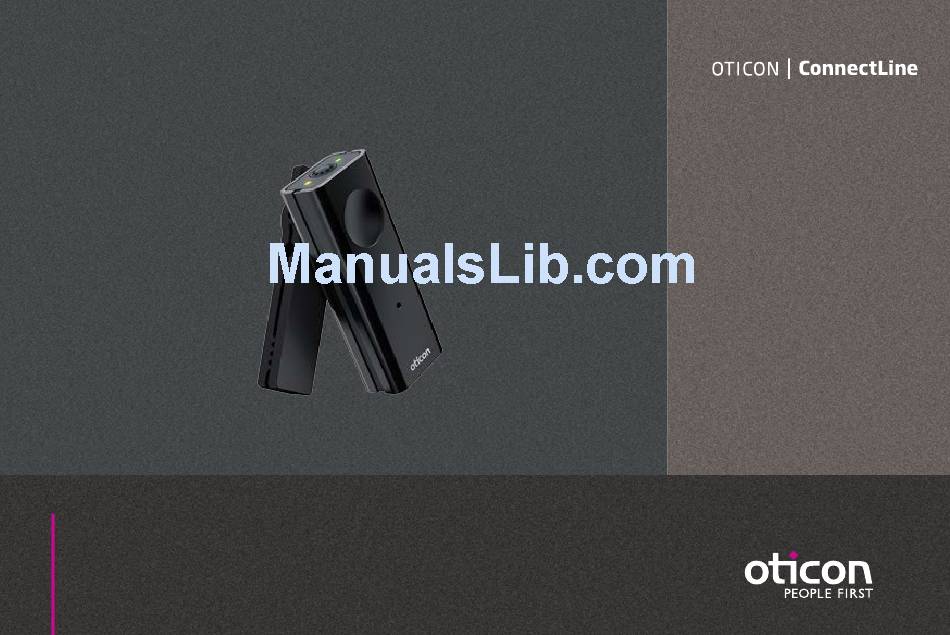

- Page 1 Microphone Instructions for use...
- Page 2 Introduction to this booklet Intended use This booklet guides you on how to use and maintain your new ConnectLine The Microphone is intended to be used by a person speaking to a hearing Microphone. Please read the booklet carefully including the Warning aid user, in order for the hearing aid user to better hear the person.
-
Page 3: Table Of Contents
Table of contents About Active Implants What’s in the box? Do not expose to great heat Product overview Cleaning How the Microphone works Only charge from UL/IEC approved equipment Charging / power indicator Use of the lanyard Startup Explosives Pairing / initial setup (only needed once) Products complying with R&TTE Handling X-ray, CT, MR, PET scanning and electrotherapy... -
Page 4: What's In The Box

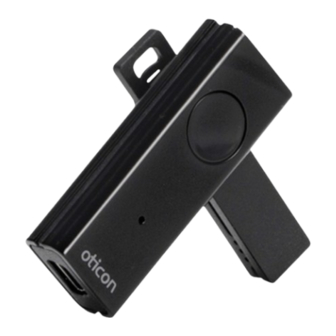

What’s in the box? Product overview Microphone Carry pouch Lanyard Status indicator (orange) Microphone input (voice) Power indicator (green) Power supply (charger) This manual On/off button Microphone Microphone input (noise detector), Instructions for use do not cover *Power supply will vary from country to country. -
Page 5: How The Microphone Works
How the Microphone works The Microphone should point towards the speaker’s mouth within a distance The Microphone will transmit the speech from the speaker directly to the of 10 to 20 cm. hearing aid user. Up to 15 metres Hearing aid user Speaker Clip Wearing with... -
Page 6: Charging / Power Indicator
Charging / power indicator To charge the Microphone, connect the power supply cord to Constant red light Blinking green light Constant green light the mini USB connector placed at the bottom of the Microphone. Battery low. Charging. Fully charged after Battery charge connector Maximum 20 minutes approx. -
Page 7: Pairing / Initial Setup (Only Needed Once)
Pairing / initial setup (only needed once) 1. Streamer Pro in pairing mode 2. Microphone in pairing mode 6 secs 6 secs Press and hold the on/off button on Hold until blue light flashes. Press and hold the on/off button on Orange light is flashing rapidly in pairing the top. - Page 8 3. Microphone paired 1 min Wait up to 1 minute until orange light on Streamer Pro is on and orange light on Microphone is on. About Startup Handling Warnings More info...
-
Page 9: Start / Turn On / Resume Sound From Microphone
Start / turn on / resume sound from Microphone 3. Sound from Microphone to Streamer Pro 1. Make sure Streamer Pro is on 2. Start / turn on Microphone 5 secs Press the on/off button on the top un- Short press on the on/off button. Orange light slowly pulsating. -
Page 10: Pause Sound
Pause sound a. Pause sound from Microphone b. Pause sound from Streamer Pro Short press on Orange light on Orange light on Streamer Pro turns Short press on Orange light Orange light on Microphone turns off. on/off button. Microphone turns off. -
Page 11: Resume Sound From Streamer Pro
Resume sound from Streamer Pro 1. Microphone has to be on 2. Start sound from Streamer Pro 3. Sound from Microphone to Streamer Pro 2 secs (Green light is on) Short press on Orange light on After 2 seconds, orange light on Streamer Pro mic Streamer Pro Microphone turns on. -
Page 12: Check Sound
Check sound Turn off Microphone Tap the top of the Microphone to check that the Press and hold for two seconds, until green light sound is heard in the hearing aids. turns off. About Startup Handling Warnings More info... -
Page 13: Warnings
• Caution must be taken with active im- phone to great heat by putting it in the should be UL approved or comply with • The ConnectLine Microphone is not a toy plants. Your ConnectLine Microphone has oven or microwave oven or by burning it. -
Page 14: Explosives
Products complying with R&TTE • When using the ConnectLine Microphone in Norway it must be ensured that no radio transmission is performed within a 20 km radius from the centre of Ny- Aalesund. - Page 15 Warranty certificate International warranty Name of owner: ___________________________________________________________ The manufacturer, Oticon, issues a What is covered by this warranty? one-year limited warranty to the original Any electronic component which, because Dispenser: _______________________________________________________________ consumer of this product. of workmanship, manufacturing or design...
-
Page 16: More Info
What is not covered by this warranty? • Products damaged in transit unless If your ConnectLine Microphone requires This one-year limited warranty does not investigated by the shipper and returned service under the terms of this warran- cover: to the warrantor with the investigation ty, carefully package the instrument to •... -
Page 17: Important Additional Information
• Increase the separation between the This equipment generates, uses and can equipment and receiver. FCC ID: U28MIC110 The emission power from the ConnectLine IC: 1350B-MIC110 radiate radio frequency energy and, if not • Connect the equipment into an outlet on... - Page 18 Oticon hereby declares that this Connect- Declaration of conformity is available at: Line Microphone is in compliance with the essential requirements and other relevant Oticon A/S provisions of Directive 1999/5/EC. Kongebakken 9 DK-2765 Smørum Denmark www.oticon.global Waste from electronic equipment must be handled according to local regulations.
- Page 19 0000164253000001...
