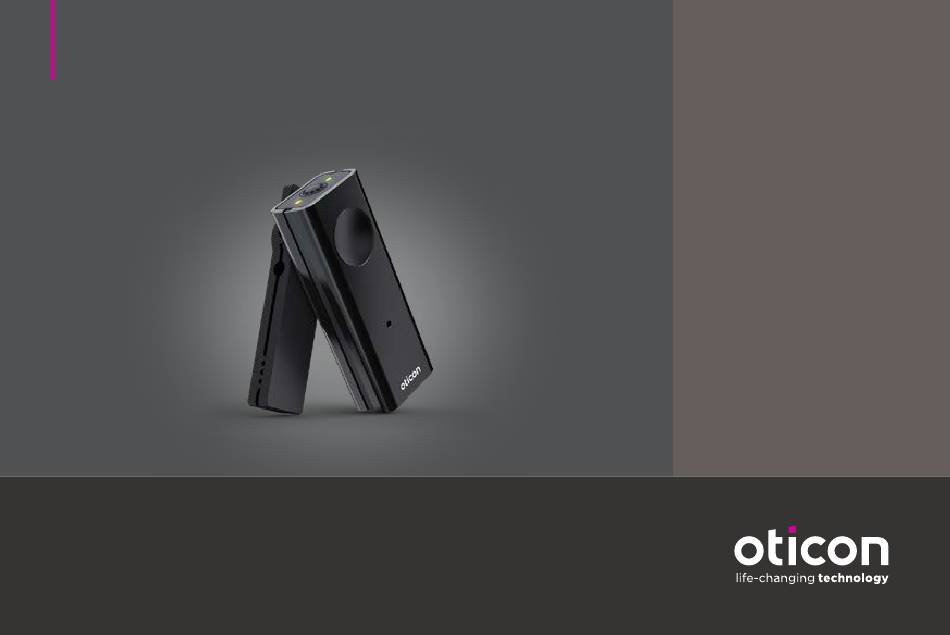

- Page 1 Instructions for use Connectline Microphone...
- Page 2 This will help you get the most out of your microphone. ConnectLine microphone is intended to be used by a person speaking to a Oticon hearing aid user, in order for the user to better hear the speaker. The ConnectLine microphone transmit speech from the If you have additional questions about the use of your microphone, please contact speaker through Streamer Pro to the hearing aids.
-
Page 3: Table Of Contents
Table of contents About Warnings Package content General warnings Microphone overview Conditions of use More info How the microphone works Charging / power indicator International warranty Start-up Warranty Pairing Technical information Handling Start / turn on / resume sound from microphone Pause sound Resume sound from Streamer Pro Check sound... -
Page 4: Package Content
Package content Microphone overview The packaging box consists of the following elements: ConnectLine Microphone Carry pouch Lanyard Status indicator (orange) Microphone input (voice) Power indicator (green) Power supply (charger) This booklet ON/OFF button Instructions for use Microphone Oticon Connectline Microphone input do not cover *Power supply will vary from country to country. - Page 5 How the microphone works The microphone transmits speech from the speaker directly to the hearing aid The microphone should point towards the speaker’s mouth within a distance of user. 10 to 20 cm. Up to 15 metres Hearing aid user Speaker Note A microphone will only work with one Streamer at a time.
-
Page 6: Charging / Power Indicator
Charging / power indicator Steady red Blinking green Steady green To charge the microphone, connect the power supply cord to the mini USB connector placed at the bottom of the microphone. Low battery. Charging Fully charged after about Maximum 20 minutes 1.5 hours and can be used of speaking time left. -
Page 7: Pairing
Pairing (only needed once) 1. Streamer Pro in pairing mode 2. Microphone in pairing mode 6 secs 6 secs Press and hold the ON/OFF button on the Hold until blue light is blinking. Press and hold the ON/OFF button on the Orange light is blinking. - Page 8 3. Microphone paired 1 min Wait up to 1 minute until both Streamer Pro and microphone indicate orange light. About Start-up Handling Warnings More info...
-
Page 9: Start / Turn On / Resume Sound From Microphone
Start / turn on / resume sound from microphone 1. Make sure Streamer Pro is on 2. Start / turn on microphone 3. Sound from microphone to Streamer Pro 5 secs Press the ON/OFF button on the top until Short press on the ON/OFF button. Orange light is slowly blinking. -
Page 10: Pause Sound
Pause sound Pause sound from microphone Pause sound from Streamer Pro Short press on Orange light on Orange light on Streamer Pro turns off. Short press on Orange light on Orange light on the microphone turns off. ON/OFF button. the microphone Streamer Pro mic Streamer Pro turns turns off. -
Page 11: Resume Sound From Streamer Pro
Resume sound from Streamer Pro Microphone has to be on Start sound from Streamer Pro Sound from microphone to Streamer Pro 2 secs Steady green light. Short press on Orange light on After 2 seconds, orange light on Streamer Pro mic Streamer Pro the microphone turns on. -
Page 12: Check Sound
Check sound Turn off microphone Caring for the microphone Use a soft, damp cloth to clean the microphone. Tap the top of the microphone to check Press and hold for two seconds, until green that the sound is heard in the hearing aids. light turns off. -
Page 13: General Warnings
General warnings The safety of recharging batteries using a USB Interference connector is determined by the external signal The microphone has been thoroughly tested for source. When connected to external equipment interference according to the most stringent For your personal safety and to ensure correct Active Implants plugged into a wall outlet, this equipment must international standards. -
Page 14: Conditions Of Use
General warnings Conditions of use Explosives Use of third party accessories Operating conditions Temperature: +5°C to +40°C The microphone is safe to use under normal Only use accessories, transducers or cables Humidity: 15% - 93% relative humidity, noncondensing usage conditions. The microphone has not supplied by the manufacturer. -
Page 15: International Warranty
International warranty Warranty Your device is covered by an international professional may have issued a warranty Certificate limited warranty issued by the manufacturer that goes beyond the clauses of this limited for a period of 12 months from the date of warranty. -
Page 16: Technical Information
Technical information USA and Canada Note Model name Mic-110 This instrument is certified under: Changes or modifications not expressly approved by the party responsible for This device contains a radio transmitter using For body-worn operation, this device meets FCC ID: U28MIC110 compliance could void the user’s authority a frequency hopping technology working in FCC and IC RF exposure limits and has been... - Page 17 Directive Text marked with a warning symbol must be read before using the device. 2014/53/EU. Oticon A/S Manufacturer Kongebakken 9 The device is produced by the manufacturer whose name and address are stated next to the symbol.
- Page 18 Description of symbols used on the regulatory packaging label Keep dry Indicates a medical device that needs to be protected from moisture. Caution symbol Consult instructions for use for warnings and cautions. Catalogue number Indicates the manufacturer’s catalogue number so that the medical device can be identified. Serial number Indicates the manufacturer’s serial number so that a specific medical device can be identified.
- Page 19 0000219520000001...
