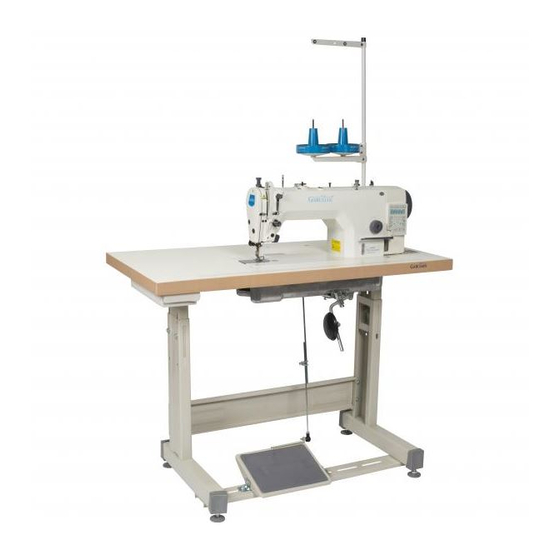

Garudan GF-1107-147 MH User's Manual And Spare Parts Book

Hide thumbs

Table of Contents

Quick Links

Download this manual

User's Manual

and Spare Parts Book

GF-1107-147 MH

ANITA B, s.r.o.

Průmyslová 2453/7

680 01 Boskovice

Czech Republic

tel: +420 516 454 774

+420 516 453 496

fax: +420 516 452 751

e-mail:

info@anita.cz

MP02300EN_170818

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the GF-1107-147 MH and is the answer not in the manual?

Questions and answers

Summary of Contents for Garudan GF-1107-147 MH

Page 1 User's Manual and Spare Parts Book GF-1107-147 MH ANITA B, s.r.o. Průmyslová 2453/7 680 01 Boskovice Czech Republic tel: +420 516 454 774 +420 516 453 496 fax: +420 516 452 751 e-mail: info@anita.cz MP02300EN_170818...
Page 2 ANITA © All rights reserved All rights reserved property of Anita B and protected by copyright. The use of this content without written permission is prohibited. Copyright © Anita B s r.o. (2017) MP02300EN_170818...
Page 3: Table Of Contents
ANITA © Content 1. Specification ........................4 2. Installing the oil pan ......................5 3. Adjusting the height of the knee lifter ................6 4. Installing the thread stand ....................6 5. Lubrication ........................7 6. Adjusting the amount of oil in the hook ................8 7.
Page 4: Specification
ANITA © 1. Specification Application Sewing speed 3500 rpm Stitch length 0 ~ 4mm Needle DP×5 9 # ~ 18# By hand lifter 8mm（standard） Presser foot lift By knee lifter 15mm（max.） Hook：White Oil No. 10 Gear Box：Shell Tellus Oil No. 22 Rated power 550W MP02300EN_170818...
Page 5: Installing The Oil Pan
ANITA © 2. Installing the oil pan 1 The oil pan should rest on the four corners of the machine table groove. 2 Two rubber seats ① for supporting the head portion on the operator side A are fixed on the extended portion of the table by hitting the nails ②, and the other two rubber cushion seats ③...
Page 6: Adjusting The Height Of The Knee Lifter
ANITA © 3. Adjusting the height of the knee lifter Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. 1. The standard height of the presser foot lifted using the knee lifter is 10mm.
Page 7: Lubrication
ANITA © 5. Lubrication Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. Fill the oil tank with oil for hook lubrication before the sewing machine. 1. Tilt the machine head until it comes in contact with the head support rod. 2.
Page 8: Adjusting The Amount Of Oil In The Hook
ANITA © 6. Adjusting the amount of oil in the hook Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. Adjustment of the amount of oil in the hook is performed with oil amount adjustment screw. Adjustment procedure: Tighten (turn clockwise) oil amount adjustment screw ①...
Page 9: Adjusting The Amount Of Oil (Oil Splashes)
ANITA © 7. Adjusting the amount of oil (oil splashes) Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. 1. How to confirm the amount of oil (oil splashes) When carrying out the procedure described below in 2, remove the slide plate and take extreme caution not to allow your fingers to come in contact with the hook.
Page 10 ANITA © 2. Sample showing the appropriate amount of oil 1) The amount of oil shown in the samples on the left should be finely adjusted in accordance with sewing processes. Be careful not to excessively increase/ decrease the amount of oil in the hook. (If the amount of oil is too small, the hook will be sized (the hook will be hot).
Page 11: Attaching The Needle
ANITA © 8. Attaching the needle Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. A needle of DBx1 or DPx5 should be used. Select a proper needle size according to the count of thread and the type of material used.
Page 12: Setting The Bobbin Into The Bobbin Case
ANITA © 9. Setting the bobbin into the bobbin case 1. Install the bobbin in the bobbin case so that the thread would direction is clockwise. 2. Pass the thread through thread slit A, B so doing, the thread will pass under the tension spring and come out from notch B.
Page 13: Threading The Machine Head
ANITA © 12. Threading the machine head Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. 13. Winding the bobbin thread 1. Insert the bobbin deep into the bobbin winder spindle ①...
Page 14: Thread Tension
ANITA © 5. To adjust the winding amount of the bobbin thread, loosen the setscrew ④ and move the bobbin winder adjusting plate ⑤ to the direction of A or B. Then, tighten the setscrew ④ . To the direction of A: Decrease;...
Page 15: Thread Take-Up Spring
ANITA © 15. Thread take-up spring 1. Changing the stroke of thread take- up spring 1) Loosen setscrew ②. 2) As you turn tension post ③ clockwise (in direction A), the stroke of the thread take-up spring will be increased. 3) As you turn tension post ③...
Page 16: Adjusting The Thread Take-Up Stroke
ANITA © 16. Adjusting the thread take-up stroke Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. 1. When sewing heavyweight materials, move thread guide ① to the left (in direction A) to increase the length of thread pulled out by the thread take-up.
Page 17: Oil Check And Addition
ANITA © 18. Oil check and addition Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. When the sewing machine running, please check lubricating oil of gear box is sufficient or not. Add sufficient oil in time.
Page 18: Adjusting Of The Pedal
ANITA © 19. Adjusting of the pedal Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. 1. Installing the connecting rod Move pedal ③ to the right or left as illustrated by the arrows so that motor control lever ①...
Page 19: Pedal Operation
ANITA © 20. Pedal operation 1. The pedal is operated in the following four steps: 1) The machine runs at low sewing speed when you lightly depress the front part of the pedal B. 2) The machine runs at high sewing speed when you further depress the front part of the pedal A.
Page 20: Needle-To-Hook Relationship
ANITA © 22. Needle-to-hook relationship 1. Turn the hand- wheel to bright the needle bar down to the lowest point of its stroke, and loosen setscrew ①. 2. Adjusting the needle bar height: 1) While using DB needle, align marker line A with bottom end of needle bar lower bushing ③, then tighten setscrew ①.
Page 21: Change Of Counter Knife And Moving Knife
ANITA © 23. Change of counter knife and moving knife MP02300EN_170818...
Page 22: Adjustment Of Trimming System
ANITA © 24. Adjustment of trimming system Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. 25. Sending to the change Warning: turn DFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine.
Page 23: Height And Tilt Of The Feed Dog
ANITA © 26. Height and tilt of the feed dog Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. Height of the feed dog protrudes from the throat plate surface by 0.75 to 0.85mm (1mm for heavy type), Adjust the height in accordance with the material to be used.
Page 24: Adjusting The Feed Timing
ANITA © 27. Adjusting the feed timing Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. The feed timing can be changed by changing the stop position of feed eccentric cam ①. How to adjust the feed timing 1.
Page 25: Thread Tension Release Releasing Mechanism
ANITA © 28. Thread tension release releasing mechanism By means of the thread tension release releasing mechanism, sewing can be performed without slacking the needle thread tension even when the presser foot is lifted during sewing. (Even when the presser foot is slightly lifted at the thick overlapped section by the knee lifter, this mechanism can prevent the thread tension from being changed.) How to release 1) Remove the cap in the machine head and loosen thread tension release changeover screw ①...
Page 26: Micro-Lifting Mechanism Of The Presser Foot
ANITA © 29. Micro-lifting mechanism of the presser foot Warning: Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the sewing machine. When sewing velvet or the like which is fluffy, slippage of material of damage of material is reduced by using screw ①...
Page 27: Caution When Carrying Or Placing The Sewing Machine
ANITA © 30. Caution when carrying or placing the sewing machine 1. How to carry the sewing machine. Carry the sewing machine with two person as shown in the figure. Caution: Do not hold the hand-wheel. 2. Caution when placing the sewing machine.
Page 29 Manual for motor GF-1107-147 MH ANITA B, s.r.o. Průmyslová 2453/7 680 01 Boskovice Czech Republic tel: +420 516 454 774 +420 516 453 496 fax: +420 516 452 751 e-mail: info@anita.cz...
Page 30 Full automatic integrated sewing series manual V1.9 1. Safety instruction Please read the operation manual and related sewing machinery datasheet carefully before correct use. 1.1 (1) Power voltage and frequence: please refer to motor and control box nameplate. show frame show frame (2) Interference from electromagnetic wave:please keep far away strong magnetic or high radiation environment in order Item Name...
Page 31 Spare Parts List GF-1107-147 MH ANITA B, s.r.o. Průmyslová 2453/7 680 01 Boskovice Czech Republic tel: +420 516 454 774 +420 516 453 496 fax: +420 516 452 751 e-mail: info@anita.cz...
Page 32 ANITA © All rights reserved All rights reserved property of Anita B and protected by copyright. The use of this content without written permission is prohibited. Copyright © Anita B s r.o. (2017) MP02300EN_170818...
Page 33 ANITA © CONTENT 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (1/2) ........4 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (2/2) ........6 2. MAIN SHAFT & THREAD TEKE-UP COVER COMPONENTS ..........8 3. HORIZONTAL FEED & VERTICAL FEED AND HOOK DRIVING SHAFT COMPONENTS (1/2) 10 3.
Page 34: Machine Frame & Miscellaneous Cover Components (1/2)
ANITA © 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (1/2) MP02300EN_170818...
Page 35: Machine Frame & Miscellaneous Cover Components (2/2)
ANITA © 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (1/2) REF. NO PART. NO NAME OF THE PART 20003404 Side plate 10008972 Screw SM3/16"x28 L=10 10022343 Arm Thread Guide 10008972 Screw SM3/16"x28 L=10 20003407 Thread Take- up Lever Cover 10012147 Rubber Plug 10013541 Screw SM11/64"x40 L=12...
Page 37 ANITA © 1. MACHINE FRAME & MISCELLANEOUS COVER COMPONENTS (2/2) REF. NO PART. NO NAME OF THE PART 10012136 Rubber Plug 10012139 Rubber Ring 10012141 Air-discharging 10012867 Thread Tension Guide 10011313 Screw M6x12 10022344 Revers Feed Solenoid Base 10013621 Revers Feed Lever Stopper 10012149 Screw 10008936...
Page 38: Main Shaft & Thread Teke-Up Cover Components
ANITA © 2. MAIN SHAFT & THREAD TEKE-UP COVER COMPONENTS MP02300EN_170818...
Page 39 ANITA © 2. MAIN SHAFT & THREAD TEKE-UP COVER COMPONENTS REF. NO PART. NO NAME OF THE PART 10012613 Coupling 10009187 Screw 10011227 Rubber ring 10012615 Coupling 10038017 Motor 10006157 Screw ASM. 10002436 Screw 20010974 Head wheel ASM. 10012497 Cog belt 10006241 Belt pulley 10025862...
Page 40: Horizontal Feed & Vertical Feed And Hook Driving Shaft Components (1/2)
ANITA © 3. HORIZONTAL FEED & VERTICAL FEED AND HOOK DRIVING SHAFT COMPONENTS (1/2) MP02300EN_170818...
Page 41: Horizontal Feed & Vertical Feed And Hook Driving Shaft Components (2/2)
ANITA © 3. HORIZONTAL FEED & VERTICAL FEED AND HOOK DRIVING SHAFT COMPONENTS (1/2) REF. NO PART. NO NAME OF THE PART 10012490 10012540 Feed bar driving crank 10010074 Screw 10010095 Screw 10012531 Feed bar ASM. 10022849 Feed dog 10010099 Screw 10013006 Shaft sleeve...
Page 43 ANITA © 3. HORIZONTAL FEED & VERTICAL FEED AND HOOK DRIVING SHAFT COMPONENTS (2/2) REF. NO PART. NO NAME OF THE PART 10005740 Feed drive eccentric cam 10010678 Screw 10012462 Gear 10008862 Screw 10012489 Feed driving shaft 10012533 Oil seal 10026364 Bearing 10012501...
Page 44: Hang Lifter & Tension Release Components
ANITA © 4. HANG LIFTER & TENSION RELEASE COMPONENTS MP02300EN_170818...
Page 45 ANITA © 4. HANG LIFTER & TENSION RELEASE COMPONENTS REF. NO PART. NO NAME OF THE PART 10006112 Presser foot ASM. 10010650 Screw 10014141 Bearing support 10013328 Presser bar 10013567 Screw SM11/64"x 40 L=15.8 10011887 Screw SM9/64"x 40 L=4 10013375 Collar 10022349 Presser guide bar bracket...
Page 47 ANITA © 5. THE NEEDLE BAR SWING COMPONENTS REF. NO PART. NO NAME OF THE PART 10022509 Rocking base compl. 10022340 Bushing 10023449 Slide block guide 10003549 Bearing 10014395 Screw M4×14 10023454 Driving link 10022856 Link pin 10022363 Plug 10022354 Screw SM9/64”×...
Page 49 ANITA © 6. FEED ADJUST MECHANISM COMPONENTS REF. NO PART. NO NAME OF THE PART 10013870 10012459 Connecting pin 10013590 Screw 10010092 Screw 10012634 Connecting plate 10012681 Crank 10012629 Shaft sleeve 10012622 Oil seal 10003921 Screw 10012627 Closing ring 10013867 Adjusting shaft 10010095 Screw SM3/16"x 28 L=15.5...
Page 50: Presser Foot Components Of Oil Plate Knee Lift
ANITA © 7. PRESSER FOOT COMPONENTS OF OIL PLATE KNEE LIFT MP02300EN_170818...
Page 51 ANITA © 7. PRESSER FOOT COMPONENTS OF OIL PLATE KNEE LIFT REF. NO PART. NO NAME OF THE PART 10012632 Oil reservoir 10012631 Knee lifter presser rod 10013102 Head Gasket 10002562 Bracket ASM. 10003896 Bracket 10002610 Screw 10002613 Screw 10024632 Connecting Rod ASM.
Page 53 ANITA © 8. BOBBIN WINDER COMPONENTS REF. NO PART. NO NAME OF THE PART 10013875 Bobbin winder ASM. 10008773 Rubber ring 10004380 Screw 10013269 Screw 10011149 Thread cutter 10013064 Bobbin thread tension ASM. 10011158 Screw 10011200 Thread guide plate MP02300EN_170818...
Page 55 ANITA © 9. AUTOMATIC REVERSE FEED COMPONENTS REF. NO PART. NO NAME OF THE PART 10008934 Screw 10038021 Option Switch ASM. 10034506 Electromagnet ASM. 10012142 Screw 10012587 Washer 10012628 Crank Pin 10013538 Screw MP02300EN_170818...
Page 57 ANITA © 10. THREAD STAND COMPONENTS REF. NO PART. NO NAME OF THE PART 10007130 Thread Stand ASM. 10004282 Column Cap 10004293 Column Pipe(Upper) 10003301 Screw M5x14 10003022 Washer 10002953 Nut M5 10004289 Thread Guide Pipe 10004285 Thread Guide Bushing 10004298 Thread Hanger(Upper) 10004286...
Page 59 ANITA © 11. WIPER COMPONENTS REF. NO PART. NO NAME OF THE PART 10034507 Wiper ASM. 10012631 Screw MP02300EN_170818...
Page 60: Thread Trimmer Components (Rotation Knife) (1/2)
ANITA © 12. THREAD TRIMMER COMPONENTS (ROTATION KNIFE) (1/2) MP02300EN_170818...
Page 61: Thread Trimmer Components (Rotation Knife) (2/2)
ANITA © 12. THREAD TRIMMER COMPONENTS (ROTATION KNIFE) (1/2) REF. NO PART. NO NAME OF THE PART 10011422 Screw SM 9/6 4"×40 L = 4 10011421 Fixed Knife 10011497 Screw SM11/64"×40 L=9 10013154 Washer 10011584 Dispart Thread Shuttle 10013333 Screw SM3/1 6 "×3 2L = 1 4 10013024 Trimming Crank 10013013...
Page 63 ANITA © 12. THREAD TRIMMER COMPONENTS (ROTATION KNIFE) (2/2) REF. NO PART. NO NAME OF THE PART 10011605 Screw SM1/4"x28 L=12 10009471 Nut M4 10006131 Solenoid Base 10013046 Solenoid Connecting Shaft 10011845 Washer 10011606 Washer 10006137 Thread Trimmer Solenoid 10013590 Screw SM11/64"x40 L=4 10008834 Spring...
Page 65 ANITA © 13. OIL LUBRICATION COMPONENTS REF. NO PART. NO NAME OF THE PART 10000569 Floater ASM. 10008777 O-ring 10008782 Floateer case 10013048 Pipe stopper 10007806 Oil pipe 10008772 Oil sight window 10008943 Rubber plug 10008780 Oil inlet 10007806 Oil pipe 20007434 Oil filter ASM.
Page 67 ANITA © 14. ACCESSORIE PART COMPONENTS REF. NO PART. NO NAME OF THE PART Accessorie Bag Asm A 10012631 Knee Lifter Presser Rod 10004514 rame Support Bar 10010995 Screw Driver,Middle 10013185 Screw Driver,Small 10005639 Needle Thread Guide ASM 10010994 Screw Driver,Large 10005776 Frame Viinyl Cover Accessorie Bag ASM B...
